XP POWER IHL0205D12 DC-DC Converter
The IHL02 series is a 2W dual output DC to DC converter housed in a compact SIP7 package, featuring bipolar outputs ideal for MOSFET and IGBT drives. It provides high isolation of 5200VDC with a working voltage of 250VAC, supporting both single and dual outputs, and operates efficiently across -40°C to 95°C. With full load capability at 65°C ambient, it includes continuous short circuit protection, making it suitable for industrial and power management applications requiring reliable isolation and versatile voltage conversion.
XP POWER IHL0205D12 DC-DC Converter Specifications:
- Power: 2 Watts
- Isolation Voltage: 5200VDC
- Working Voltage: 250VAC
- Input Voltage Range: 13.5V to 165V
- Output Voltage: 3.3V to 30V (varies by model)
- Output Current: up to 70% load at full power
- Operating Temperature: -40°C to +95°C
- Case Material: Non-conductive black plastic (UL94V-0)
- Dimensions: 0.77 x 0.28 x 0.39 inches (19.5 x 7.2 x 10.0 mm)
- MTBF: 3.3 million hours
- Short Circuit Protection: Continuous, auto recovery
- Efficiency: Up to 80%
- Switching Frequency: 50-100 kHz
- Humidity: 25% to 95% RH, non-condensing
- CMTI: 20 kV/μs

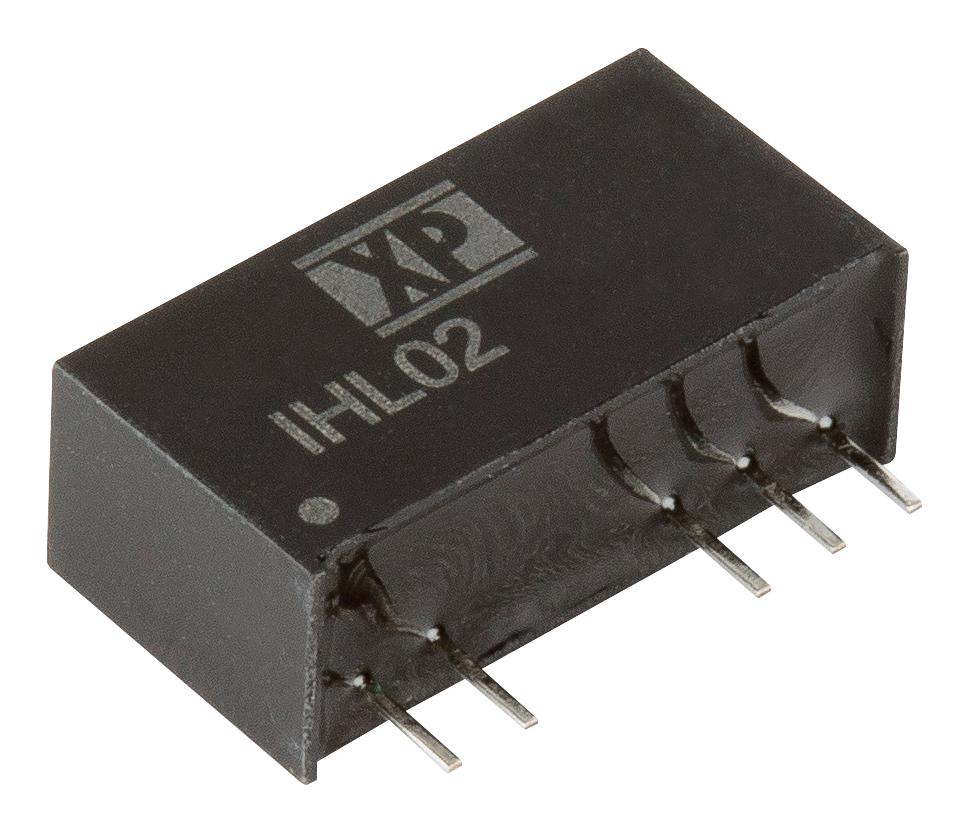

Buy the XP Power Series IHL02 DC-DC Converter: IHL0205D12
Discover the high-performance XP Power IHL0205D12 DC-DC converter, offering 2W power, high isolation of 5200VDC, and bipolar outputs suitable for MOSFET and IGBT drives. With a broad operational temperature range from -40°C to 95°C, compact SIP7 packaging, and full load capability at ambient temperatures up to 65°C, this converter provides reliable power conversion for industrial, automation, and power management applications. Enjoy easy online purchase and get dependable power solutions through our platform.
Buy XP Power IHL0205D12 now and experience unmatched reliability and performance in industrial power management solutions.
Frequently Asked Questions
Where can I buy XP POWER IHL0205D12?
You can click on the BUY or RFQ button to purchase IHL0205D12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IHL0205D12?
You can download the IHL0205D12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IHL0205D12?
XP POWER
