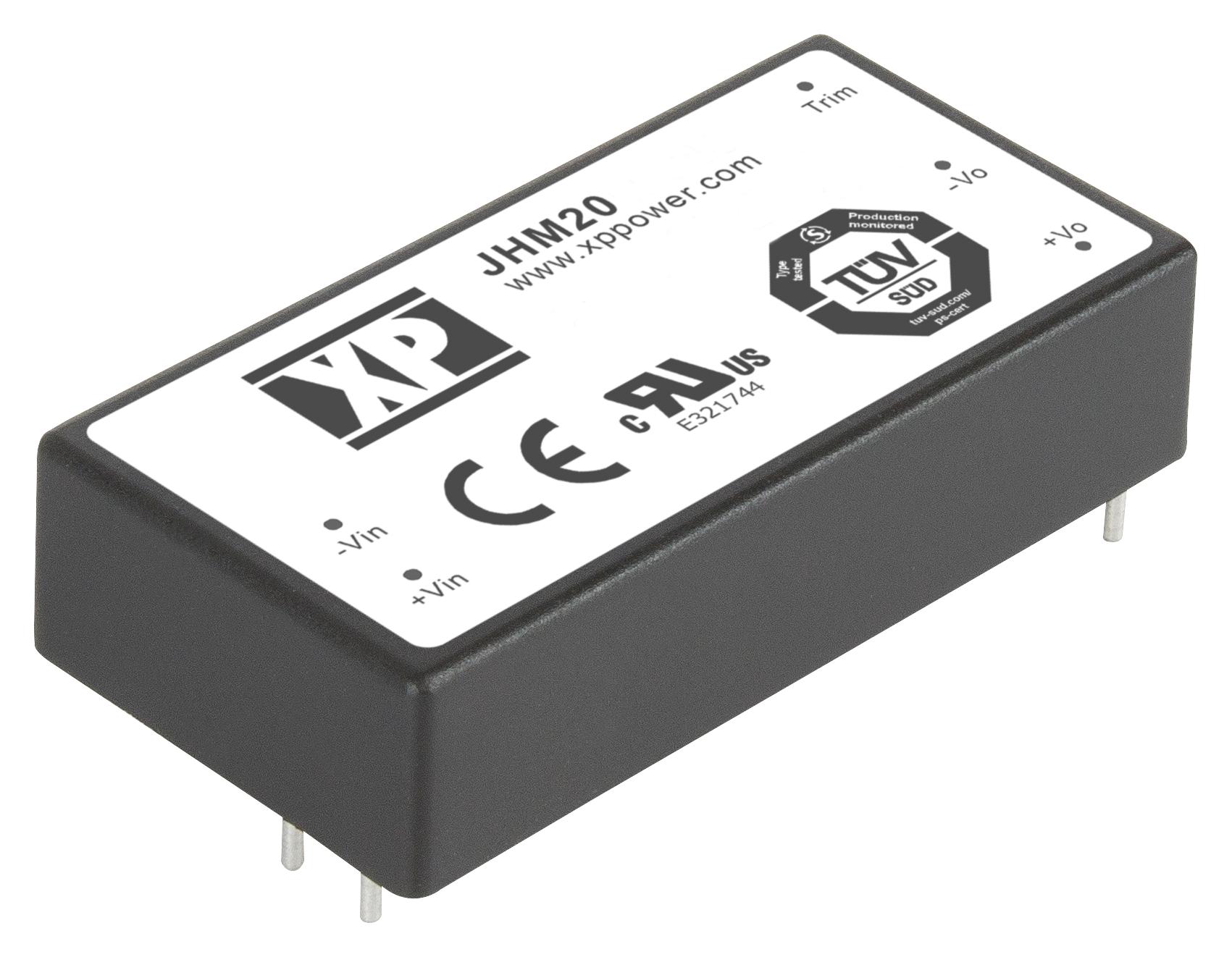

XP POWER JHM2012D12 Medical Power Converter
The JHM20 series DC-DC modules deliver a compact, reliable power solution tailored for medical applications, meeting global safety standards. Featuring regulated single and dual outputs from 5V to 30V DC, with optional trimming of ±10%, these modules support a 2:1 input range and are PCB mountable in a 2" x 1" footprint. They boast reinforced isolation of 4kVAC, a working voltage of 250VAC, and MOPP compliance. Certified to IEC60601-1, they include output voltage trim, short circuit protection, and operate with low patient leakage current of 2.5 microamps, ensuring safe and efficient power management in medical environments.
XP POWER JHM2012D12 Medical Power Converter Specifications:
- Input Voltage Range: 9-36VDC supported, 2:1 range
- Output Voltage: 5V to 30V DC, with ±10% trim
- Output Current: up to 3.5A depending on model
- Efficiency: up to 88%
- Isolation Voltage: 4kVAC, double reinforced
- Working Voltage: 250VAC, 2 x MOPP
- Leakage Current: 2.5 microamps
- Dimensions: 2" x 1" PCB mount footprint (50.8 x 25.4 mm)
- Operating Temperature: -40°C to +80°C, derating at high temps
- Certifications: IEC60601-1 3rd Edition, EN55011 Class A
- Protection Features: Short circuit, overload, overvoltage protections, output voltage trim
- Solder Material: Lead-free, UL94V-0 plastic case, silicone potting
Buy the XP Power JHM20 – Reliable Medical DC-DC Converter for Industrial Applications
Purchase the XP Power JHM20 series medical power converters online today to ensure your medical devices operate safely and reliably. These compact modules provide regulated outputs from 5V to 30V with ±10% trim, reinforced isolation of 4kVAC, and low patient leakage current of 2.5 microamps, ideal for medical environments requiring IEC60601-1 compliance. With certified safety features, high efficiency, and a durable PCB mount design, they guarantee dependable power management, supporting your medical equipment's safety, compliance, and performance. Take advantage of our seamless online purchasing experience today.
Order your XP Power Series JHM20 medical DC-DC converter today and ensure safe, efficient power delivery with robust safety and isolation standards.
