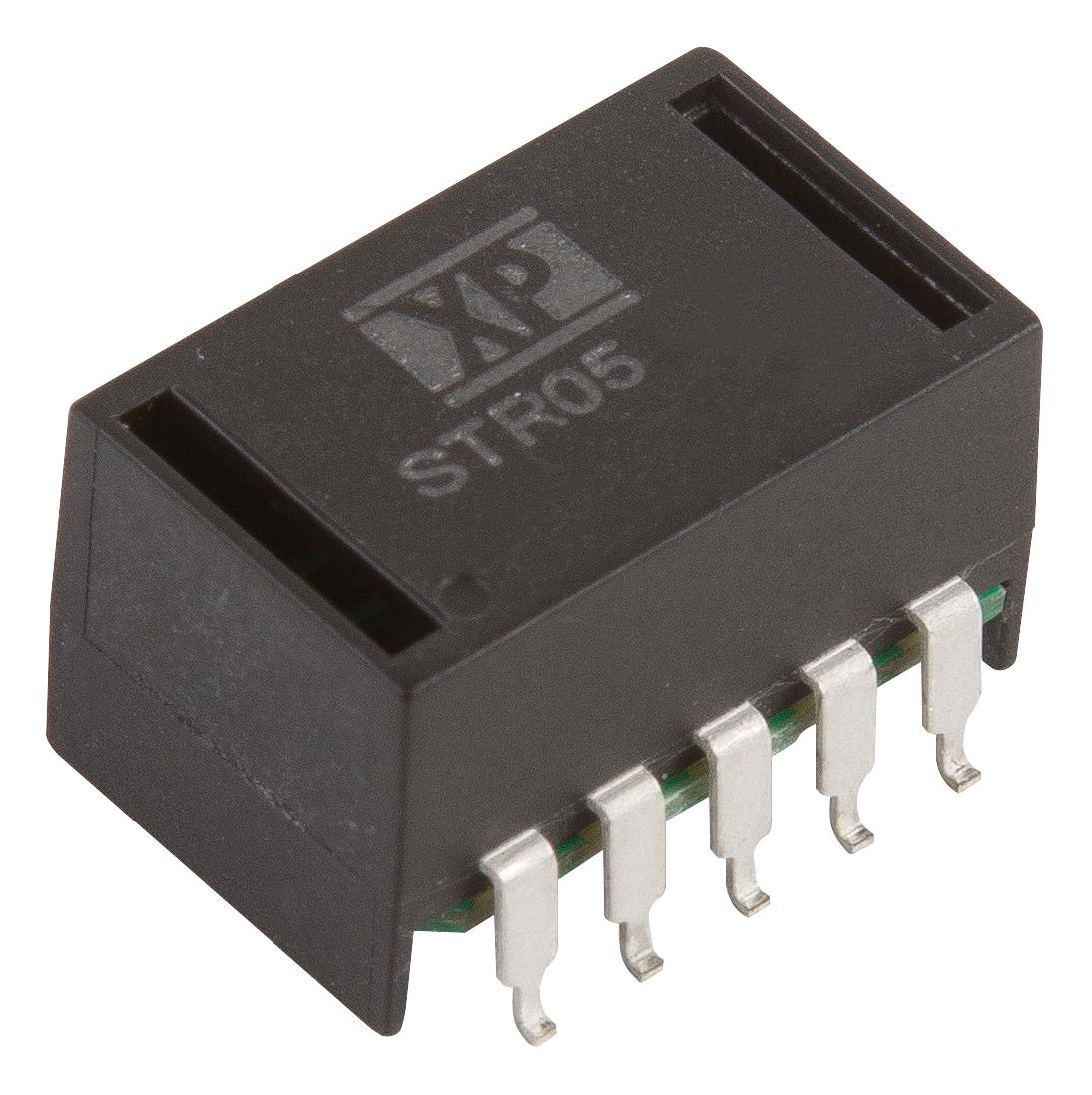

XP POWER STR05S05 Switching Regulator Module
The XP Power STR05S05 is a regulated switching DC-DC converter module delivering a 0.5A current with a fixed 5V output. It features a wide input range from 6.5V to 32V, high efficiency of up to 94%, and automatic recovery short circuit protection. Compact and lightweight, its SMD package measures 15.3mm x 12.35mm x 9.24mm, weighing only 1.7 grams. It supports remote on/off control, functions across temperatures -40°C to 100°C, and offers low ripple and noise, making it ideal for power management and industrial applications.
XP POWER STR05S05 Switching Regulator Module Specifications:
- Input Voltage Range: 6.5V to 32V
- Output Voltage: 5V (fixed)
- Output Current: 0.5A
- Efficiency: 86% to 94%
- Operating Temperature: -40°C to 100°C
- Dimensions: 15.3mm x 12.35mm x 9.24mm
- Weight: 1.7 grams
- Remote On/Off: Yes, logic control
- Ripple & Noise: Low, measured with 0.47 μF ceramic capacitor
- Short Circuit Protection: Continuous, auto recovery
- Thermal Shutdown: 760°C
- Operating Humidity: Non-condensing
- Case Material: UL 94V-0 rated plastic
Buy the Buy XP Power Switching Regulator Part Number STR05S05 Online
Purchase the XP Power switching regulator module online today to ensure reliable power conversion for industrial and power management projects. This module provides a 0.5A output current with high efficiency up to 94%, a wide input voltage range from 6.5V to 32V, and a compact SMD design measuring just 15.3mm x 12.35mm x 9.24mm. It features automatic short circuit recovery, remote on/off control, low ripple and noise, and a temperature range of -40°C to 100°C, making it ideal for demanding electronic and industrial applications.
Get XP Power STR05S05 today—built for precision, efficiency, and long-lasting durability in high-demand power management applications.
Frequently Asked Questions
Where can I buy XP POWER STR05S05?
You can click on the BUY or RFQ button to purchase STR05S05 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part STR05S05?
You can download the STR05S05 datasheet or visit the XP POWER website for support.
Who is the manufacturer of STR05S05?
XP POWER
