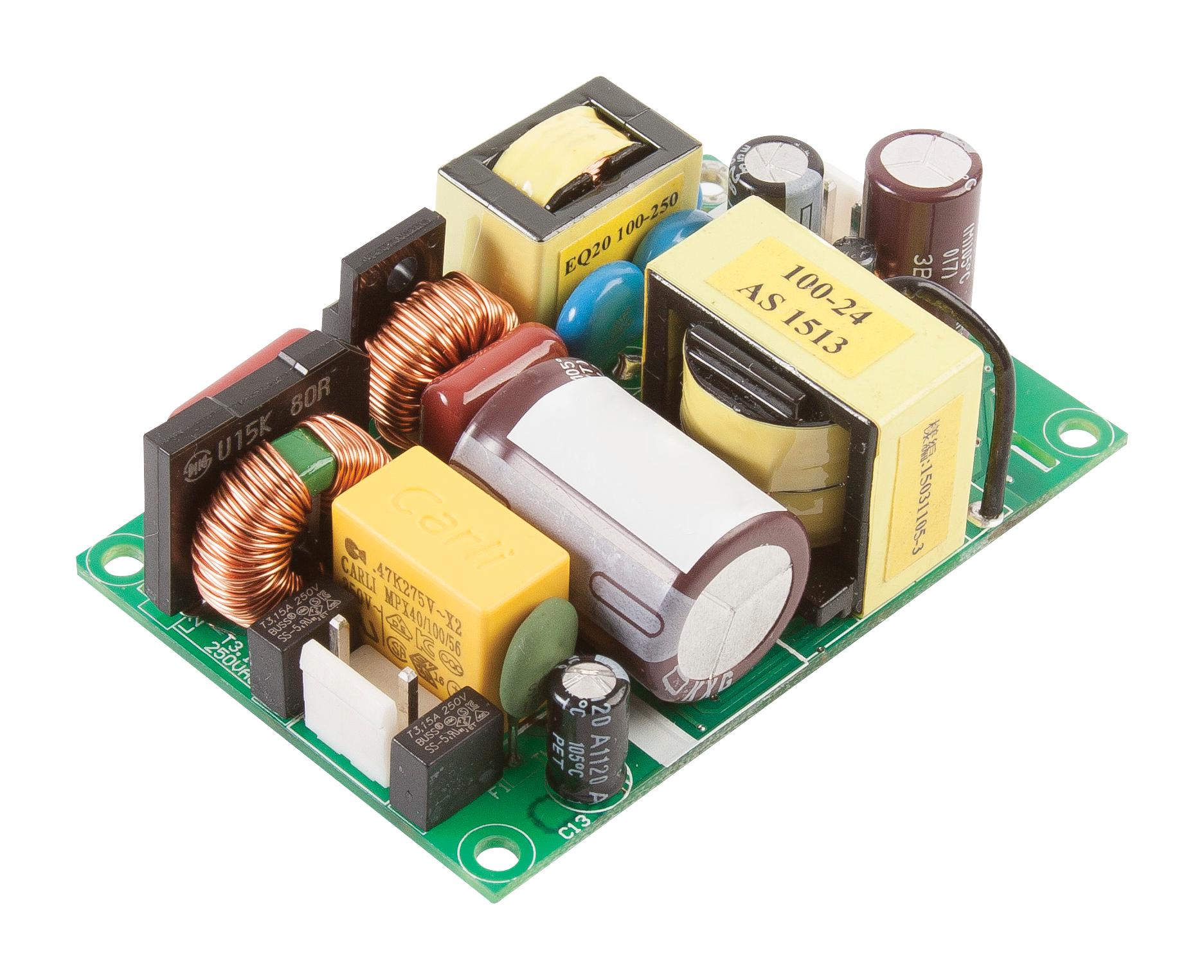

XP POWER ECP130PS48 Power Supply
The ECP130 series is a high-efficiency, medical and industrial approved AC-DC power supply offering a compact and low-profile design. It provides up to 130W of power with forced cooling or 100W with convection cooling, achieving high power densities of 19.7W per cubic inch and 15.1W per cubic inch respectively. The unit features a footprint of 2 inches by 3 inches and a height of just 1.1 inches, making it suitable for space-constrained applications. It includes two fuses and low leakage currents in compliance with medical standards, with the ability to operate safely in an 80°C ambient environment. The power supply meets strict emissions standards (EN55011/22 Class B) and has a no-load power consumption below 0.5W, making it ideal for power management, industrial, and medical applications.
XP POWER ECP130PS48 Power Supply Specifications:
- Power Output: 130W with forced cooling, 100W with convection cooling
- Dimensions: 2" x 3" x 1.1" (50.8mm x 76.2mm x 28.0mm)
- Input Voltage Range: 85-264 VAC, 50/60Hz
- Efficiency: Up to 95%
- No Load Power Consumption: Less than 0.5W
- Operating Temperature: -30°C to +70°C, derating as per graph
- Safety Certifications: UL, CSA, EN60601-1, IEC62368-1, CE, UKCA
- Output Voltage Options: 12V, 15V, 18V, 24V, 28V, 36V, 48V
- Output Power: Up to 130W at full load
- Protection: Overvoltage, Overload, Short Circuit
- Isolation: Input to Output 4000VAC, to Ground 1500VAC
- Cooling: 10 CFM forced cooling required for >100W
- Compliance: EN55011/22 class B emissions, low leakage current
- Reliability: MTBF approximately 680,000 hours
Buy the XP Power ECP130PS48 – Reliable Power Supply for Industrial Applications
Purchase the XP Power ECP130PS48 online today and enjoy reliable, high-efficiency power for your industrial and medical equipment. Designed with space-saving dimensions of 2 by 3 inches and a height of just 1.1 inches, this power supply offers up to 130W of power and operates efficiently with low no-load consumption. Its high safety standards and certifications make it suitable for critical applications. Get fast delivery and expert support—secure your dependable power solution online now and keep your projects running smoothly with minimal downtime.
Order your XP Power Series ECP130PS48 today and ensure your projects benefit from dependable, high-performance power everywhere you need it.
Frequently Asked Questions
Where can I buy XP POWER ECP130PS48?
You can click on the BUY or RFQ button to purchase ECP130PS48 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ECP130PS48?
You can download the ECP130PS48 datasheet or visit the XP POWER website for support.
Who is the manufacturer of ECP130PS48?
XP POWER
