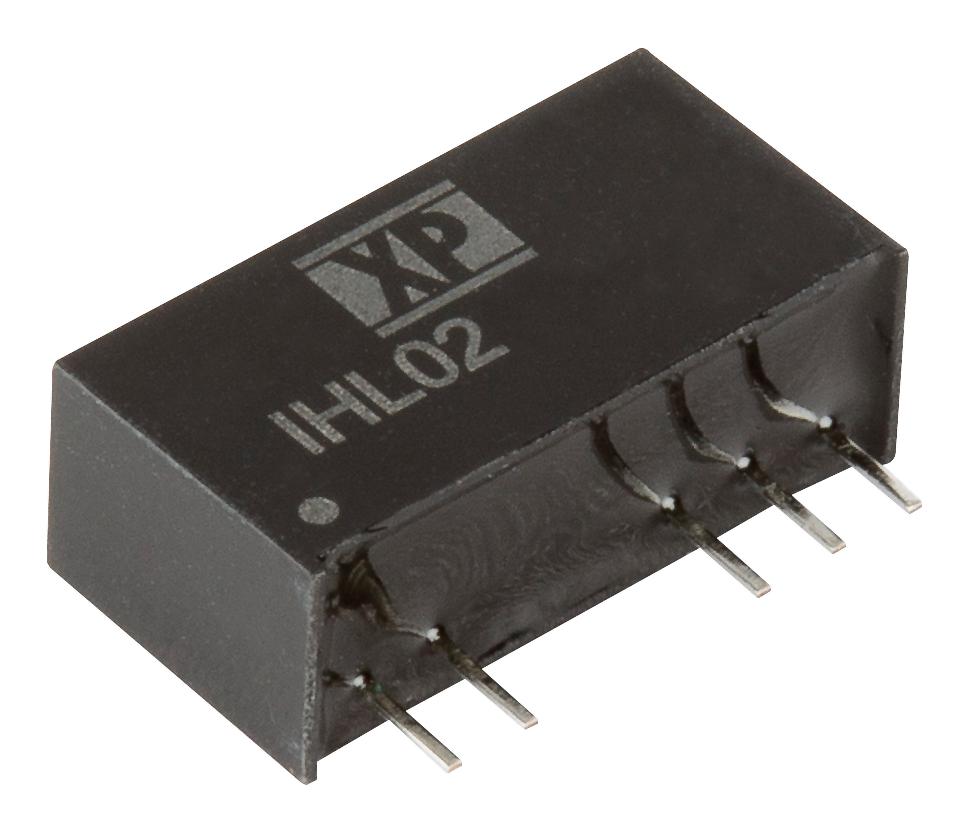

XP POWER IHL0205D1509 High Isolation DC-DC Converter
The IHLO2 Toya series is a high-performance, low-cost DC-DC converter offering 2 watts of power with high isolation of 5.2kVDC and a working voltage rated for 250Vrms & 400VDC. Equipped with bipolar outputs suitable for MOSFET and IGBT drives, it features excellent common mode transient immunity of 20 kV/µs, a compact SIP7 package, and a temperature operation range of -40°C to +95°C. Designed for reliable, high-voltage applications with full load capabilities at 65°C ambient, it provides optimal electrical isolation, low input to output capacitance, and robust safety standards.
XP POWER IHL0205D1509 High Isolation DC-DC Converter Specifications:
- Power Rating: 2 Watts
- Isolation Voltage: 5.2kVDC (functional)
- Input Voltage Range: 13.5V to 165V (typical); 250Vrms & 400VDC working voltage
- Output Voltage Range: 3.3V to 30V (model dependent)
- Output Load Current: up to 72V nominal, specific values vary by model
- Isolation Resistance: 10Ω
- Isolation Capacitance: 7pF
- Switching Frequency: 50 to 100 kHz
- Temperature Range: -40°C to +95°C
- Dimensions: 0.77 x 0.28 x 0.39 inches (19.5 x 7.2 x 10.0 mm)
- Case Material: Non-conductive black plastic (UL94V-0)
- Operating Humidity: 25% to 95% RH, non-condensing
- Efficiency: Up to 80%
- MTBF: 3.3 million hours
- Safety Certifications: CE, UKCA
- Maximum Case Temperature: 100°C
- Derating Linearly from 100% at 65°C to no load at 95°C
Buy the XP Power Series IHLO2 DC-DC Converter: IHL0205D1509
Order the XP Power IHLO2 series high isolation DC-DC converter online today and enjoy outstanding electrical performance with 5.2kVDC insulation, bipolar outputs for MOSFET and IGBT drives, and a broad temperature range. Designed for industrial power supplies and high-voltage applications, this compact converter offers high efficiency, full load operation at ambient conditions up to 65°C, and proven safety standards including CE and UKCA certifications. Perfect for engineers seeking reliable, cost-effective power conversion solutions without compromising safety or performance.
Buy XP Power IHLO2 series DC-DC converter now and experience unmatched reliability, high isolation, and excellent transient immunity for industrial applications.
Frequently Asked Questions
Where can I buy XP POWER IHL0205D1509?
You can click on the BUY or RFQ button to purchase IHL0205D1509 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IHL0205D1509?
You can download the IHL0205D1509 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IHL0205D1509?
XP POWER
