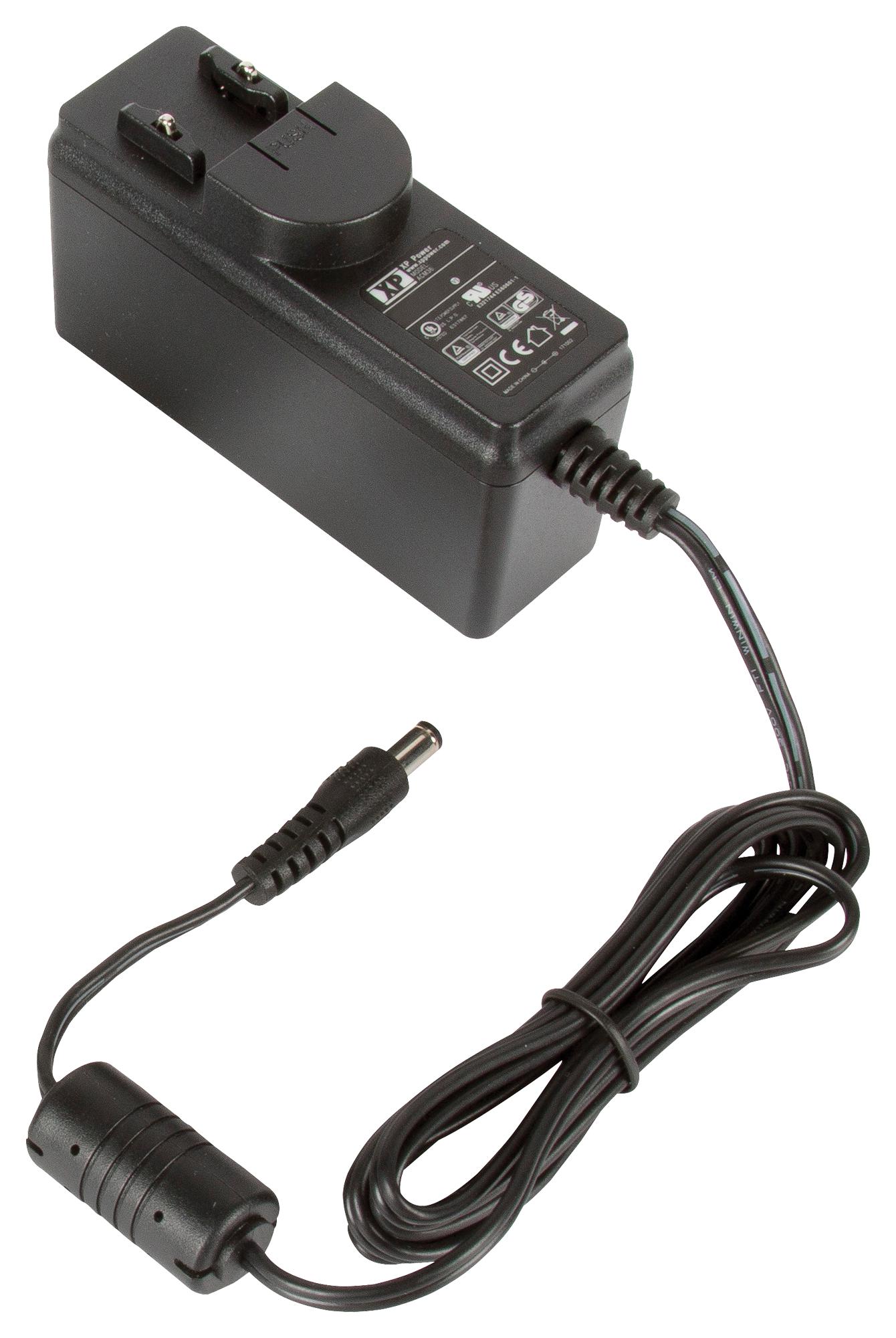

XP POWER ACM36US36 Power Supply Module
The ACM36 series offers 36-watt AC-DC power supplies designed for medical and industrial applications, with energy efficiency Level VI certification and European CoC Tier 2 compliance. These power supplies feature output voltages from 9 V to 36 V, interchangeable mains connectors, and a compact dimension of 3.81 x 1.3 x 2.34 inches. They provide high efficiency, low no-load power consumption, and feature Class II construction for safety. Suitable for sensitive electronics, they include industry approvals and a 3-year warranty ensuring reliable performance in various environments.
XP POWER ACM36US36 Power Supply Module Specifications:
- Output Power: 36W
- Output Voltages: from 9 V to 36 V
- Output Current: 1000 mA to 4000 mA depending on voltage
- Efficiency: up to 89.5%
- Energy Efficiency Level: VI
- Dimensions: 3.81 x 1.3 x 2.34 inches (96.7 x 33.0 x 59.5 mm)
- Input Voltage: 230 VAC ±10%
- Leakage Current: 50 μA at 264 VAC
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -20°C to +85°C
- Operating Humidity: 5% to 90% RH non-condensing
- Protection: Short circuit, overcurrent, and overvoltage protections
- Certifications: UL, EN, CSA, IEC60601-1 Medical Approval
- Switching Frequency: 24 kHz to 70 kHz
- Isolation: 4000 VAC
- Safety Standards: IEC60950-1, IEC60601-1 for medical use
- Compliance: CE, UKCA, RoHS
Buy the XP Power ACM36 – Reliable Power Supply for Industrial Applications
Secure your essential electronics with the XP Power ACM36 series, offering 36W output, multiple voltages, high efficiency, compact design, and secure approvals. Perfect for industrial and medical settings, these power supplies ensure consistent, safe operation. With interchangeable connectors and a 3-year warranty, they deliver dependable performance while minimizing power consumption. Purchase online today to enhance your equipment’s reliability with industry-leading power solutions that are easy to install and built to last, supporting your critical applications seamlessly.
Buy XP Power ACM36 power supplies now and experience unmatched reliability and performance for your industrial and medical electronics.
Frequently Asked Questions
Where can I buy XP POWER ACM36US36?
You can click on the BUY or RFQ button to purchase ACM36US36 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ACM36US36?
You can download the ACM36US36 datasheet or visit the XP POWER website for support.
Who is the manufacturer of ACM36US36?
XP POWER
