XP POWER IHL0224S12 Dual-Output High Isolation DC-DC Converter
The IHL02 series is a 2W dual-output DC-DC converter housed in a 7-pin SIP package. It features bipolar outputs suitable for MOSFET and IGBT drives, with high isolation voltage of 5200VDC and a working voltage of 250VAC. The converter supports both single and dual outputs, operates efficiently over a temperature range of -40°C to 95°C, and provides continuous short-circuit protection. It is ideal for power management and industrial applications, delivering full load performance at an ambient temperature of 65°C.
XP POWER IHL0224S12 Dual-Output High Isolation DC-DC Converter Specifications:
- Power: 2 Watts
- Isolation Voltage: 5200VDC (functional insulation)
- Working Voltage: 250VAC
- Output Power: Single & dual outputs
- Outputs: Bipolar for MOSFET & IGBT drives
- Transient Immunity: 20 kV/μs
- Package: SIP7
- Operating Temperature Range: -40°C to +95°C
- Full Load Ambient Temperature: 65°C
- MTBF: 3.3 million hours
- Dimensions: 0.77 x 0.28 x 0.39 inches (19.5 x 7.2 x 10.0 mm)
- Input Voltage Range: 13.5-165 V
- Efficiency: Approximately 80%
- Short Circuit Protection: Continuous, auto recovery
- Isolation Resistance: 10^12 Ω
- Isolation Capacitance: 7 pF
- Switching Frequency: 50-100 kHz
- Case Material: Non-conductive UL94V-0 plastic
- Solder Material: Phosphor bronze with solder coating
- Environmental Resistance: Humidity 25-95% RH, non-condensing
- Compliance: CE, UKCA
- Weight: 0.006 lbs (2.7 g)

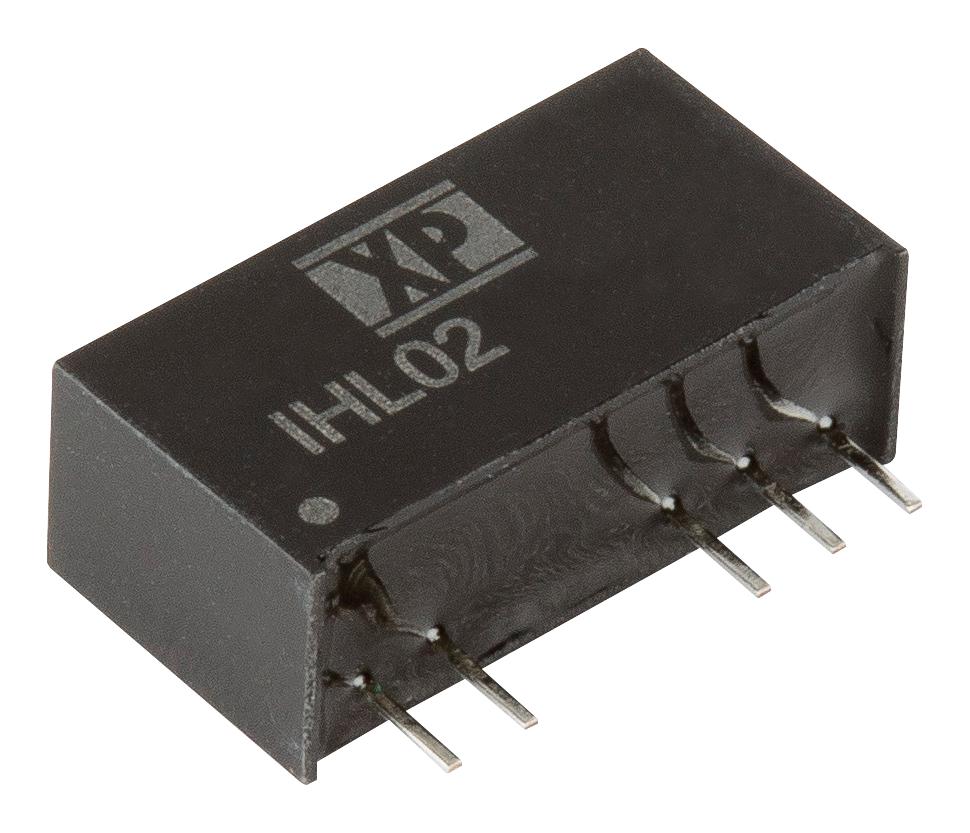

Buy the XP Power IHL0224S – Reliable Power Supply for Industrial Applications
Purchase the XP Power IHL0224S dual-output DC-DC converter online now and ensure reliable power delivery for your industrial projects. With high isolation voltage of 5200VDC, bipolar outputs suitable for MOSFET & IGBT drives, and a broad operating temperature range from -40°C to 95°C, this converter is perfect for demanding industrial environments. Its compact SIP7 package, full load efficiency of about 80%, and automatic short circuit protection guarantee performance and safety. Get yours today for efficient and safe power management.
Order your XP Power IHL0224S dual-output DC-DC converter today and enhance your industrial power management with dependable, high-isolation performance.
Frequently Asked Questions
Where can I buy XP POWER IHL0224S12?
You can click on the BUY or RFQ button to purchase IHL0224S12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IHL0224S12?
You can download the IHL0224S12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IHL0224S12?
XP POWER
