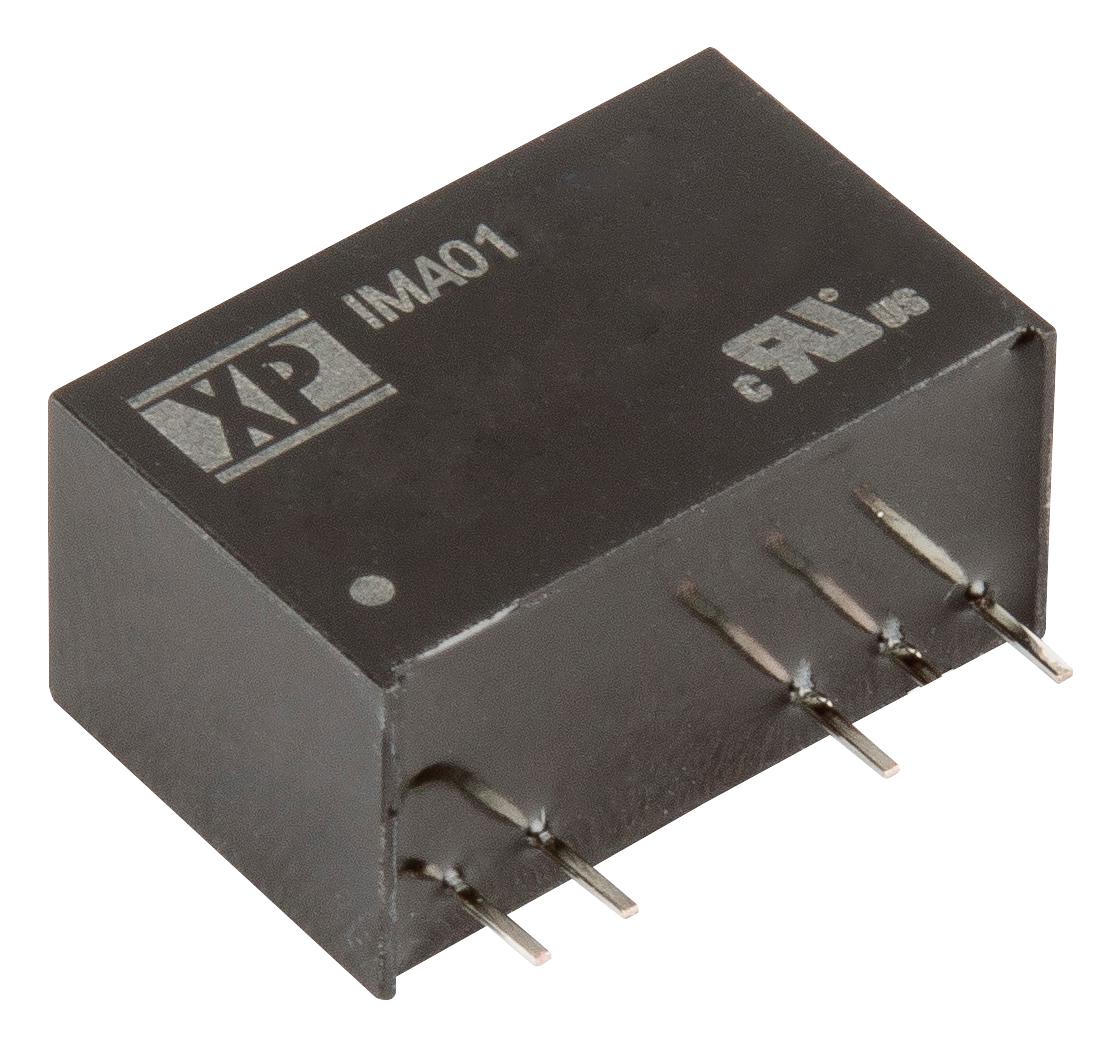

XP POWER IMA0105S09 Medical Power Converter
The IMA01 series is a 1W DC to DC converter available in single and dual output configurations. It features a 7-pin SIP package, making it suitable for medical and industrial applications. This converter offers worldwide medical safety approvals, including UL, ANSI/AAMI ES60601-1, CSA C22.2 No. 60601-1, TUV, EN60601-1, CB, and IEC60601-1. It provides continuous short circuit protection, operates over a temperature range of -40°C to +75°C at full load, and includes 4000VAC isolation with 1 x MOPP at 300VAC. The device has a low patient leakage current of 2µA, making it ideal for medical power management and industrial use.
XP POWER IMA0105S09 Medical Power Converter Specifications:
- Power: 1 Watt
- Input Voltage Range: 10.8-13.2V, 13.5-16.5V, 21.6-26.4V
- Output Voltage: 5V (nominal), 12V (nominal), 15V (nominal), 24V (nominal)
- Efficiency: Typically 75%
- Isolation Voltage: 4000 VAC, 1 x MOPP at 300 VAC
- Operating Temperature: -40°C to +75°C at full load
- Storage Temperature: -40°C to +125°C
- Leakage Current: 2 µA
- Dimensions: 0.77 x 0.36 x 0.44 inches (19.5 x 9.2 x 11.1 mm)
- Package: SIP7
- Safety Certifications: UL, ANSI/AAMI ES60601-1, CSA C22.2 No. 60601-1, TUV, CE, UKCA
- Electrical Characteristics: Input ripple current 20 mA pk-pk, ripple & noise 50 mVp-p, short circuit protection continuous
- Mechanical & Environmental: Humidity 25-95% RH non-condensing, natural convection cooling, case temp +100°C
Buy the XP Power IMA01 – Reliable Medical Power Supply for Industrial Applications
Purchase the XP Power IMA01 series online today—an essential 1W DC-DC converter designed for medical and industrial applications. Featuring a compact SIP7 package, it provides 4000VAC isolation, operating from -40°C to +75°C at full load. Its low patient leakage current of 2µA ensures safety in medical equipment. With worldwide safety approvals including UL, IEC60601-1, and CSA, it guarantees reliable performance. Easy to install and maintain, this converter is ideal for medical devices, industrial power systems, and safety-critical applications demanding high efficiency and durability.
Get XP Power IMA01 today—built for precision, safety, and long-lasting durability in medical and industrial environments.
Frequently Asked Questions
Where can I buy XP POWER IMA0105S09?
You can click on the BUY or RFQ button to purchase IMA0105S09 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IMA0105S09?
You can download the IMA0105S09 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IMA0105S09?
XP POWER
