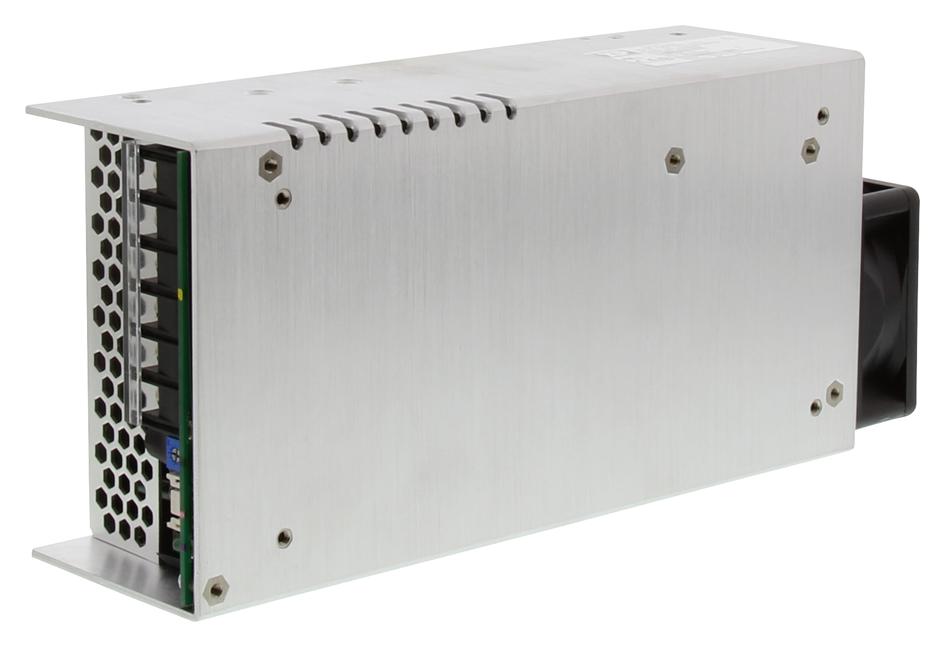

XP POWER SHP650PS28EF Industrial Power Supply
The SHP650 AC-DC power supply offers up to 650W of output power, available in three mechanical package options for versatile industrial applications. It features a main adjustable DC output from 12V to 48V, with auxiliary 12V fan and 5V standby supplies supporting control signals like AC loss detection and remote on/off. Multiple units can be paralleled with current sharing, enhancing higher power delivery. Designed for rugged environments, it includes load-dependent variable speed fans, operates from -40°C to 70°C, and meets SEMI F47 standards. Compact, safe, and energy-efficient, it includes screw terminals, and is protected against overtemperature shutdown for reliable performance.
XP POWER SHP650PS28EF Industrial Power Supply Specifications:
- Output Power: Up to 650 W
- Main Output Voltage: 12-48 VDC, adjustable
- Standby Output: 5 V/0.2 A
- Fan Type: Load-dependent variable speed
- Operation Temperature: -40 °C to +70 °C
- Dimensions: Approximately 8 inches x 4 inches x 2.6 inches (203 mm x 102 mm x 65 mm)
- Protection: Overtemperature shutdown
- EMC Compliance: Conducted Class B
- Safety Approvals: IEC60950 family
- Mechanical Options: End Fan (-EF), Top Fan (-TF), U Channel
- Connections: Screw terminals
- Parallel Operation: Supported with current sharing
- Standards: SEMI F47 compliant
- Construction: Rugged industrial-grade materials
Buy the Buy Brand Name SHP650PS28EF Power Supply Part Number SHP650PS28EF Online
Order the Brand Name SHP650PS28EF today for reliable industrial power delivery. This rugged 650W supply features adjustable voltage from 12V to 48V, a load-dependent variable speed fan, and multiple mechanical options. It supports remote on/off, active current sharing, and features low earth leakage EMC compliance with IEC safety approvals. Designed to operate from -40°C to +70°C, it includes overtemperature protection, screw terminal connections for easy wiring, and supports parallel configurations for higher power needs. Perfect for demanding industrial environments requiring durable, efficient power solutions.
Get Brand Name SHP650PS28EF today—built for precise industrial operation, energy efficiency, and long-lasting durability.
Frequently Asked Questions
Where can I buy XP POWER SHP650PS28EF?
You can click on the BUY or RFQ button to purchase SHP650PS28EF from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part SHP650PS28EF?
You can download the SHP650PS28EF datasheet or visit the XP POWER website for support.
Who is the manufacturer of SHP650PS28EF?
XP POWER
