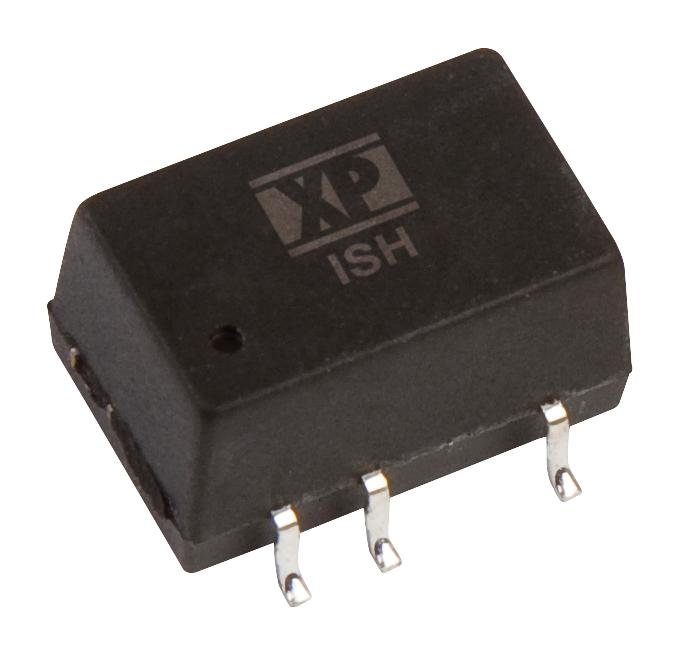

XP POWER ISH0505A Power Converter
The XP Power DC-DC Converter offers a compact, reliable power solution with a 2-watt output, single output design, and SMD package. It features industry-standard pinouts, operating temperatures from -40°C to +105°C, and options for 1500 VDC or 3000 VDC isolation. Suitable for industrial and electronic applications, it provides efficient power conversion, high insulation, and a robust construction. Its versatile footprint and proven durability make it ideal for space-constrained environments requiring dependable operation.
XP POWER ISH0505A Power Converter Specifications:
- Power Output: 2 Watts
- Input Voltage Range: 10.8-13.2 V
- Output Voltage: 5V
- Operating Temperature: -40°C to +105°C
- Isolation Voltage: 1500 VDC, optional 3000 VDC with suffix -H
- Package: SMD, dimensions 0.500 x 0.44 x 0.285 inches (12.7 x 11.2 x 7.25 mm)
- Efficiency: Typical values vary; see datasheet
- Switching Frequency: 700 kHz to 135 kHz
- Isolation Resistance: 10^9 Ω at 500 VDC
- Maximum Capacitive Load: 220 μF
- Weight: 1.5 g
- Humidity: Up to 95% RH non-condensing
- Cooling: Natural convection
- MTBF: Approximately 3500 hours
- Solder Profile: IPC/JEDEC J-STD-020D.1
- Certifications: UL, CSA (implied by standards compliance)
Buy the XP Power ISH0505A – Reliable Power Converter for Industrial Applications
Purchase the XP Power power converter online today to ensure reliable and efficient power conversion in your industrial, automation, or electronic projects. This compact, high-performance unit offers excellent temperature tolerance, high isolation options, and industry-standard pinouts, making it perfect for space-constrained applications requiring durable and consistent power delivery. With a robust design, high efficiency, and certifications, order now to benefit from quick shipping and trustworthy quality tailored for demanding industrial environments.
Get XP Power ISH0505A today—built for precision and long-lasting durability with high reliability for industrial electronics.
Frequently Asked Questions
Where can I buy XP POWER ISH0505A?
You can click on the BUY or RFQ button to purchase ISH0505A from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ISH0505A?
You can download the ISH0505A datasheet or visit the XP POWER website for support.
Who is the manufacturer of ISH0505A?
XP POWER
