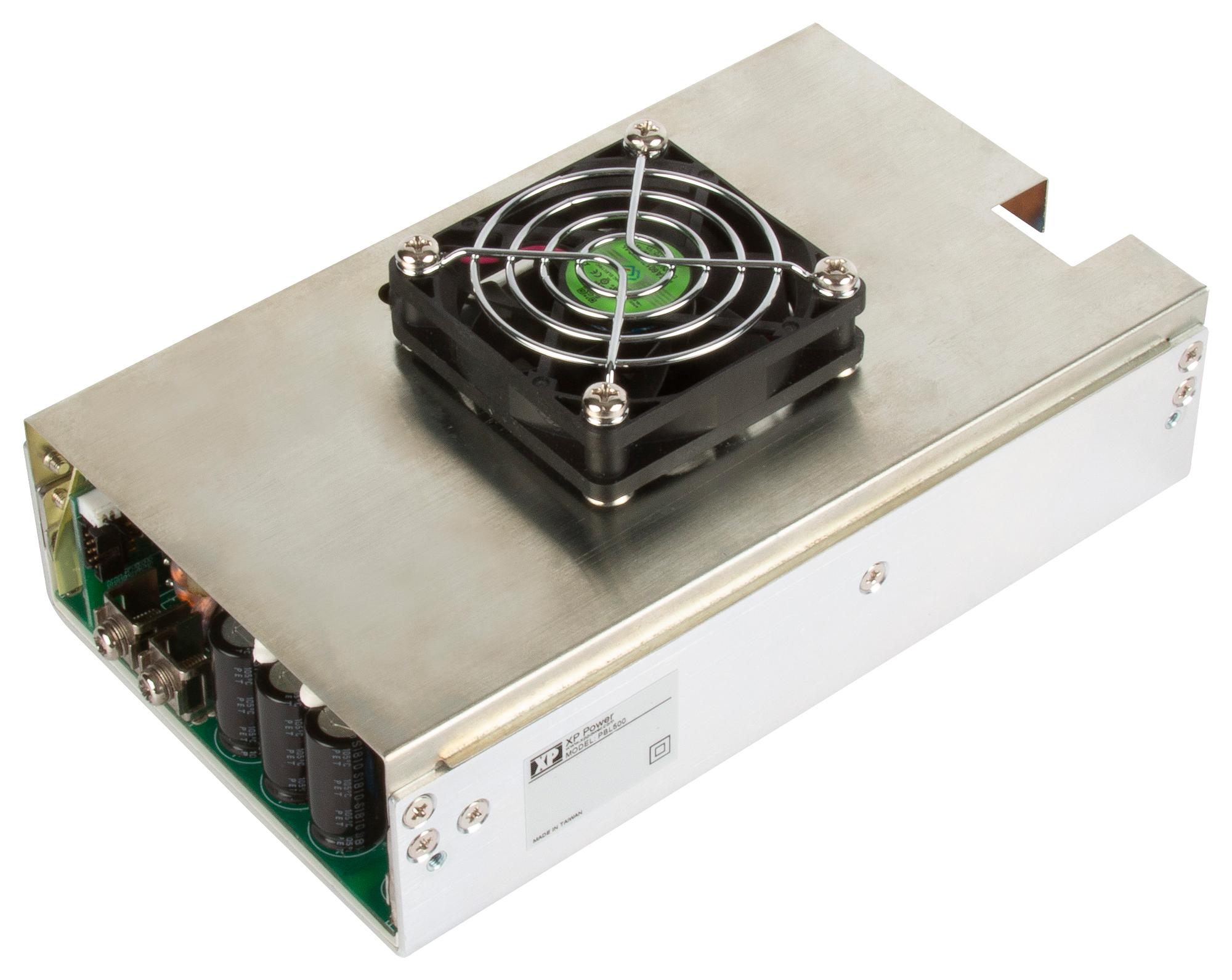

XP POWER PBL500PS24C Power Supply Module
The PBL500 Power Supply series offers reliable 450-500W power output with forced air cooling or 250W convection cooling, suitable for medical and industrial applications. Constructed on a U-channel for durable support and heat sinking, these units feature optional fan assembly for enhanced cooling. They operate at high efficiency, with an input voltage range of 80-264 VAC, and include multiple safety protections like overvoltage, overcurrent, and thermal shutdown. Designed for medical use with BF safety approval, they support operation at altitudes up to 5000 meters, ensuring stability and safety in demanding environments.
XP POWER PBL500PS24C Power Supply Module Specifications:
- Input Voltage: 80-264 VAC
- Input Frequency: 50-63 Hz
- Input Current: 5.2A at 115 VAC, 2.6A at 230 VAC
- Output Power: 450-500W with forced air cooling, 250W convection cooled
- Output Voltage: 12V to 57V depending on model
- Ripple & Noise: 120-570 mV depending on model
- Efficiency: 90% at full load, operating temperature derates from 100% load at 50°C to 50% at 70°C
- Isolation Input to Case: 4000 VAC, Output to Case: 1500 VAC
- Thermal Shutdown: Yes, latching
- Operating Altitude: Up to 5000 meters
- Cooling: Forced air with optional fan, or convection
- Mechanical Dimensions: 7.1 x 4.00 x 1.56 inches for standard, 7.1 x 4.00 x 2.64 inches for covered version
- Safety: Complies with UL60601-1, EN60601-1, CSA standards, Class B conducted & radiated emissions
- Other Features: Power OK, inhibit, remote sense, 5V standby, fan supply, built-in fuse protection
Buy the XP Power Series PBL500 AC-DC Power Supply: PBL500PS24C
Get the XP Power PBL500 power supply online today for dependable 450-500W power output, perfect for medical and industrial applications. This high-efficiency unit features advanced safety protections, a robust U-channel design for heat sinking, and optional fan cooling. It operates reliably at altitudes up to 5000 meters, meeting international safety standards like UL60601-1 and EN60601-1. Order now to ensure your equipment runs efficiently and safely with this reliable, high-performance power source, backed by a 3-year warranty.
Buy XP Power PBL500PS24C now and experience unmatched reliability and performance for demanding medical and industrial applications.
Frequently Asked Questions
Where can I buy XP POWER PBL500PS24C?
You can click on the BUY or RFQ button to purchase PBL500PS24C from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part PBL500PS24C?
You can download the PBL500PS24C datasheet or visit the XP POWER website for support.
Who is the manufacturer of PBL500PS24C?
XP POWER
