XP POWER IMM0524S12 Medical Power Converter
The IMM05 series of DC-DC converters provides a compact 5W power solution with isolation features suitable for medical applications, including BF and CF types. These converters offer regulated single and dual outputs from 3.3VDC to ±15VDC, with a 2:1 input voltage range. They are designed with a SIP9 package, providing 1500VAC isolation and a MOPP rating at 250VAC. Features include remote On/Off control, operation from 20°C to 100°C, and full load capacity up to 60°C. Certified for worldwide medical standards, these converters are ideal for providing power isolation in sensitive medical equipment.
XP POWER IMM0524S12 Medical Power Converter Specifications:
- Power: 5 Watts
- Input Voltage Range: 2:1, from 3.3VDC to ±15VDC (various models)
- Output Voltage: Regulated single & dual, from 3.3VDC to ±15VDC
- Isolation: 1500 VAC at 250 VAC working voltage
- Isolation Resistance: 10^9 ohms
- Isolation Capacitance: nanofarads range (specific values vary by model)
- Operating Temperature: -20°C to +100°C (full load up to 60°C)
- Case Size: 1.02 x 0.36 x 0.49 inches (26.0 x 9.3 x 12.5 mm)
- Package: SIP9
- Remote On/Off Control: Yes
- Full Load Temperature: up to +60°C
- Certifications: Medical certifications for BF & CF applications including worldwide standards
- Efficiency: approximately 82%
- Leakage Current: minimal, suitable for medical safety standards
- Weight: approximately 6.2 grams

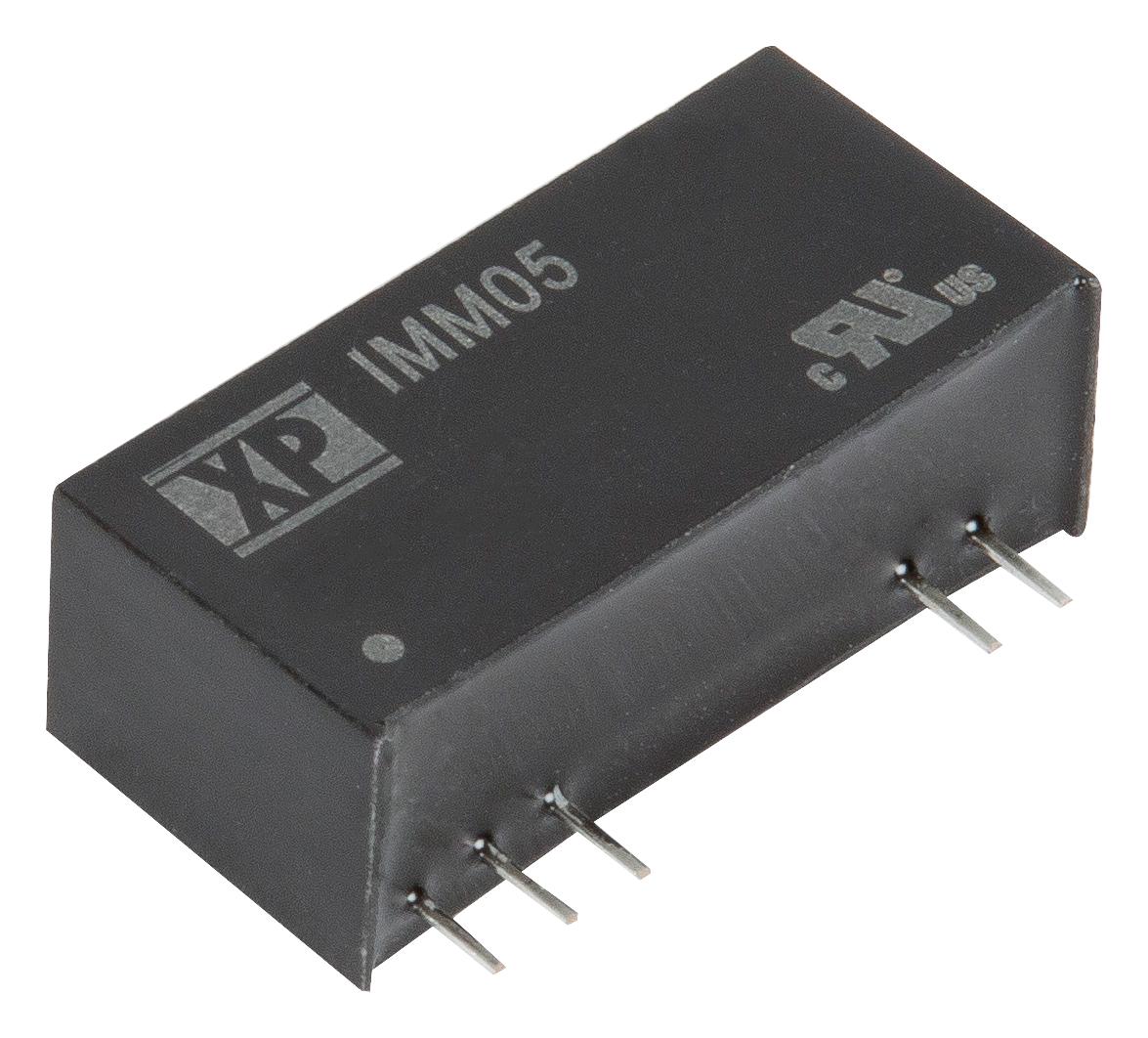

Buy the XP Power Series IMMO5 DC-DC Converter: IMM0524S12
Purchase the XP Power IMM0524S12 medical-grade DC-DC converter online today and ensure your medical devices benefit from high safety, compact design, and reliable power conversion. With 1500VAC isolation, regulated dual outputs from 3.3V to ±15V, remote On/Off control, and compliance with worldwide medical standards, this converter is perfect for sensitive applications requiring precise, safe, and efficient power. Add this essential component to your medical equipment and enjoy fast delivery, excellent support, and peace of mind with top-quality performance.
Buy XP Power IMM0524S12 now and experience unmatched reliability and performance in medical-grade power isolation solutions.
Frequently Asked Questions
Where can I buy XP POWER IMM0524S12?
You can click on the BUY or RFQ button to purchase IMM0524S12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IMM0524S12?
You can download the IMM0524S12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IMM0524S12?
XP POWER
