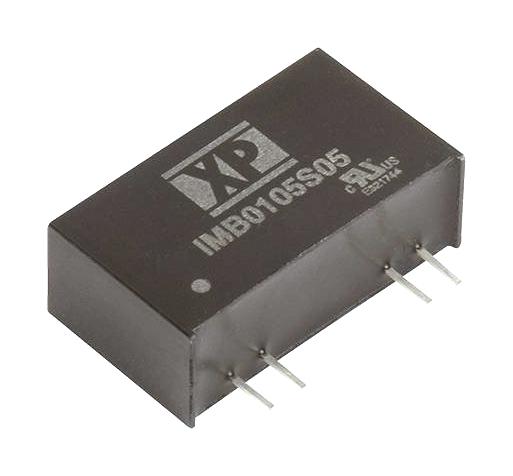

XP POWER IMB0105S05 Medical DC-DC Converter
The IMBO1 series offers a compact, medical-grade 1 Watt DC-DC converter with unregulated single output, designed for medical applications requiring high safety standards. Features include a wide 410% input voltage range, full load operation at +85°C, and medical approvals with reinforced insulation and 2 x MOPP at 300VAC. The SIP7 package provides short circuit protection, low leakage current of 2μA, and excellent electrical isolation of 4000 VAC. Its robust design ensures reliable performance in clinical and portable medical devices.
XP POWER IMB0105S05 Medical DC-DC Converter Specifications:
- Input Voltage Range: 10.8V to 13.2V (12V nominal), 21.6V to 26.4V (24V nominal), 10.8V to 13.2V (5V output)
- Output Voltage: 5V, 15V options
- Output Current: 200mA to 705mA depending on model
- Input Surge Voltage: up to 30V for 24V nominal
- Efficiency: 80%
- Isolation: 4000 VAC, 2 x MOPP at 300VAC
- Medical approvals: IEC60601-1 compliant, reinforced insulation
- Full load operation temperature: up to +85°C, operating temperature range: -40°C to +105°C
- Input Leakage Current: 2μA, Short Circuit Protection: auto recovery
- Case Material: Non-conductive black plastic, UL94V-0 rated
- Dimensions: 0.87 x 0.49 x 0.30 inches (22.0 x 12.5 x 7.5 mm), weight: approx 4.1 g
- Switching Frequency: 12-28 kHz, can enter burst mode at light load
- MTBF: 4.3 million hours
Buy the XP Power Series IMBO1 DC-DC Converter: IMBO105S05
Purchase the XP Power Series IMBO1 1-Watt medical DC-DC converter online today and benefit from its compact design, wide input voltage range, reinforced medical insulation, and low leakage current. Ideal for medical equipment requiring high safety standards, it offers full load operation up to +85°C, robust isolation of 4000 VAC, and auto-recover short circuit protection. Ensure your medical devices are compliant and dependable by ordering this high-quality, compact converter for your critical applications now.
Order your XP Power Series IMBO1 1W medical DC-DC converter today and ensure your medical devices meet the highest safety standards with reliable performance.
Frequently Asked Questions
Where can I buy XP POWER IMB0105S05?
You can click on the BUY or RFQ button to purchase IMB0105S05 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IMB0105S05?
You can download the IMB0105S05 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IMB0105S05?
XP POWER
