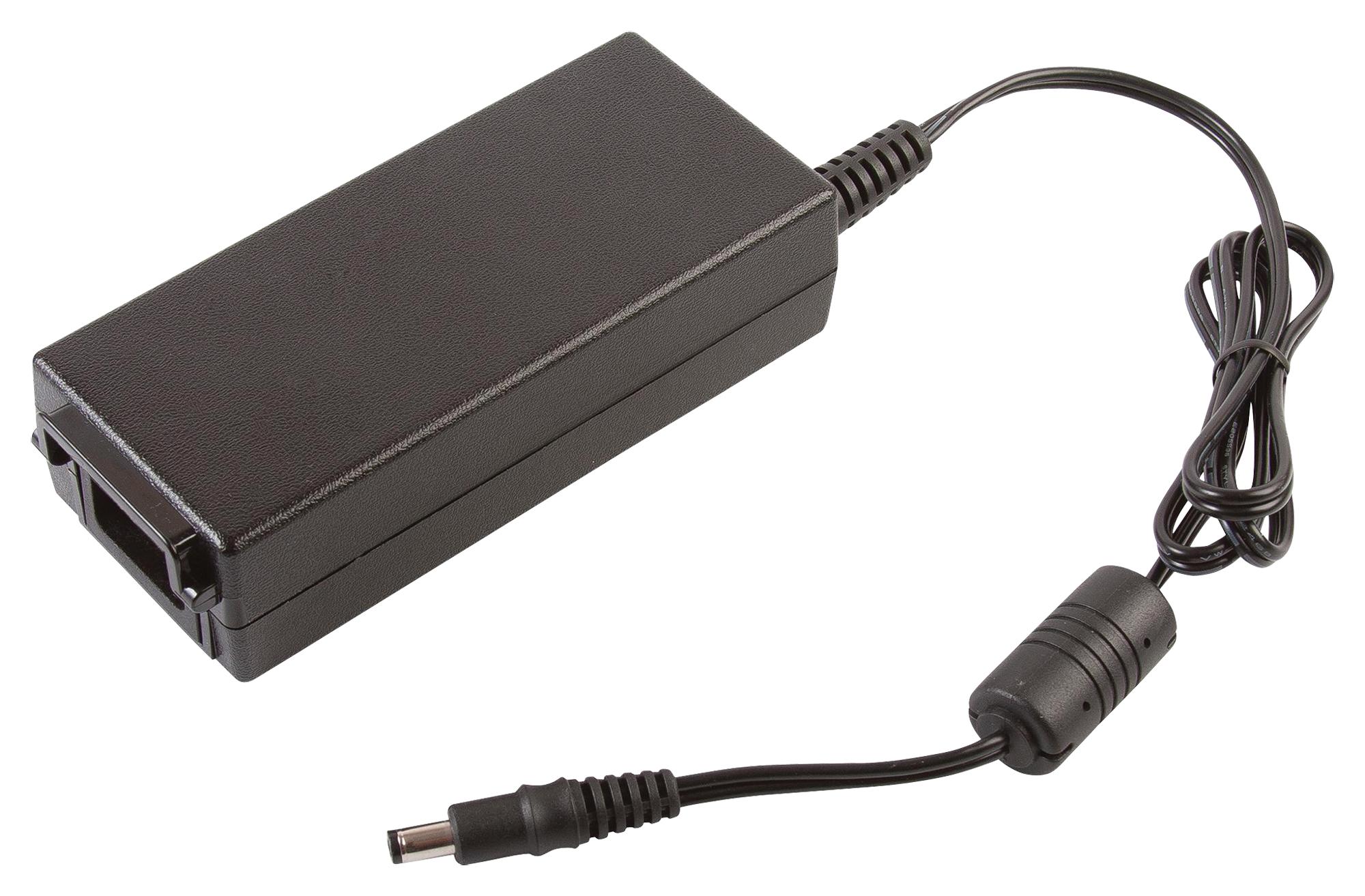

XP POWER ALM65US12 Medical Power Supply
The ALM65 series of medical external power supplies provides 65 watts of reliable power with high efficiency, low standby power, and comprehensive safety approvals. Featuring an IP32 sealed enclosure, it ensures durability and easy cleaning in clinical environments. It supports medical safety standards such as UL, TUV, and IEC 60601-1, with excellent electrical characteristics including 88% typical efficiency, 4000 VAC isolation, and a switching frequency of 65 kHz. Compact and lightweight at approximately 0.68 lbs, it is ideal for medical and IT applications requiring stable, safe power deliverance.
XP POWER ALM65US12 Medical Power Supply Specifications:
- Power Output: 65 Watts
- Efficiency: Typically 88%
- Input Voltage: 90VAC to 264VAC, derates linearly from full load at 90VAC to 80% load at lower voltages
- Isolation: Input to Output 4000 VAC, Input to Ground 1500 VAG (Class I only), Output to Ground 500 VAG
- Switching Frequency: 65 kHz PWM
- Enclosure: Sealed IP32, Dimensions approximately 4.94 x 2.19 x 1.32 inches (125.5 x 55.5 x 33.5 mm)
- Weight: About 0.68 lbs (308 g)
- Temperature Range: 0°C to 60°C operational
- Standby Power: <0.21 W
- Certifications: UL, TUV, cUL, CSA, EN60601-1 (Medical safety standards)
- Earth Leakage Current: Low, suitable for medical environments
- Safety Approvals: UL62368-1, IEC62368-1, EN60601-1, others
- Materials: Fire-retardant plastic, durable sealed design
- Additional Features: Low noise, high reliability, compliant with energy efficiency Level VI
Buy the XP Power Series ALM65 65W Medical Power Supply: ALM65US12
Discover the XP Power ALM65 series of medical power supplies, offering 65W of reliable output in a compact, sealed IP32 enclosure. Designed for healthcare and IT environments, it meets international safety standards such as UL, TUV, and IEC 60601-1. With an efficiency of 88%, low standby power, and high electrical insulation, it ensures safety and durability. Easy to install and maintain, this power supply is perfect for demanding medical applications requiring stable, safe energy delivery. Order online today!
Buy XP Power ALM65US12 medical power supply now and experience unmatched reliability, safety, and efficiency in clinical applications.
Frequently Asked Questions
Where can I buy XP POWER ALM65US12?
You can click on the BUY or RFQ button to purchase ALM65US12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ALM65US12?
You can download the ALM65US12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of ALM65US12?
XP POWER
