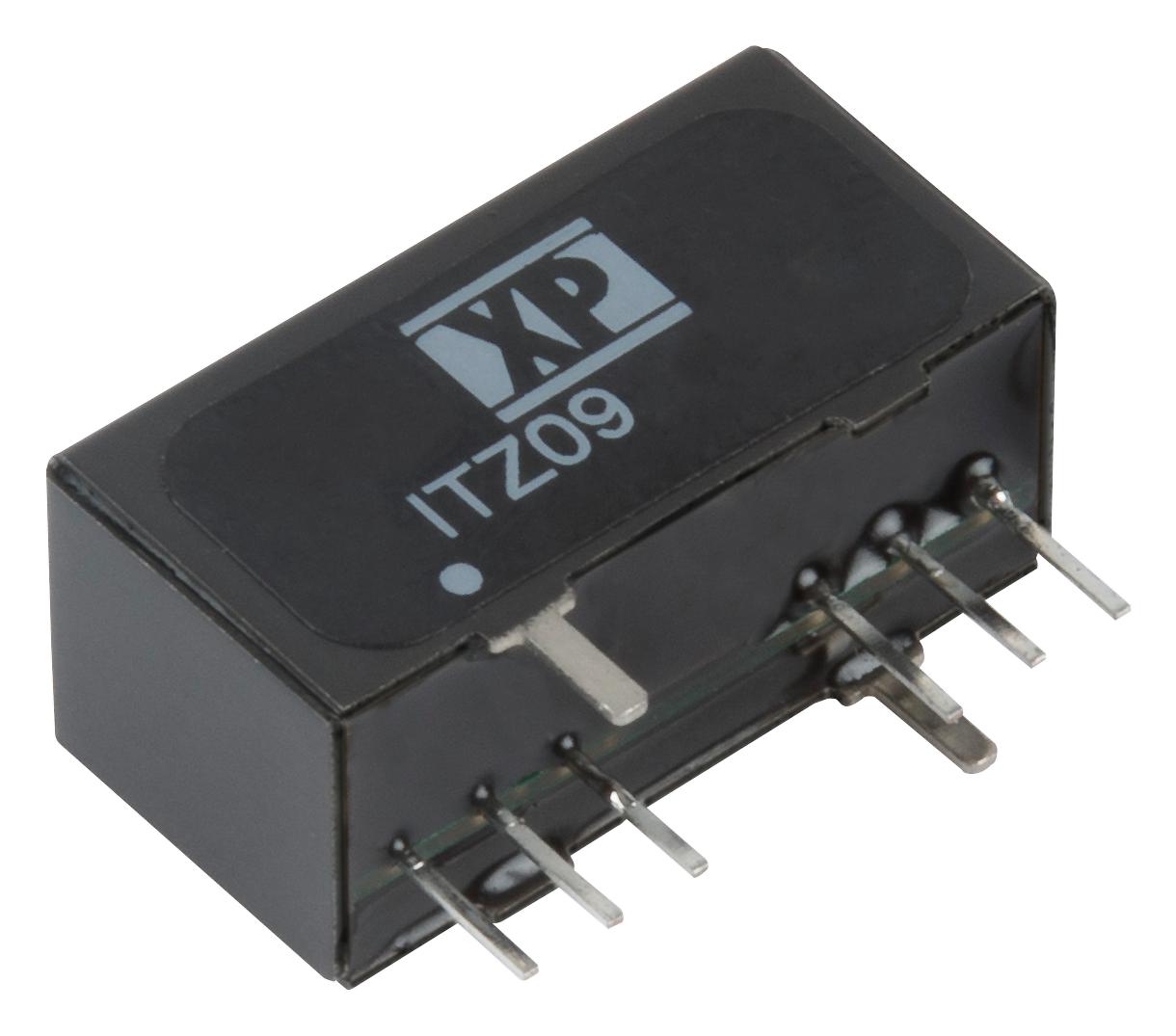

XP POWER ITZ0924S12 DC-DC Converter
The ITZ series features an ultra-wide 4:1 input voltage range suitable for various applications, including 9V to 36VDC for 12V and 24V systems, and 18V to 75VDC for 24V or 48V systems. These compact SIP8 modules offer either single outputs from 3.3V to 24VDC or dual outputs with ±5V, ±12V, or ±15VDC, totaling 18 models. They provide fully regulated outputs with high precision: within ±0.2% line regulation and ±0.5% load regulation from 0% to 100% load, with dual outputs at ±1%. No minimum load is required to maintain regulation. With 1500VDC insulation, a remote on/off control, and protections against surge, overload, and short circuits, these converters are ideal for reliable power management. They are convection cooled, operate from -40°C to 85°C, with derating starting at 50°C, and achieve class A conducted emissions without external components.
XP POWER ITZ0924S12 DC-DC Converter Specifications:
- Input Voltage Range: 9V-36VDC or 18V-75VDC with 4:1 input ratio
- Output Voltage Options: 3.3V, 5V, 12V, 15V, 24V, ±5V, ±12V, ±15V
- Output Power: 9 Watts
- Isolation: 1500VDC
- Regulation: ±0.2% line, ±0.5% load; dual outputs ±1%
- Input Filter: Through inductor and capacitor, maximum surge 700V
- Efficiency: Up to 88%
- Operating Temperature: -40°C to 85°C with derating at 50°C
- Humidity: 5% RH to non-condensing
- Cooling Method: Natural convection
- Safety & Compliance: Conducted and radiated emissions Class A, ESD immunity 26/28 KV, surge immunity 22 KV
- Features: No minimum load, remote on/off control, short circuit protection
- Dimensions: 0.86 x 0.38 x 0.44 inches, approximate weight 0.013 lbs
Buy the XP Power Series ITZ DC-DC Converter: ITZ0924S12
Purchase the XP Power ITZ0924S12 now online to enjoy a reliable, efficient power conversion solution ideal for industrial and embedded applications. With a compact SIP8 package, this 9-watt converter features an ultra-wide input range of 18V to 75VDC, fully regulated outputs, and 1500VDC isolation for safe operation. Its high efficiency, operating from -40°C to 85°C, ensures consistent performance across environments. Equipped with remote on/off, short circuit protection, and Class A emissions compliance, this converter is perfect for reliable power management in demanding systems. Buy now for immediate deployment and peace of mind.
Buy XP Power ITZ0924S12 now and experience unmatched reliability and performance in compact power conversion solutions.
Frequently Asked Questions
Where can I buy XP POWER ITZ0924S12?
You can click on the BUY or RFQ button to purchase ITZ0924S12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ITZ0924S12?
You can download the ITZ0924S12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of ITZ0924S12?
XP POWER
