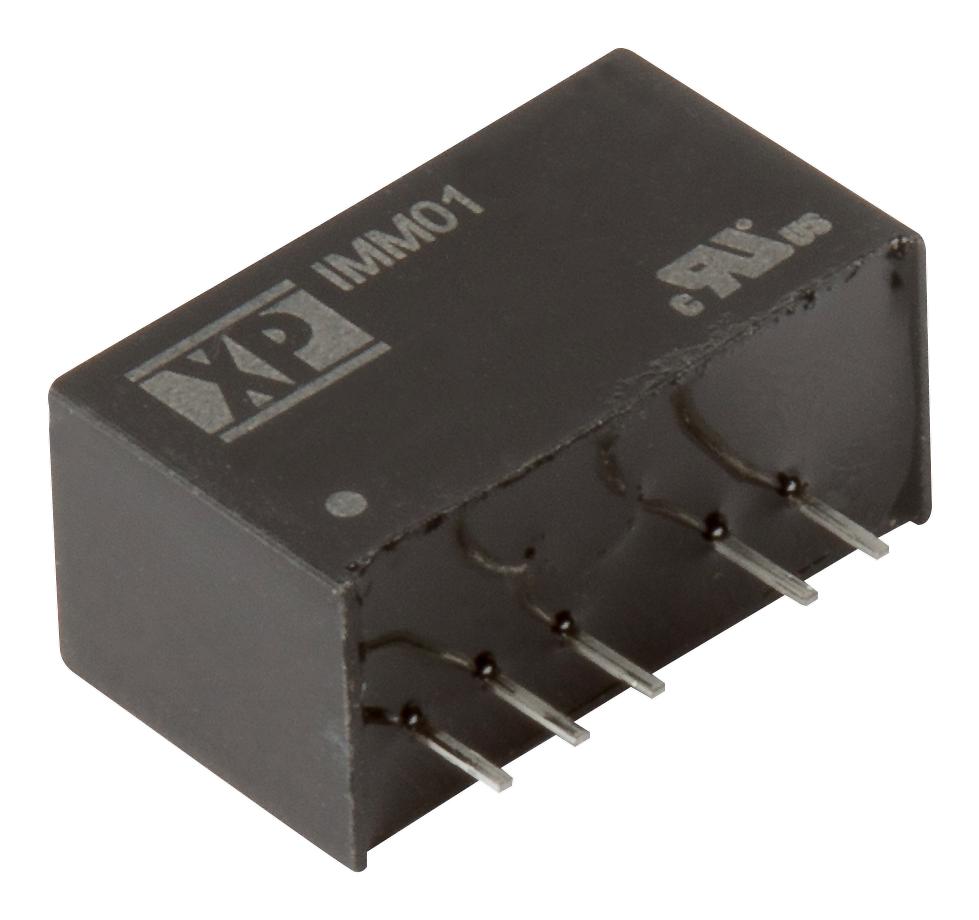

XP POWER IMM0112S05 Medical Power Converter
The IMM01 series is a 1W DC-DC converter with single and dual outputs housed in a compact SIP7 package, suitable for medical and industrial applications. It features worldwide medical approvals including UL, EN60601-1, and CSA, and offers continuous fold-back mode short circuit protection with auto recovery. It exhibits a low patient leakage current of 2 µA, operates from -20°C to 100°C with full load at 60°C, and provides 1500VAC isolation with 1 MOPP. Its robust design makes it ideal for power management in demanding environments.
XP POWER IMM0112S05 Medical Power Converter Specifications:
- Power: 1 Watt
- Input Voltage Range: 3V3, 5V, 12V, 15V, 45-90V
- Output Voltage: 3.3V, 5V, 12V, 15V, 2.3V, 2.5V
- Output Current: up to 337 mA (varies by model)
- Isolation: 1500 VAC, 1 MOPP
- Operating Temperature: -20°C to +100°C
- Full load at 60°C ambient
- Dimensions: 0.76 x 0.36 x 0.44 inches (19.5 x 9.2 x 11.1 mm)
- Leakage Current: 2 μA
- Short Circuit Protection: Fold-back mode with auto recovery
- MTBF: 1 million hours
- Certifications: UL, EN60601-1, CSA, CB, IEC60601
- Switching Frequency: 175 kHz typical, up to 7 MHz
- Isolation Resistance: 10 MΩ
- Isolation Capacitance: 27 pF
- Weight: 3.6 grams
- Humidity: Non-condensing
Buy the XP Power IMM0112S05 – Reliable Medical DC-DC Converter for Industrial Applications
Discover the XP Power IMM0112S05 medical-grade DC-DC converter, delivering 1W of reliable power with medical certifications, 1500VAC isolation, and a wide temperature range. Perfect for medical devices, industrial equipment, and power management systems requiring high performance, low leakage current of 2 μA, and robust protection features. Easy to order online for quick integration into your applications. Ensure top-level safety, efficiency, and durability with this compact, certified power module designed for critical healthcare and industrial environments.
Order your XP Power IMM0112S05 series medical-grade DC-DC converter today and ensure your projects benefit from dependable, high-quality power solutions.
Frequently Asked Questions
Where can I buy XP POWER IMM0112S05?
You can click on the BUY or RFQ button to purchase IMM0112S05 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IMM0112S05?
You can download the IMM0112S05 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IMM0112S05?
XP POWER
