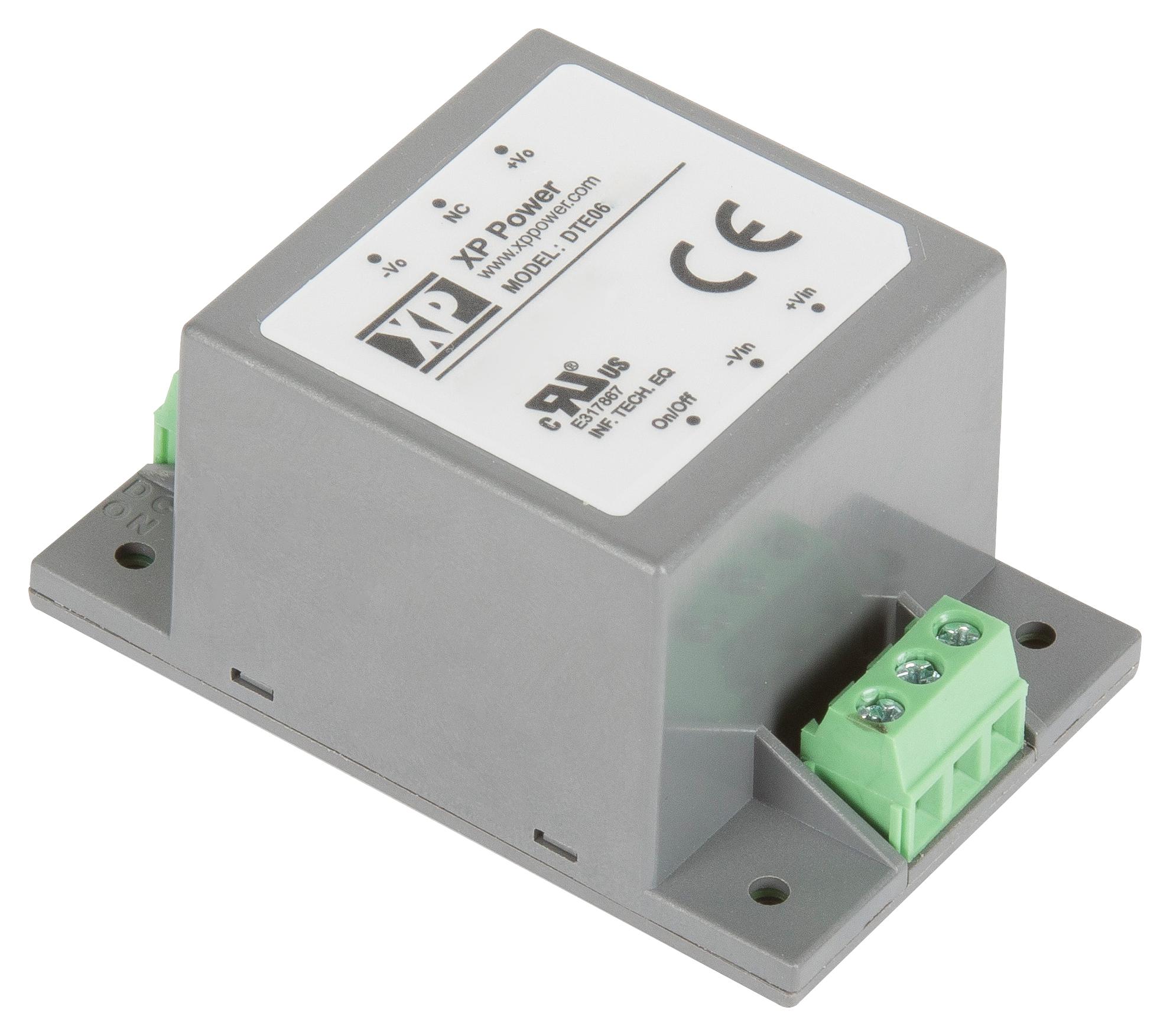

XP POWER DTE0624S24 DC-DC Converter
The DTE06 series consists of encapsulated 6W DC to DC converters equipped with screw terminals for easy wiring. They feature an LED indicator for power status and include a remote On/Off control; when disabled, standby current drops to only 2.5mA. These converters provide 3kVDC input/output isolation, ensuring excellent separation between supply and load. They are fully protected against input undervoltage, short circuits, and overload conditions. Designed with durability and reliability in mind, they operate across a wide temperature range from -40°C to +105°C, with full power available up to 80°C. The modules are compliant with IEC/UL/cUL 62368-1 safety standards, meet EN55032 Class A EMI requirements without external components, and have an MTBF exceeding 4 million hours. Dimensions are 53.0 x 34.0 x 26.5 mm.
XP POWER DTE0624S24 DC-DC Converter Specifications:
- Power: 6 Watts
- Input Voltage Range: 5.1V to 48V DC
- Output Voltage Options: 5.1V, 12V, 15V, 24V, 48V
- Output Current Range: up to 1.20A depending on model
- Efficiency: Up to 85%
- Isolation: 3kVDC input/output
- Operating Temperature: -40°C to +105°C, full power up to 80°C
- Protection: Input undervoltage, short circuit, overload
- Dimensions: 53.0 x 34.0 x 26.5 mm
- Certifications: IEC/UL/cUL 62368-1, EN55032 Class A
- MTBF: >4 million hours
- Remote On/Off: Yes, with standby current of 2.5mA
- Connection: Screw terminals
- Enclosure: Fully encapsulated chassis
- Additional: Optional DIN rail mounting, LED power indicator
Buy the Buy XP Power DTEO6 Series DTE0624S24 Power Converter Part Number DTE0624S24 Online
Purchase the XP Power DTEO6 Series DC-DC converter online today for your industrial and commercial applications. Featuring a rugged, fully encapsulated design, these converters provide 6W of power with high efficiency up to 85%, support a wide input voltage range from 5.1V to 48V, and offer 3kVDC isolation. Equipped with screw terminals, remote On/Off, and LED indicators, they ensure easy wiring and operation across a temperature range of -40°C to +105°C. Safe, reliable, and compliant with IEC/UL standards, these modules are perfect for demanding environments. Order now for a dependable power supply solution.
Order your XP Power DTEO6 Series DTE0624S24 compact power converter today and ensure reliable, efficient power conversion for your industrial projects.
