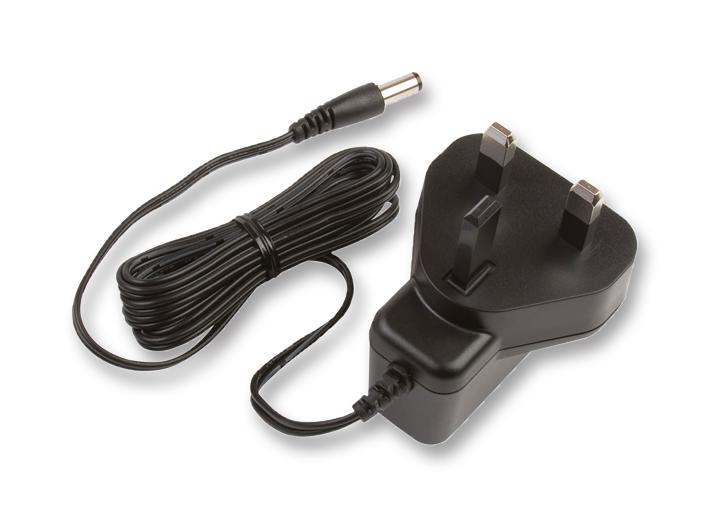

XP POWER VEL18US090UKJA AC-DC Power Supply
The VEL18US090UKJA is a compact and efficient AC-DC power supply designed for low power applications up to 18 Watts. It complies with Energy Efficiency Level VI standards, ensuring high active mode efficiency and minimal no-load power consumption. Suitable for a variety of devices requiring output voltages from 9 V to 24 V, it features a universal input voltage range of 90-264 VAC, a quick startup delay of 4 seconds, and robust safety certifications. Its small form factor and reliable performance make it ideal for cost-sensitive industrial and consumer electronic products.
XP POWER VEL18US090UKJA AC-DC Power Supply Specifications:
- Input Voltage: 90-264 VAC
- Input Frequency: 50/60 Hz
- Input Current: 0.3 A at 100 VAC
- Inrush Current: 60 A at cold start
- Efficiency: 85% at 25-100% load
- Output Power: 18 W
- Output Voltages: 9 V to 24 V (models vary)
- Output Current: Up to 2 A depending on model
- Total Regulation: 5%
- Start Up Delay: 4 seconds
- Hold Up Time: 8 ms at full load
- Isolation: 3000 VAC input to output
- Operating Temperature: 0°C to +60°C
- Operating Humidity: 3% to 95% RH
- Switching Frequency: 24-70 kHz
- Dimensions: 90 x 34 x 47.5 mm (US) or 90 x 34 x 57.57 mm (EU)
- Safety Approvals: UL, TUV, CB, China CCC
- Certifications: EN55022 Level B, EN61000-3-2, EN61000-4
Buy the XP Power Series AC-DC Power Supply: VEL18US090UKJA
Enhance your electronic device with the XP Power VEL18US090UKJA, a reliable 18W power supply that offers high efficiency, low noise, and comprehensive safety certifications. Its universal input voltage range ensures versatility, while a compact design makes it ideal for tight spaces. Suitable for low power industrial, medical, and consumer electronics, this power adapter delivers consistent voltage regulation, fast startup, and excellent durability. Purchase online today for dependable power performance that meets industry standards and eco-friendly criteria.
Buy XP Power VEL18US090UKJA now and experience unmatched reliability and performance in low power applications.
Frequently Asked Questions
Where can I buy XP POWER VEL18US090UKJA?
You can click on the BUY or RFQ button to purchase VEL18US090UKJA from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part VEL18US090UKJA?
You can download the VEL18US090UKJA datasheet or visit the XP POWER website for support.
Who is the manufacturer of VEL18US090UKJA?
XP POWER
