XP POWER IMM0524S3V3 Medical DC-DC Converter
The IMM05 series of DC-DC converters provides an ultra-compact 5W power solution with galvanic isolation between input and output, ideal for medical devices requiring BF and CF classifications. They support regulated single and dual outputs from 3.3VDC to ±15VDC, feature a 2:1 input voltage range, and are certified for worldwide medical standards including UL and IEC. Encased in a SIP9 package, they offer 1500VAC isolation, 1 MOPP at 250VAC, remote on/off, operate from -20°C to +100°C, and perform at full load up to 60°C with a 3-year warranty.
XP POWER IMM0524S3V3 Medical DC-DC Converter Specifications:
- Power: 5 Watts
- Input Voltage Range: 4.5-9.0V, 9-18V, 18-36V, 33V, 50V, 72V, 120V
- Output Voltage: 3.3V, 5V, 12V, 15V, -12V, -15V, +15V
- Output Current: up to 7.0A depending on model
- Isolation: 1500 VAC
- Operating Temperature: -20°C to +100°C
- Full Load Temperature: Up to 60°C
- Package: SIP9
- Dimensions: 1.02 x 0.36 x 0.49 inches (26.0 x 9.3 x 12.5 mm)
- Remote On/Off: Yes (pin controlled)
- Certification: UL, IEC 60601-1, CSA, EN60601-1
- Protection: Short Circuit, Overload (140%), Auto recovery
- Reliability: 630K hours TmBFT (Mil-HDBk-217F)
- Warranty: 3 Years

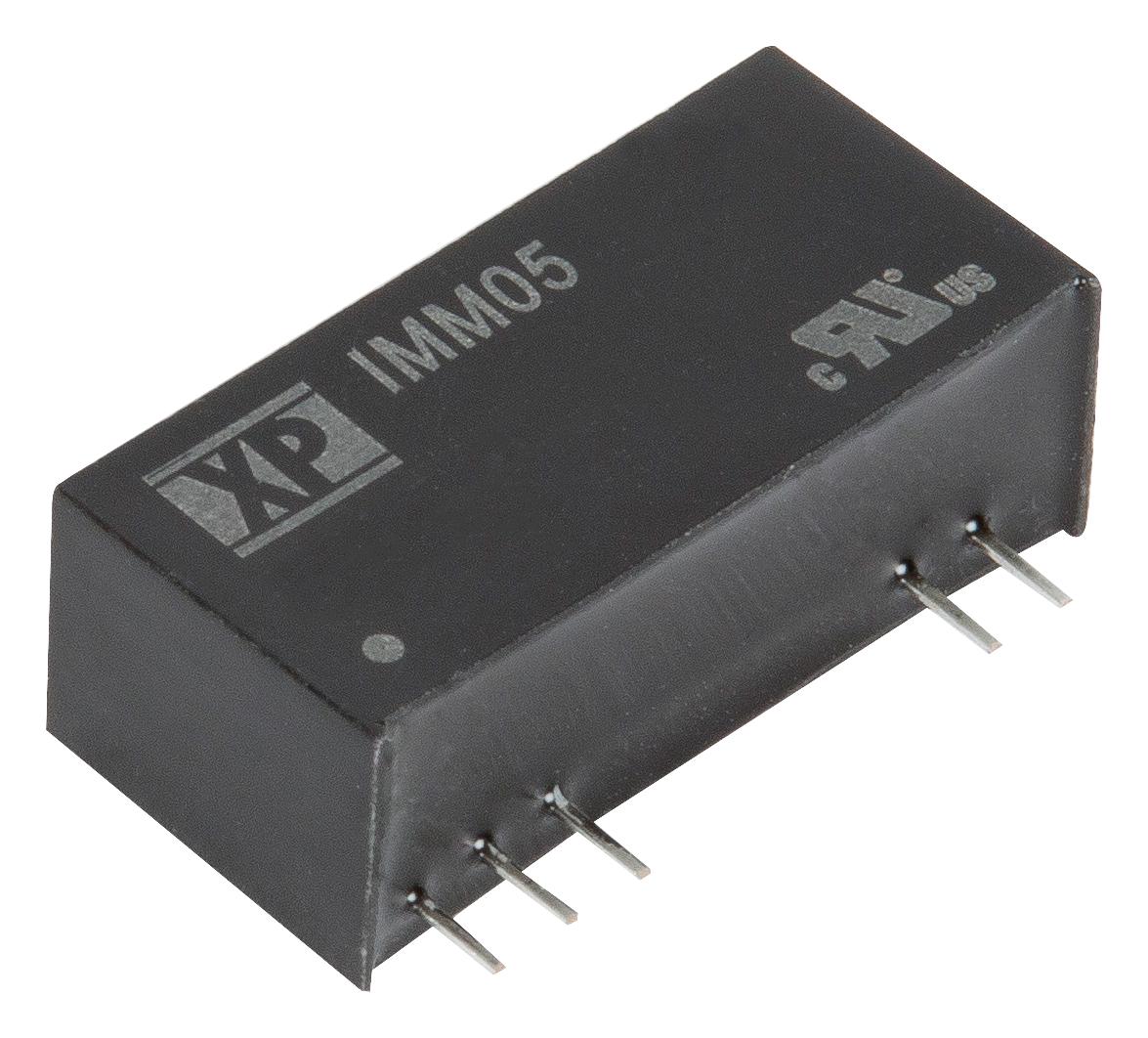

Buy the Buy XP Power DC-DC Converter Part Number IMM0524S3V3 Online
Purchase the XP Power IMM0524S3V3 DC-DC converter online today to ensure your medical devices have a reliable, ultra-compact power source. This high-quality power module offers 5W output with galvanic isolation of 1500VAC, supporting regulated single and dual outputs from 3.3V to ±15V. Certified for global medical standards, it operates efficiently from -20°C to +100°C, with full load performance up to 60°C. Its sealed SIP9 package, remote on/off feature, and robust protection make it an essential component for medical equipment, ensuring safety and durability in demanding environments.
Buy XP Power IMM0524S3V3 now and experience reliable medical-grade power with 1500VAC isolation and miniature SIP9 packaging designed for space-constrained applications.
Frequently Asked Questions
Where can I buy XP POWER IMM0524S3V3?
You can click on the BUY or RFQ button to purchase IMM0524S3V3 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IMM0524S3V3?
You can download the IMM0524S3V3 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IMM0524S3V3?
XP POWER
