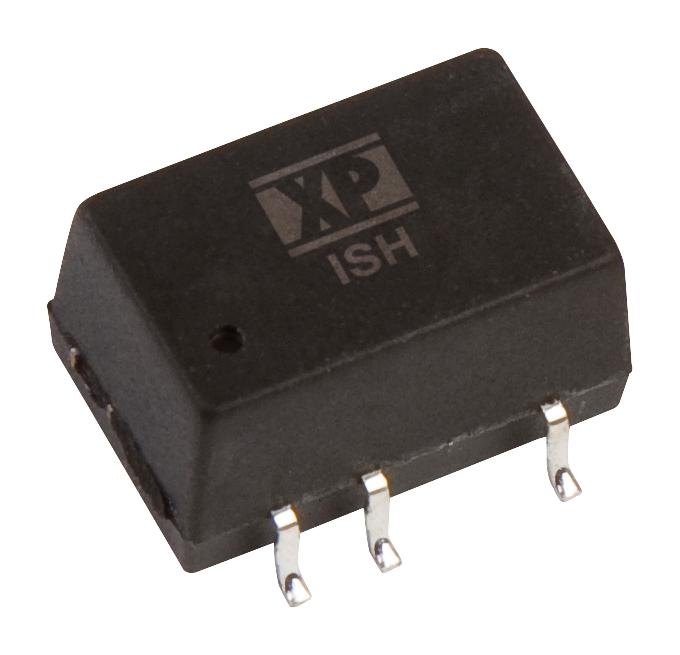

XP POWER ISH2415A Isolated Power Converter
The ISH series features a 2W isolated DC-DC converter designed for reliable power delivery in industrial and electronic applications. It offers a single output with industry-standard SMD packaging and an input-to-output isolation of 1500VDC, with an optional 3000VDC version for enhanced insulation. Operating efficiently across -40°C to 105°C, it includes optional features like tape & reel packaging and high isolation versions. Its compact size, low weight, and wide temperature range make it ideal for power management, industrial controls, and LED lighting systems requiring stable, isolated power sources.
XP POWER ISH2415A Isolated Power Converter Specifications:
- Power: 2 Watts
- Input Voltage Range: 10.8-13.2 VDC
- Output Voltage: 15 VDC
- Output Current: Typical 0.133 A
- Isolation Voltage: 1500 VDC, optional 3000 VDC with suffix H
- Operating Temperature: -40°C to +105°C
- Package: SMD (Surface-Mounted Device)
- Dimensions: 0.500 x 0.44 x 0.285 inches (12.7 x 11.2 x 7.25 mm)
- Weight: Approx. 1.5 grams
- Efficiency: Not specified, typical for similar devices
- Surge Capability: Not specified
- Humidity: Operational up to 95% RH, non-condensing
- Thermal Tolerance: Derates above 100°C to 80% load at 105°C
- Isolation Resistance: 10^9 Ω at 500 VDC
- Switching Frequency: Approximately 115 kHz
- Protection: Short circuit protection
- Solder Profile: IPC/JEDEC J-STD-020D.1
- Certifications: Industry-standard compliance, specific tested EMI/RFI standards
Buy the XP Power ISH2415A – Reliable Isolated Power Converter for Industrial Applications
Purchase the XP Power ISH2415A now to ensure your industrial and electronic systems operate with stable, efficient, and isolated power. Designed for durability and high performance, this 2W converter supports a wide temperature range from -40°C to 105°C, offering excellent reliability in harsh environments. Its industry-standard SMD package simplifies integration into various designs, while optional high isolation versions provide extra safety for sensitive equipment. With short circuit protection and a compact form factor, it's ideal for power management, industrial controls, and LED lighting applications. Order online today for fast delivery and peace of mind.
Buy XP Power ISH2415A now and experience unmatched reliability and performance with high isolation and wide temperature operation for demanding industrial projects.
Frequently Asked Questions
Where can I buy XP POWER ISH2415A?
You can click on the BUY or RFQ button to purchase ISH2415A from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ISH2415A?
You can download the ISH2415A datasheet or visit the XP POWER website for support.
Who is the manufacturer of ISH2415A?
XP POWER
