XP POWER ISV0212S15 DC-DC Converter
The ISV02 series is a compact SMD open-frame DC-DC converter offering cost-effective performance with features such as 3.0 kV isolation, a 4:1 input voltage range, and full load operation up to 75°C. It includes remote on/off control, high reliability, and short circuit protection. Available in both single and dual output configurations, this product is suitable for signal conditioning and voltage matching applications. Key features include regulated outputs, wide input range, ultra-compact package, tested 3.0 kV isolation, Class A conducted emissions, and optional tape and reel packaging, with an operating temperature range from -40°C to +75°C.
XP POWER ISV0212S15 DC-DC Converter Specifications:
- Input Voltage Range: 9.0V to 36.0V
- Output Voltage: 5V to 30V (varies by model)
- Output Current: up to 2A
- Isolation Voltage: 3,000V DC
- Operating Temperature: -40°C to +75°C
- Efficiency: Approximately 80%
- Short Circuit Protection: Auto recovery, continuous
- Ripple & Noise: 100mV pk-pk
- Dimensions: Ultra-compact SMD package, specific dimensions vary
- Isolation Resistance: 1 MΩ at 500VDC
- Certification: UL94V-0 rated case
- Switching Frequency: Model-dependent, typically in the 100-200 kHz range
- Weight: Approximately 2 grams
- Environmental Protection: RoHS compliant, moisture sensitivity level 1
- External Components: Required for filtering; see datasheet for details

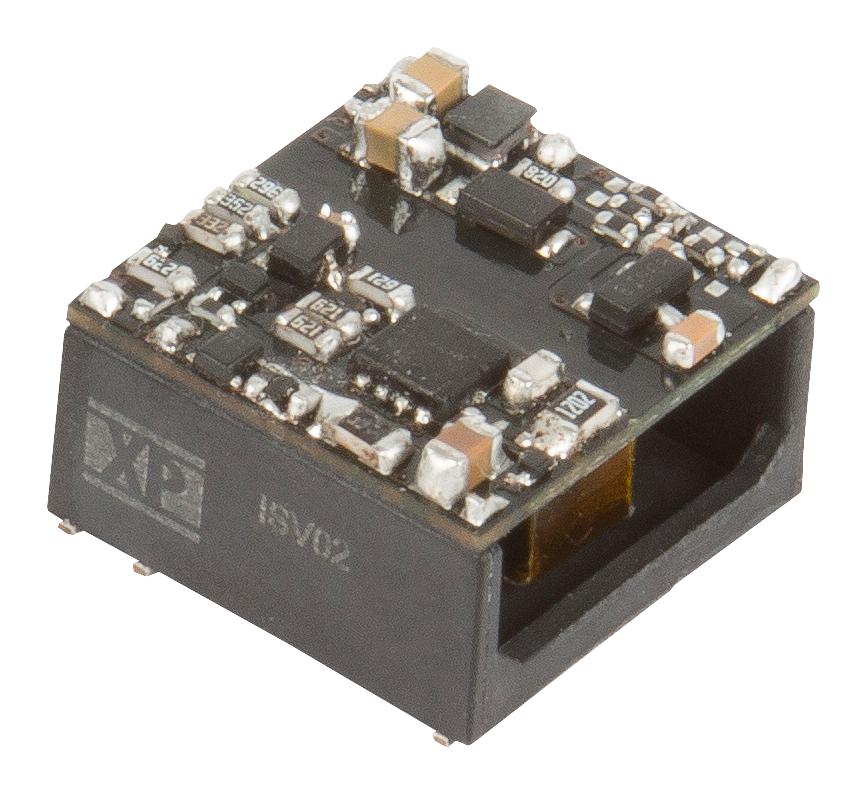

Buy the Buy XP Power DC-DC Converter Part Number ISV0212S15 Online
Purchase the XP Power DC-DC Converter online today and benefit from its high efficiency, excellent isolation, and flexible input/output options. Designed for reliable operation in industrial, medical, and automation systems, this compact module features a wide 4:1 input range, remote on/off control, and robust short circuit protection. Whether for signal conditioning or voltage matching, this converter ensures stable power conversion from -40°C to +75°C. Ordering online provides fast delivery, warranty support, and confidence in top-tier quality for your critical projects.
Buy XP Power ISV0212S15 compact DC-DC converter now and experience unmatched reliability and high performance in signal conditioning and power applications.
Frequently Asked Questions
Where can I buy XP POWER ISV0212S15?
You can click on the BUY or RFQ button to purchase ISV0212S15 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ISV0212S15?
You can download the ISV0212S15 datasheet or visit the XP POWER website for support.
Who is the manufacturer of ISV0212S15?
XP POWER
