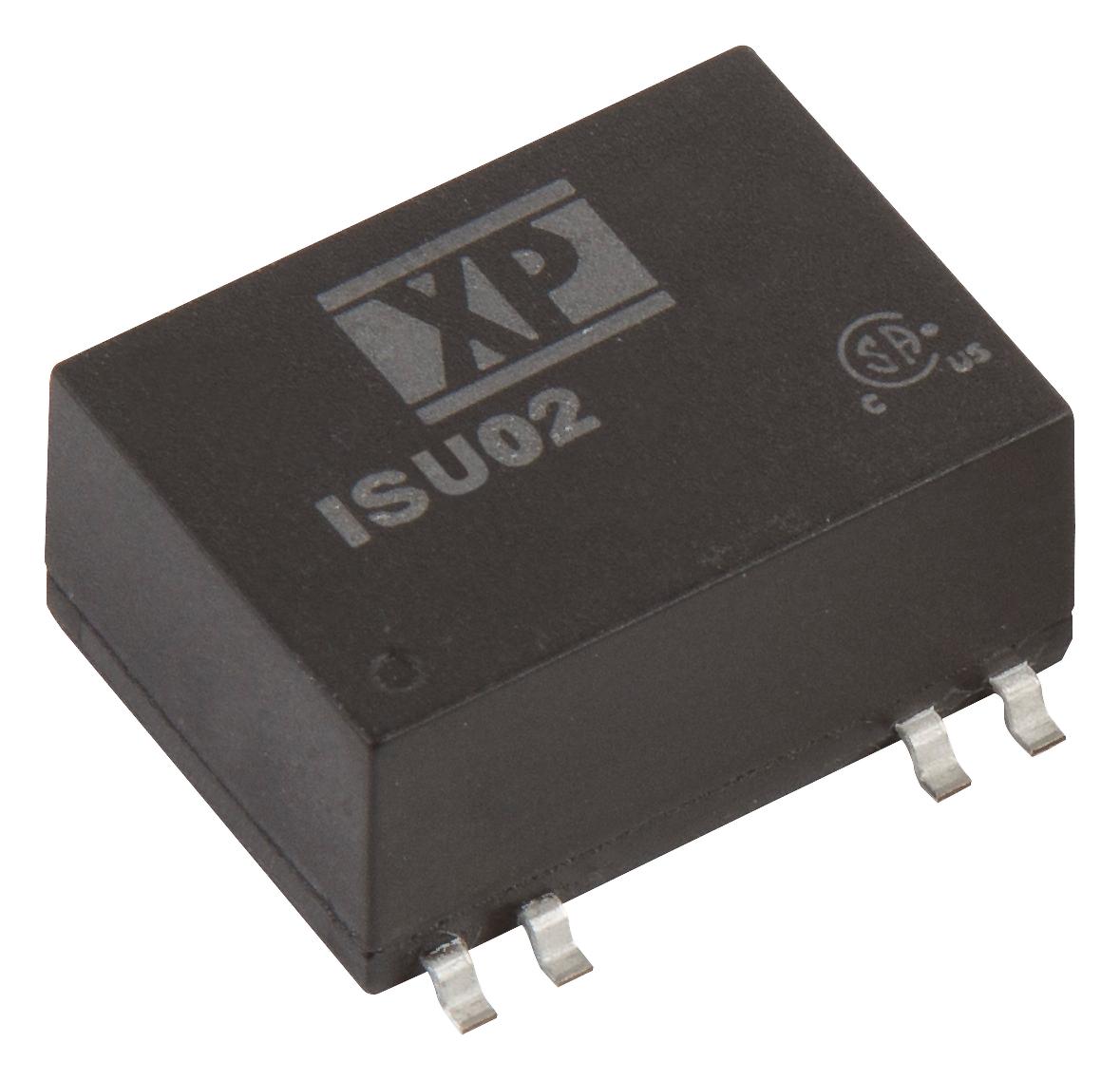

XP POWER ISU0205D15 DC-DC Converter Module
The ISU02 series is a compact 2W DC-DC converter with SMD packaging, regulated single and dual outputs, and a wide 4:1 input voltage range. It offers 1500VDC isolation, operates from -40°C to 95°C, and complies with UL/cUL 62368-1 safety standards. The module features remote On/Off, short circuit, overload, and undervoltage protections. Its dimensions are 0.75 inches by 0.67 inches by 0.34 inches (19mm x 17mm x 8.7mm). Designed for industrial power management, it ensures reliable performance in demanding applications with high safety and EMC standards.
XP POWER ISU0205D15 DC-DC Converter Module Specifications:
- Power: 2W
- Input Voltage Range: 9.0V to 36V for 5V output, 18V to 75V for 15V output, 9V to 36V for 12V output, 18V to 75V for 24V output
- Output Voltages: 5V, 12V, 15V, 24V
- Output Current: up to 500mA
- Input Current: Max 400mA at 8V, 95mA at 15V, 67mA at 18V
- Isolation Voltage: 1500VDC
- Operating Temperature Range: -40°C to +95°C
- Dimensions: 0.75 x 0.67 x 0.34 inches (19 x 17 x 8.7 mm)
- Efficiency: Up to 82%
- Protection Features: Remote On/Off, short circuit, overload, undervoltage
- Safety Certifications: UL/cUL 62368-1, IEC 62368-1
- EMC Compliance: EN55032 Class A
- Case Material: Non-conductive black plastic, UL 94V-0 rated
- Soldering Profile: 260°C for 10s maximum
- Water Washable Version: Optional
- Humidity Range: 5% RH non-condensing
Buy the XP Power ISU0205D15 – Reliable Industrial Power Converter for Industrial Applications
Purchase the XP Power DC-DC Converter Module online today to enjoy high efficiency, robust safety features, and versatile input/output options. Ensure optimal power regulation for your industrial devices with this compact, reliable unit that offers wide input voltage ranges, high isolation, and remote on/off functionality. Designed to meet stringent safety standards, it is suitable for demanding environments and critical applications. Order now for fast delivery and secure online checkout, delivering quality power solutions directly to your business or project needs.
Buy XP Power ISU0205D15 now and experience unmatched reliability and performance in industrial power management.
