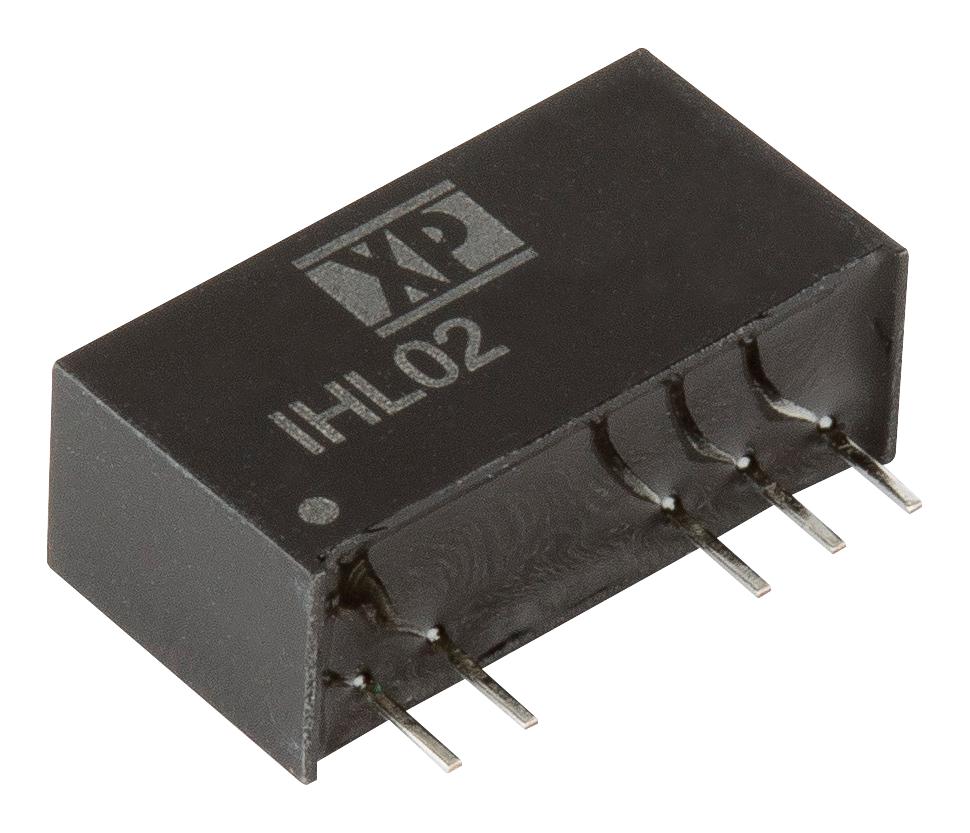

XP POWER IHL0215S12 DC-DC Converter
The IHL02 series is a compact 2-watt DC-DC converter in a SIP7 package, featuring bipolar outputs suitable for MOSFET and IGBT drivers. It includes high isolation of 5,200VDC, a working voltage rated at 250VAC, and options for single or dual outputs. Designed for industrial power management, it ensures reliable operation with continuous short circuit protection and excellent transient immunity. The device operates efficiently from -40°C to 95°C, supporting full load at 65°C ambient, making it ideal for high-voltage and isolation-critical applications.
XP POWER IHL0215S12 DC-DC Converter Specifications:
- Power: 2 Watts
- Isolation Voltage: 5,200VDC (functional insulation)
- Working Voltage: 250VAC
- Input Voltage Range: 13.5V to 165V
- Output Voltage Options: 3.3V, 5V, 12V, 15V, 18V, 24V, 30V
- Output Current: Up to 70% load at rated output voltage
- Efficiency: 80%
- Isolation Resistance: 10e12 Ω
- Isolation Capacitance: 7 pF
- Transient Immunity (CMTI): 20 kV/μs
- Operating Temperature Range: -40°C to +95°C
- Full Load at 65°C Ambient
- Case Material: Non-conductive black plastic (UL94V-0)
- Dimensions: 0.77 x 0.28 x 0.39 inches (19.5 x 7.2 x 10.0 mm)
- Pin Material: Solder coated phosphor bronze
- Solder Process: 260°C, 1.5mm from case, max 10s
- Humidity Range: 25% to 95% RH, non-condensing
- Switching Frequency: 50-100 kHz
- MTBF: 3.3 million hours
- Safety Standards: CE, UKCA compliant
Buy the XP Power Series IHL02 2W Isolated DC-DC Converter: IHL0215S12
Purchase the high-quality XP Power Series IHL02 2W DC-DC Converter online today. With high isolation of 5,200VDC, bipolar outputs, and a wide temperature range, it delivers dependable power conversion for industrial, power management, and drive applications. Easy to integrate with compact SIP7 packaging, this converter offers excellent transient immunity, full load operation at elevated temperatures, and continuous short circuit protection. Reliable, efficient, and compliant with safety standards, it is the ideal choice for high-voltage electronic systems and industrial automation solutions.
Order your XP Power Series IHL02 2W DC-DC Converter today and ensure reliable power isolation with high voltage ratings, perfect for industrial and drive applications.
Frequently Asked Questions
Where can I buy XP POWER IHL0215S12?
You can click on the BUY or RFQ button to purchase IHL0215S12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IHL0215S12?
You can download the IHL0215S12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IHL0215S12?
XP POWER
