XP POWER DTE6048S24 DC-DC Converter

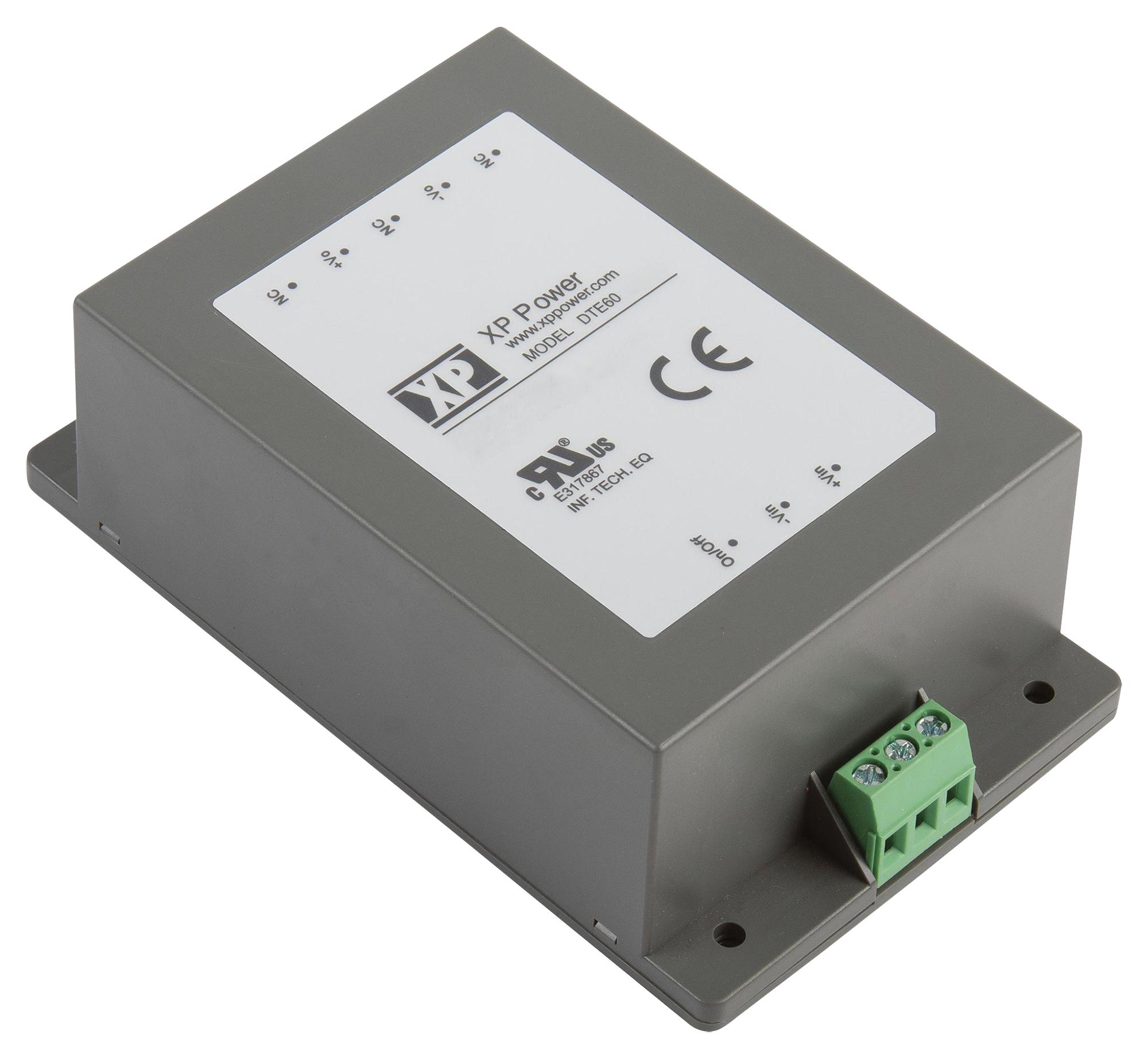

The DTE60 series are encapsulated 60W DC-DC converters designed for industrial and commercial applications. Offering regulated single outputs from 24VDC to 48VDC across wide 4:1 input ranges, they feature fully encapsulated chassis mounts, optional DIN rail versions, screw terminals for easy connection, and a power good indicator LED. The modules include remote ON/OFF control, 2.5kVDC input/output isolation, and protections against undervoltage, short circuit, overload, and overvoltage conditions. Operating temperature ranges from -40°C to +95°C, with a rugged design ensuring reliable performance.
XP POWER DTE6048S24 DC-DC Converter Specifications:
- Input Voltage Range: 24V (26-35V), 48V (75-78V)
- Input Current: Typically 3mA at nominal voltage when output is off
- Output Voltage: 24V or 48V (see models)
- Output Current: 18-75A (depending on model)
- Efficiency: Varies by model, typically high
- Isolation: 2.5kVDC input/output
- Operating Temperature: -40°C to +95°C, derating above 80°C
- Dimensions: 4.1 x 2.67 x 1.5 inches (112 x 67.8 x 38 mm)
- Protection: Short circuit, overload, input undervoltage, overvoltage
- Standards: IEC/UL/cUL62368-1, EN55032 Class A
- Weight: Approximately 0.6 lbs (300 g)
- Cooling: Natural convection
- Vibration: 2 g sweep from 70-500 Hz
- Shock: 30 g shocks, 11 shocks per axis
- MTBF: 750,000 hours (MIL-HDBK-217F +25°C)
Buy the Buy XP Power DTE60 Series DC-DC Converter Part Number DTE6048S24 Online
Purchase the XP Power DTE60 series DC-DC converter today to ensure reliable power conversion in your industrial or commercial applications. Designed with rugged encapsulation, wide temperature operation, and comprehensive protections, this 60W module guarantees performance in demanding environments. Choose between models with 24V or 48V outputs, all featuring remote ON/OFF control, 2.5kVDC isolation, and UL/IEC safety approvals. Buy online now for fast delivery and experience the durability and efficiency that XP Power offers.
Get XP Power DTE6048S24 today—built for industrial reliability, wide input range, high efficiency, and long-lasting durability.
Frequently Asked Questions
Where can I buy XP POWER DTE6048S24?
You can click on the BUY or RFQ button to purchase DTE6048S24 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part DTE6048S24?
You can download the DTE6048S24 datasheet or visit the XP POWER website for support.
Who is the manufacturer of DTE6048S24?
XP POWER
