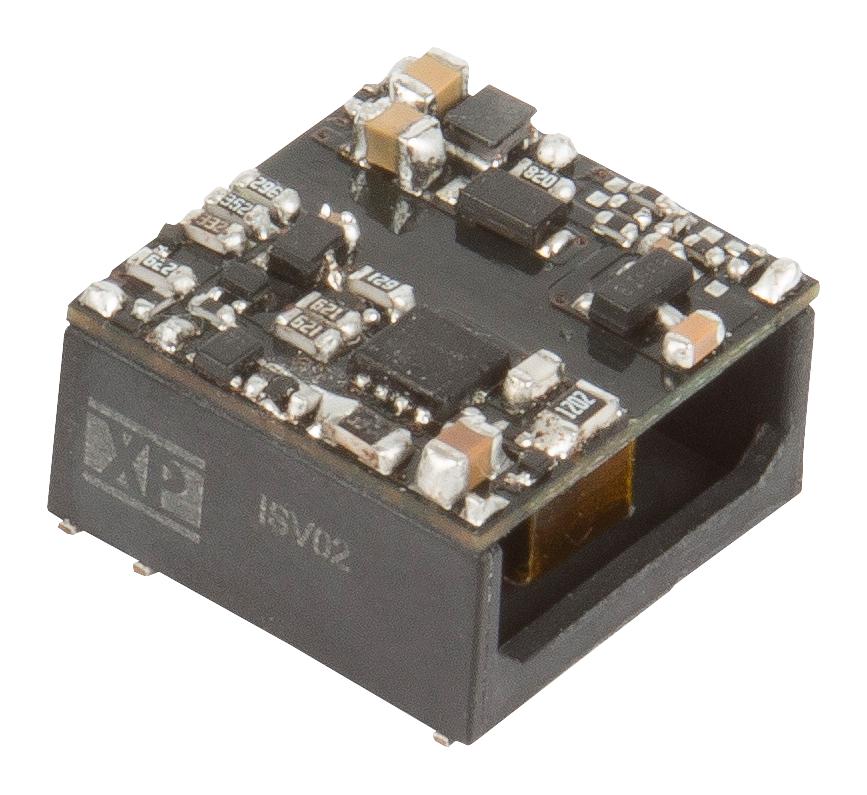

XP POWER ISV0224D12 DC-DC Converter
The ISV02 series is a compact SMD, open frame DC-DC converter providing a cost-effective, high-performance power solution for industrial systems. It features 3.0 kV isolation, a wide 4:1 input voltage range, and supports full load operation at temperatures up to 75°C. Suitable for signal conditioning and voltage matching, it includes remote ON/OFF, short circuit protection, and high reliability. The converter is available in single or dual output configurations, with ultra-compact packaging, Class A emissions, and optional tape & reel packaging for easy deployment in demanding industrial environments.
XP POWER ISV0224D12 DC-DC Converter Specifications:
- Input Voltage Range: 9.0V to 36.0V, 4:1 wide range
- Output Voltage: 5V to 30V
- Output Current: varies by model, up to full load at 75°C
- Isolation Voltage: 3000VDC
- Operating Temperature: -40°C to +75°C
- Full Power capability at 75°C
- Efficiency: up to 80%
- Surge Protection: 50 or 100V nominal
- Short Circuit Protection: Auto recovery, continuous
- Dimensions: Ultra-compact SMD package
- Isolation Resistance: 1GΩ at 500VDC
- Isolation Capacitance: 25pF
- Compliance: Class A conducted emissions, UL94V-0 case material
- Reliability: MTBF approximately 890,000 hours
- Protection Features: Remote ON/OFF, short circuit, and overload protection
Buy the XP Power ISV0224D12 – Reliable DC-DC Converter for Industrial Applications
Discover the high-performance, reliable DC-DC converter designed for industrial applications. The XP Power ISV0224D12 features 3.0 kV isolation, a wide 4:1 input range, and supports full load operation up to 75°C. Its compact SMD package makes installation easy, while remote ON/OFF and short circuit protection ensure safety and durability. With Class A conducted emissions, it is ideal for industrial signal conditioning, voltage matching, and automation systems. Purchase online today for a dependable power solution that meets strict industrial standards.
Buy XP Power ISV0224D12 now and experience unmatched reliability and performance for demanding industrial systems.
Frequently Asked Questions
Where can I buy XP POWER ISV0224D12?
You can click on the BUY or RFQ button to purchase ISV0224D12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ISV0224D12?
You can download the ISV0224D12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of ISV0224D12?
XP POWER
