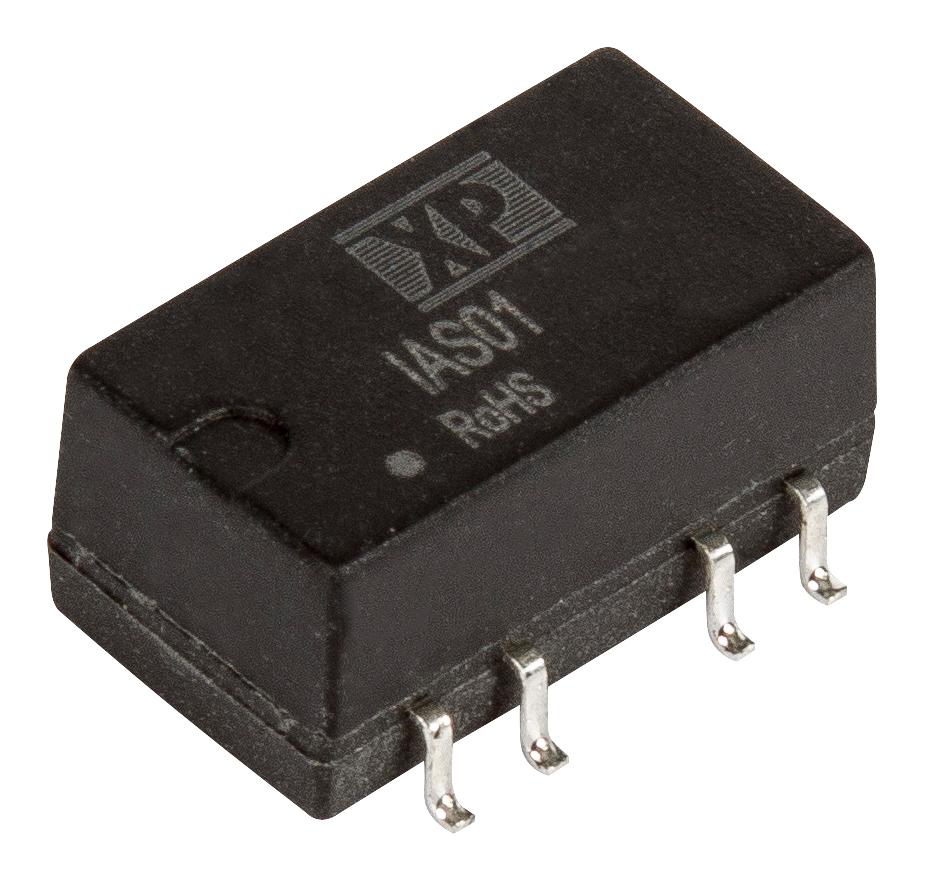

XP POWER IAS0124D05 Dual Output Power Module
The IAS01 series DC-DC power supply provides an ideal solution for isolating voltage rails in distributed power architectures, suitable for industrial electronics, instrumentation, and technological applications. It features unregulated ±5V dual outputs with a 24V input voltage, an input voltage range of ±10%, and is housed in an SMD10 DIP package with an industry standard pinout. The power supply offers continuous short circuit protection, UL62368-1 safety approval, and operates effectively from -40°C to +105°C, with full load performance up to +100°C. It comes with a 3-year warranty.
XP POWER IAS0124D05 Dual Output Power Module Specifications:
- Input Voltage: 24V ±10%
- Output Voltage: ±5V (unregulated)
- Output Current: 5mA (minimum) to 244mA (maximum)
- Isolation: 1.5kVDC, 3kVDC option
- Dimensions: 0.600" x 0.335" x 0.285" (15.24 x 8.50 x 7.25 mm)
- Operating Temperature: -40°C to +105°C
- Full Load Temperature: Up to +100°C
- Short Circuit Protection: Continuous with auto recovery
- Efficiency: Approx. 82-85%
- Safety Approvals: UL62368-1
- Encapsulation: Black plastic, UL94V-0
- Pin Material: Phosphor bronze
- Water Resistance: Non-soaking water wash, dry thoroughly
Buy the XP Power IAS01 – Reliable DC-DC Power Supply for Industrial Applications
Order the XP Power dual output power module online today to ensure resilience and precision in your industrial power systems. Designed for reliability, this compact module offers unregulated ±5V outputs from a 24V input, with wide temperature tolerance and UL safety approval. Its integrated short circuit protection and industry-standard pinout simplify installation and maintenance. Perfect for distributed architectures in instrumentation, industrial automation, and electronics, and available with a 3-year warranty. Secure your supply chain with an efficient, trustworthy power solution—buy now.
Get XP Power IAS0124D05 today—built for precision and long-lasting durability in industrial electronics and instrumentation.
Frequently Asked Questions
Where can I buy XP POWER IAS0124D05?
You can click on the BUY or RFQ button to purchase IAS0124D05 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IAS0124D05?
You can download the IAS0124D05 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IAS0124D05?
XP POWER
