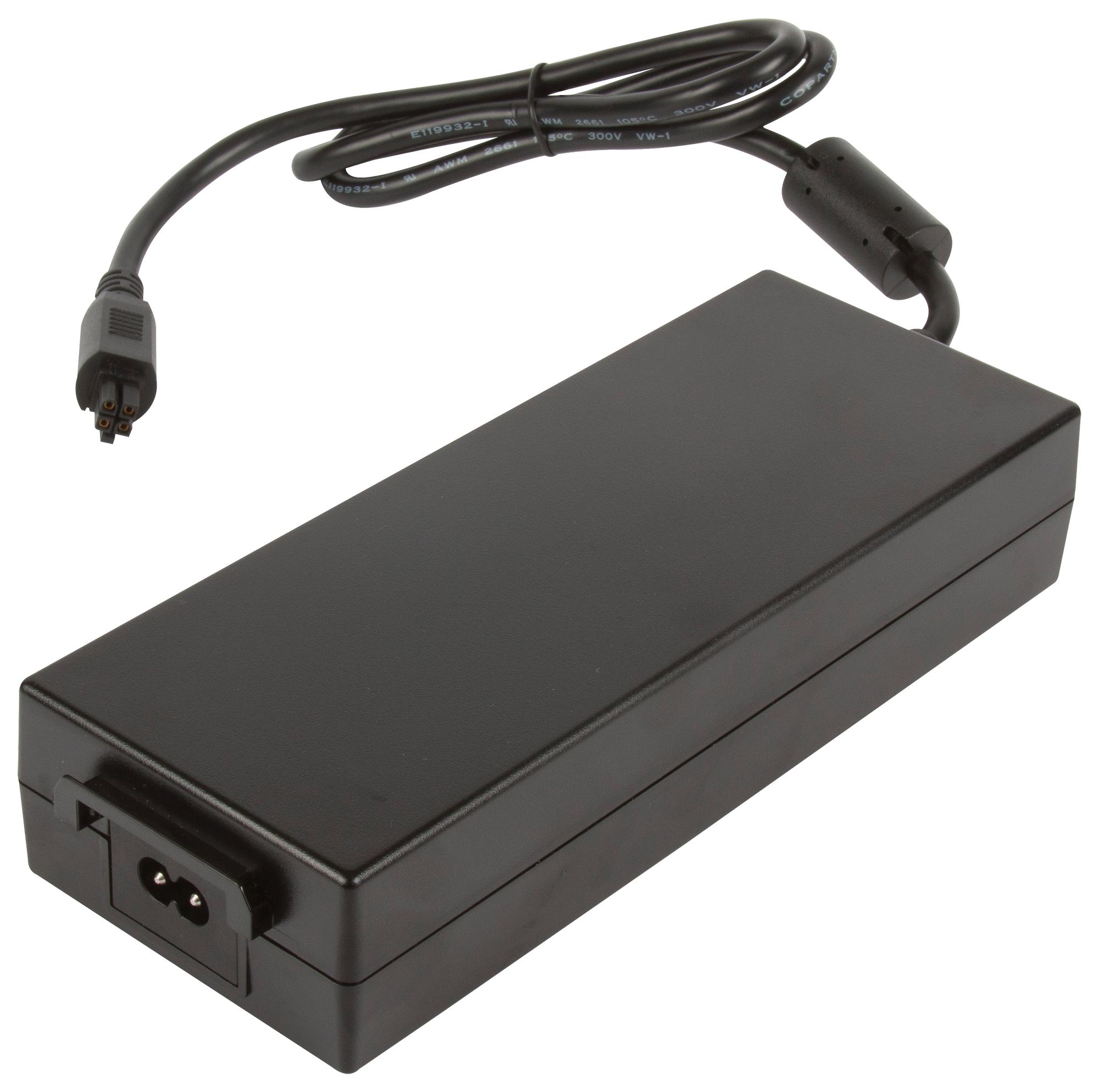

XP POWER ALM200PS19C28 Medical Power Supply
The ALM200 series medical external power supply is fully compliant with international medical and IT safety standards. Designed for high efficiency and low standby power consumption, it meets the latest environmental directives. The unit features a fully sealed IP32 enclosure with a smooth surface finish for easy cleaning in clinical environments. It offers energy efficiency Level VI and EU Code of Conduct Tier 2 compliance, consumes less than 0.15W in standby, and operates within a temperature range of 0°C to 60°C. With low earth leakage current, this Class II construction power supply measures 8.23 inches by 3.23 inches by 1.69 inches (209mm x 82mm x 43mm). It is suitable for medical applications.
XP POWER ALM200PS19C28 Medical Power Supply Specifications:
- Power: 200 Watts
- Input Voltage: 80-264 VAC
- Input Frequency: 63 Hz
- Input Current: 4.0 A at 115/230 VAC
- Inrush Current: 760 A at 230 VAC
- Efficiency: 92%
- Standby Power: <0.15 W
- Operating Temperature Range: 0°C to 60°C
- Output Voltage Options: 12V, 19V, 24V, 48V models
- Output Load Regulation: ±3.5%
- Isolation: Input to Output 4000 VAC, Input to Ground 1800 VAC (Class I versions), Output to Ground 500 V (Class I only)
- Earth Leakage Current: 250 mA at 264 VAC
- Dimensions: 8.23 inches x 3.23 inches x 1.69 inches (209mm x 82mm x 43mm)
- Weight: approx. 910g (2.01 lbs)
- Enclosure: Fully sealed IP32, smooth surface finish
- Certifications: UL, IEC, EN60601-1, CSA
Buy the Buy XP Power ALM200 Series Power Supply Part Number ALM200PS19C28 Online
Enhance your medical equipment with the XP Power ALM200 Series Power Supply. Known for high efficiency, low standby power, and robust safety certifications, this power supply features an IP32 sealed enclosure, ideal for clinical environments. Its compact size measures 8.23 inches by 3.23 inches by 1.69 inches, fitting easily into space-constrained setups. Designed to operate from 0°C to 60°C, it provides stable output voltage options with excellent load regulation. Purchase online now to secure dependable power tailored for medical and IT applications, ensuring safety and compliance.
Order your XP Power ALM200PS19C28 medical power supply today and ensure reliable, efficient power for your clinical and IT applications.
Frequently Asked Questions
Where can I buy XP POWER ALM200PS19C28?
You can click on the BUY or RFQ button to purchase ALM200PS19C28 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ALM200PS19C28?
You can download the ALM200PS19C28 datasheet or visit the XP POWER website for support.
Who is the manufacturer of ALM200PS19C28?
XP POWER
