XP POWER IHL0205D15 DC-DC Converter
The IHL02 series is a compact 2W DC-DC converter in a SIP7 package, providing bipolar outputs ideal for MOSFET and IGBT driver applications. It features high isolation of 5200V DC, a working voltage rated for 250VAC, and supports both single and dual output configurations. With continuous short circuit protection and an operational temperature range from -40°C to 95°C, it ensures reliable performance in industrial and power management systems. Its high common mode transient immunity and low input-to-output capacitance make it highly effective for sensitive electronics needing stable power conversion.
XP POWER IHL0205D15 DC-DC Converter Specifications:
- Power: 2 Watts
- Isolation: 5200V DC
- Working Voltage: 250VAC, 400VDC
- Output Voltage: 3.3V to 30V (varies by model)
- Input Voltage Range: 13.5V to 165V
- Maximum Continuous Power: 2W
- Operation Temperature Range: -40°C to +95°C
- Case Material: Non-conductive plastic (UL94V-0)
- Package: SIP7
- Dimensions: 0.77 x 0.28 x 0.39 inches (19.5 x 7.2 x 10.0 mm)
- Operating Humidity: 25% to 95% RH, non-condensing
- Switching Frequency: 50-100 kHz
- Efficiency: Up to 80%
- MTBF: 3.3 million hours
- Safety Standards: CE, UKCA compliant
- Isolation Capacitance: 7 pF
- Isolation Resistance: 10^9 Ω

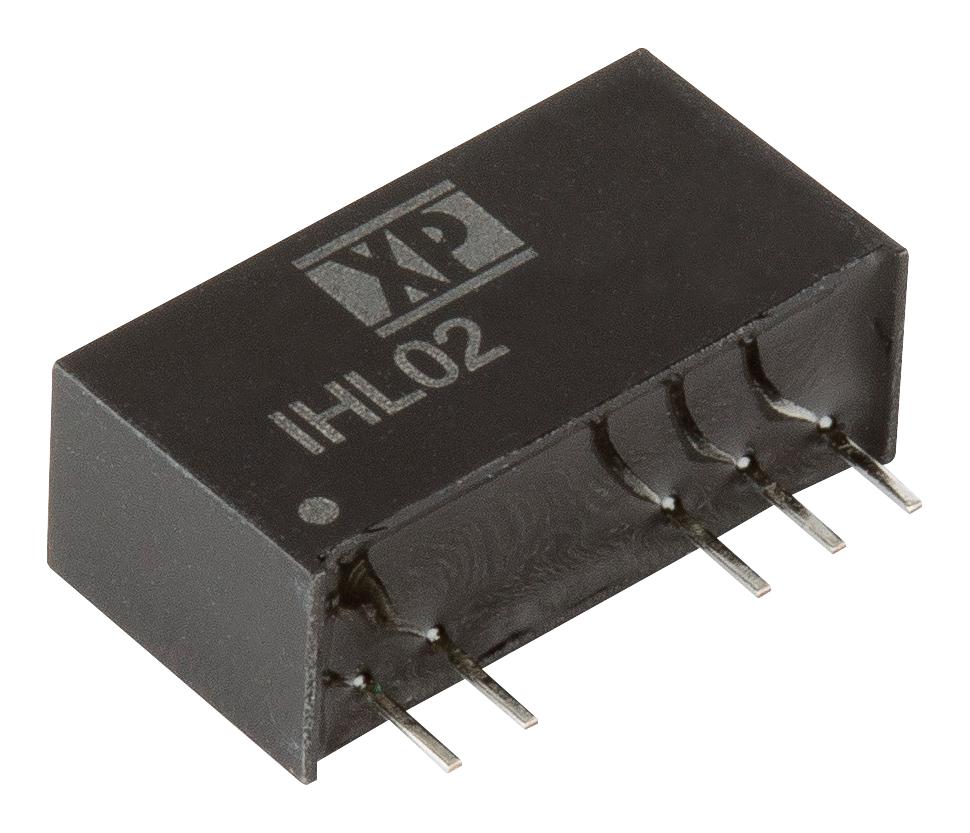

Buy the XP Power Series IHLO2 DC-DC Converter: IHL0205D15
Purchase the XP Power IHLO2 series high isolation DC-DC converter online today. Designed for efficient power management, it offers bipolar outputs, high isolation of 5200V, and a wide operating temperature range from -40°C to 95°C. Its compact SIP7 package supports both single and dual outputs, ensuring compatibility with power electronics and industrial systems. With excellent performance, full load capacity at ambient temperatures up to 65°C, and a robust MTBF of 3.3 million hours, this converter is ideal for demanding industrial applications requiring reliable and stable voltage conversion.
Get XP Power IHLO2 series DC-DC converter today—built for high isolation, durability, and reliable power conversion in industrial applications.
Frequently Asked Questions
Where can I buy XP POWER IHL0205D15?
You can click on the BUY or RFQ button to purchase IHL0205D15 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IHL0205D15?
You can download the IHL0205D15 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IHL0205D15?
XP POWER
