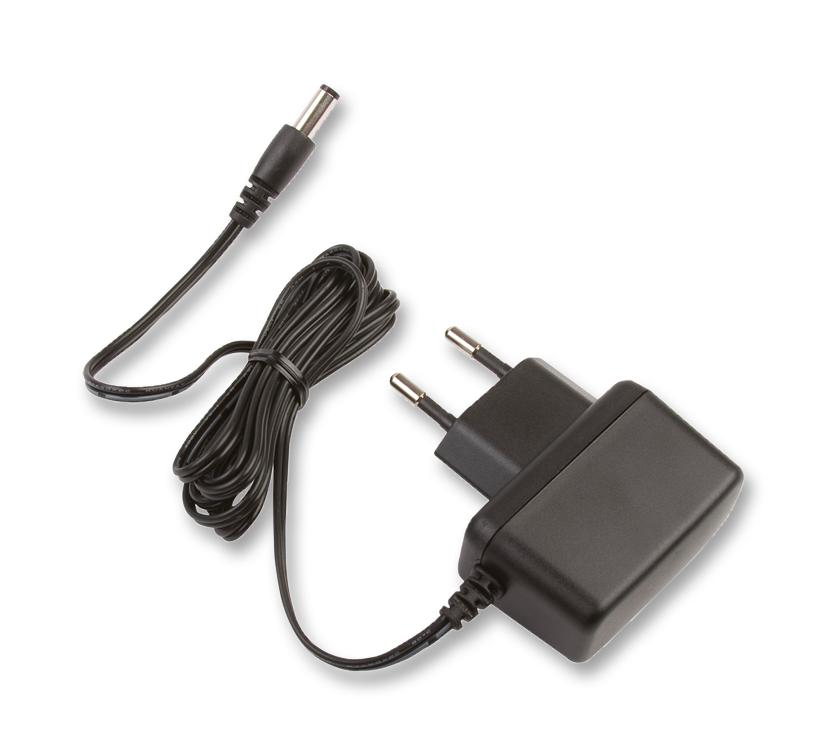

XP POWER VEL12US090EUJA Industrial Power Supply
The VEL12 series AC-DC power supplies offer 12 watts of reliable power with high efficiency and low no-load power consumption, meeting Energy Efficiency Level VI standards. These wall plug adaptors feature universal input of 90-264 VAC and output voltages from 5.0 V to 12.0 V, suitable for a broad range of industrial and consumer applications. Compact and lightweight, they incorporate Class II construction for safety, with fixed mains connectors and standard DC jack outputs, making them ideal for cost-sensitive projects that require stable, regulated power supplies with high efficiency and compliance to safety standards.
XP POWER VEL12US090EUJA Industrial Power Supply Specifications:
- Input Voltage: 90-264 VAC
- Input Frequency: 50-60 Hz
- Power Output: 12 W
- Output Voltages: 5.0 V, 9.0 V, 12.0 V
- Output Current: 2100 mA at 5 V, 1280 mA at 9 V, 1000 mA at 12 V
- Output Regulation: ±5%
- Efficiency: 79-83% at full load
- Isolation: 3000 VAC input to output
- Switching Frequency: 24-70 kHz
- Operating Temperature: 0°C to +60°C, derate above 40°C
- Storage Temperature: -40°C to +85°C
- Operating Humidity: 3% to 95% RH, non-condensing
- Safety Standards: UL, EN60950-1, TUV approved
- Protection: Short circuit, overcurrent, overvoltage
- Dimensions: approximately 2.99 x 1.16 x 1.55 inches
- Weight: around 0.19 kg (0.42 lbs)
Buy the XP Power VEL12 – Reliable AC-DC Power Supplies for Industrial Applications
Purchase the XP Power VEL12 series power supplies online today to benefit from high efficiency, low no-load power consumption, and industry-leading safety features. These compact, reliable units feature universal input voltage and multiple output options from 5.0 V to 12.0 V, making them suitable for a wide range of industrial, automation, and consumer devices. Enjoy fast, secure online ordering, competitive pricing, and prompt delivery to ensure your projects maintain optimal power performance with certified safety standards and excellent regulation.
Order your XP Power VEL12 series power supply today and ensure dependable, efficient power delivery for your industrial and consumer projects.
Frequently Asked Questions
Where can I buy XP POWER VEL12US090EUJA?
You can click on the BUY or RFQ button to purchase VEL12US090EUJA from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part VEL12US090EUJA?
You can download the VEL12US090EUJA datasheet or visit the XP POWER website for support.
Who is the manufacturer of VEL12US090EUJA?
XP POWER
