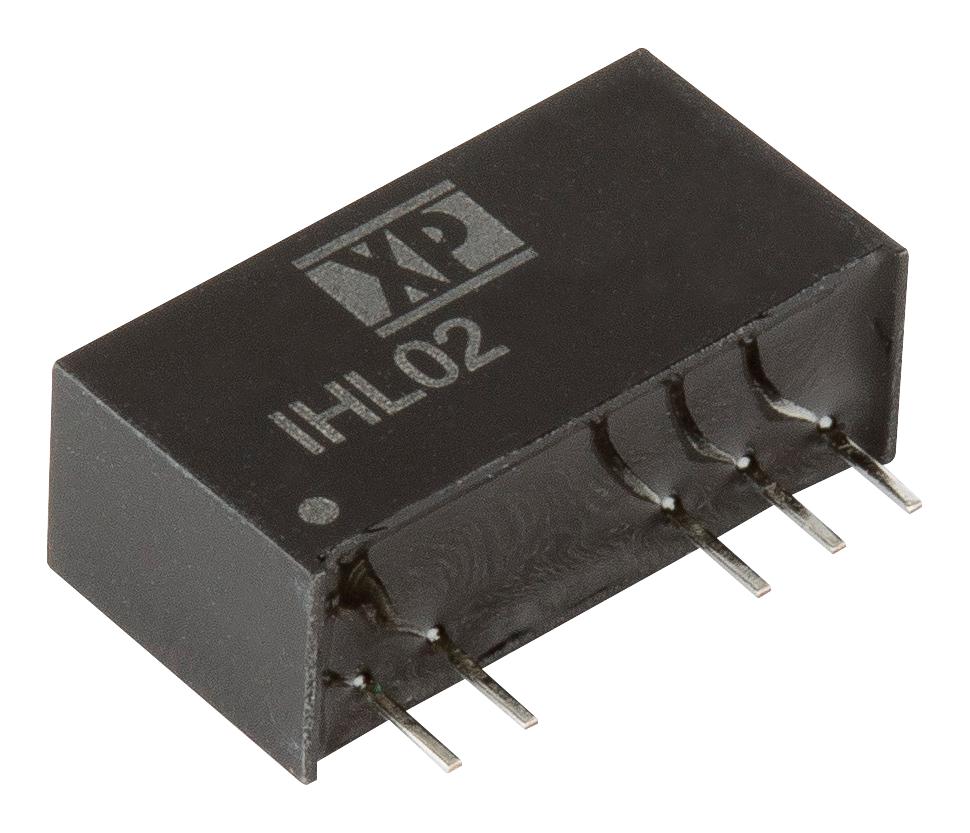

XP POWER IHL0215S15 High isolation DC-DC converter
The IHL02 series is a 2W DC-DC converter available in a 7-pin SIP package. It features dual bipolar outputs, optimal for MOSFET and IGBT drive applications, with high isolation of 5,200VDC. Operating reliably within a temperature range of -40°C to +95°C, it supports both single and dual output configurations, including models like the IHL0215S15 with integrated short circuit protection. Its high continuous working voltage rating, coupled with excellent transient immunity and low input-to-output capacitance of 10pF, makes it ideal for industrial power management and control systems, ensuring robust performance and safety. The device guarantees full load performance at 65°C ambient and safe operation under surge conditions, fulfilling vital industry safety standards.
XP POWER IHL0215S15 High isolation DC-DC converter Specifications:
- Power: 2 Watts
- Isolation Voltage: 5,200VDC
- Input Voltage Range: 13.5 to 165 VAC/DC
- Output Voltage Options: 3.3V to 24V
- Operation Temperature: -40°C to +95°C
- Full Load Temperature: 65°C ambient
- Isolation Resistance: 10^9Ω
- Isolation Capacitance: 7 pF
- Switching Frequency: 50 to 100 kHz
- Efficiency: Up to 80%
- Case Material: UL94V-0 plastic
- Pin Material: Phosphor bronze, solder coated
- Dimensions: 0.77 x 0.28 x 0.39 inches (19.5 x 7.2 x 10.0 mm)
- MTBF: 3.3 million hours
- Warranty: 3 years
- Certifications: CE, UKCA
- Input Surge Voltage: 20V for 100 ms
- Input Ripple Current: 20 mA peak-to-peak
- Short Circuit Protection: Auto recover
- Maximum Capacitive Load: Model-dependent
- Environmental: Non-condensing humidity, natural convection cooling
- EMC: Meets EN55032 Class B
- Immunity Standards: EN61000-4 series including ESD, radiated immunity, EFT, conducted immunity, and magnetic susceptibility.
Buy the XP Power IHL0215S15 – Reliable Industrial Power Supply for Control Applications
Purchase the high-reliability IHL02 series DC-DC converter online today and enjoy fast delivery, industry-leading safety standards, and exceptional power efficiency. Designed for industrial control, motor drives, and power management systems, this converter provides high isolation of 5200VDC, bipolar outputs, and operation over a wide temperature range from -40°C to +95°C. Its robust construction includes short circuit protection, UL94V-0 case, and certified compliance for safety and EMI standards. Suitable for demanding environments, ensuring stable performance, durability, and peace of mind on every purchase.
Buy XP Power IHL0215S15 now and experience unmatched reliability and performance in high-isolation industrial power conversion.
Frequently Asked Questions
Where can I buy XP POWER IHL0215S15?
You can click on the BUY or RFQ button to purchase IHL0215S15 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IHL0215S15?
You can download the IHL0215S15 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IHL0215S15?
XP POWER
