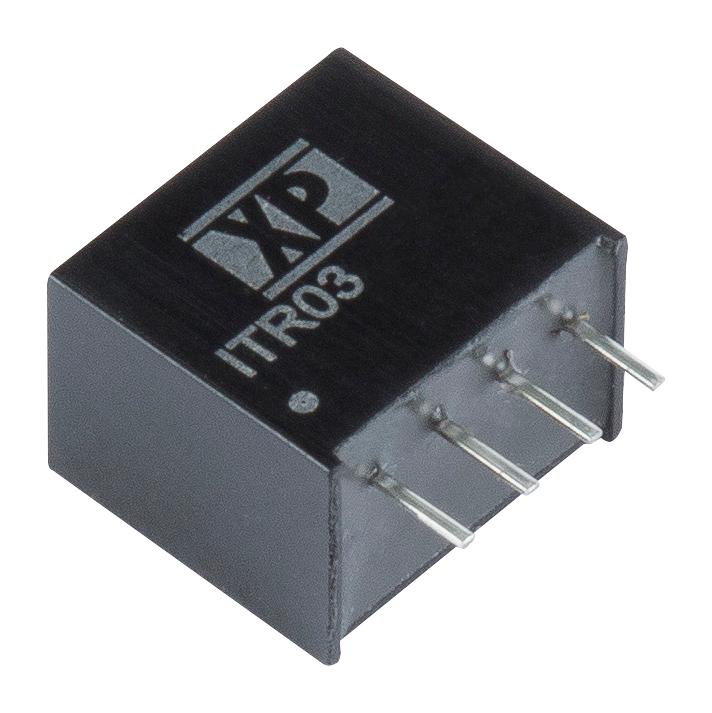

XP POWER ITR0324S12 Industrial DC-DC Converter
The ITR Series is a compact, isolated DC-DC converter offering 3W power with a broad input voltage range from 10.8V to 26.4V and various output voltages such as 5V, 12V, and 15V. Designed for industrial environments, it features high efficiency up to 91%, input/output isolation of 3000VDC, and operation within -40°C to +100°C. Its robust encapsulated construction ensures durability, while the switch frequency of 40-70 kHz caters to diverse applications requiring reliable power conversion.
XP POWER ITR0324S12 Industrial DC-DC Converter Specifications:
- Input Voltage Range: 10.8V to 26.4V
- Output Voltages: 5V, 12V, 15V
- Output Current: Up to 600mA depending on model
- Efficiency: Up to 91%
- Isolation: 3000VDC input/output
- Operating Temperature: -40°C to +100°C
- Full Power Operating Temperature: Up to +85°C
- Switching Frequency: 40-70 kHz
- Dimensions: 0.46 x 0.38 x 0.29 inches (11.8 x 9.66 x 7.5mm)
- Case Material: Non-conductive black plastic (UL 94V-0 rated)
- Potting Material: Silicone (UL94V-0 rated)
- Weight: approx. 2.2 grams
- Certifications: CE, EN55032 Class B
- Input/Output Isolation Voltage: 3kVDC
- Max Capacitive Load: Varies per model, up to several thousand microfarads
- Operating Temperature Range: -40°C to +100°C
- Storage Temperature Range: -55°C to +125°C
Buy the Buy XP Power ITR Series Part Number ITR0324S12 Online
Purchase the XP Power ITR Series DC-DC converter online today to ensure you get a reliable, high-efficiency power supply solution. This 3W module offers a broad input voltage range from 10.8V to 26.4V and features multiple output options such as 5V, 12V, and 15V. Its robust construction and industrial temperature range of -40°C to +100°C make it suitable for demanding environments. With input/output isolation of 3000VDC and efficiency up to 91%, it guarantees performance and durability for your applications. Order now to streamline your power management needs with ease and confidence.
Buy XP Power ITR0324S12 now and experience unmatched reliability and industrial-grade performance in power conversion applications.
Frequently Asked Questions
Where can I buy XP POWER ITR0324S12?
You can click on the BUY or RFQ button to purchase ITR0324S12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ITR0324S12?
You can download the ITR0324S12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of ITR0324S12?
XP POWER
