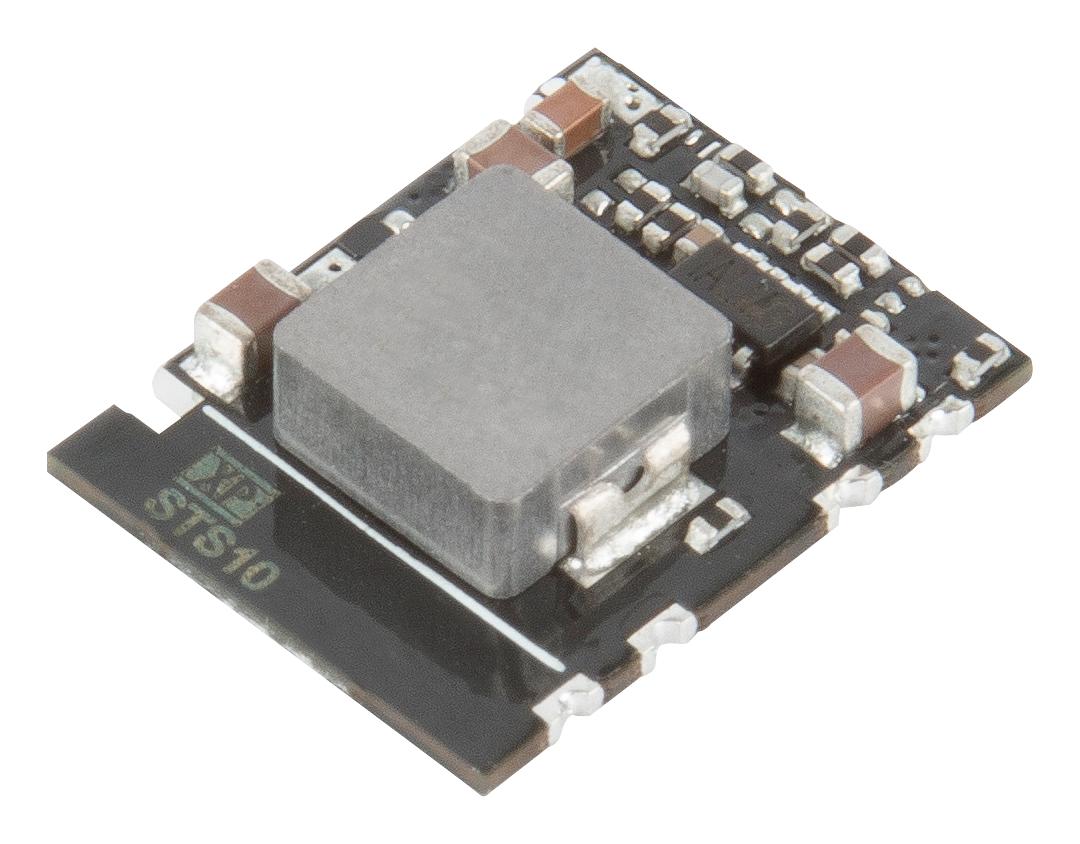

XP POWER STS1024S6V5 DC-DC Buck Regulator
The STS10 series consists of low-cost, high-efficiency DC-DC buck regulators utilizing surface-mount technology for automated manufacturing. These non-isolated modules provide regulated single outputs ranging from 1.2V to 15V DC. Features include adjustable output voltage with ±10% trimming, remote On/Off control, and full protection against short circuits. They operate over a wide input range, do not require heatsinks, and achieve efficiencies up to 96%. Suitable for lightweight, reliable power conversion with minimal electromagnetic interference, they meet Class B emission standards. Capable of full load operation up to +65°C ambient temperature.
XP POWER STS1024S6V5 DC-DC Buck Regulator Specifications:
- Input Voltage Range: 3.0-36.0V DC
- Output Voltage: 1.2V to 15V DC (adjustable with trim +10%)
- Output Current: 1A
- Efficiency: Up to 96%
- Operating Temperature: -40°C to +105°C
- Full load operation up to +65°C
- Package: SMD-10 (Surface-mount), 0.60 x 0.47 x 0.15 inches (15.20 x 11.80 x 3.6 mm)
- Isolation: Non-isolated
- Protection: Short-circuit protection, overcurrent protection
- Features: Remote On/Off, voltage trim, no heatsink required
- EMI: Meets Class B conducted & radiated emission standards with external components
Buy the Buy XP Power DC-DC Buck Regulator Part Number STS1024S6V5 Online
Order the XP Power DC-DC Buck Regulator online today to ensure reliable and efficient power conversion for your applications. This high-performance module features adjustable output from 1.2V to 15V, with up to 96% efficiency, operating over a wide input range of 3.0V to 36V. Its compact SMD package, full short-circuit protection, and no heatsink requirement make it ideal for space-constrained designs. Enjoy hassle-free installation with remote On/Off control and EMI compliance, backed by a 3-year warranty, delivered directly to your door.
Buy XP Power STS1024S6V5 now and experience unmatched reliability and performance with high efficiency and simple remote on/off control.
Frequently Asked Questions
Where can I buy XP POWER STS1024S6V5?
You can click on the BUY or RFQ button to purchase STS1024S6V5 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part STS1024S6V5?
You can download the STS1024S6V5 datasheet or visit the XP POWER website for support.
Who is the manufacturer of STS1024S6V5?
XP POWER
