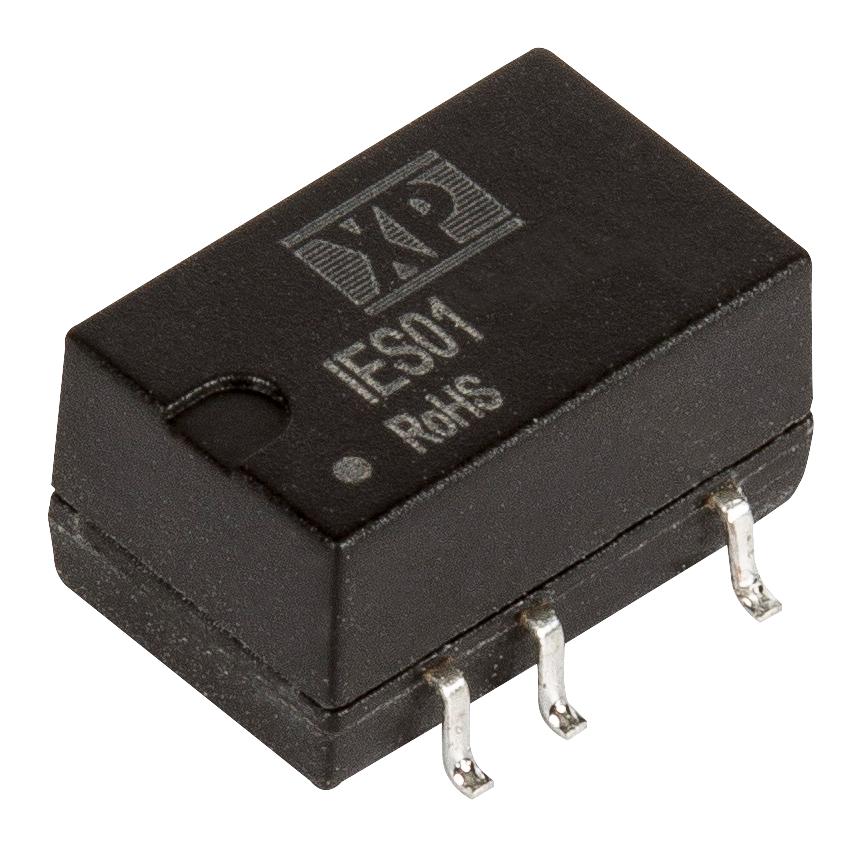

XP POWER IES0105S06 DC-DC Power Module
The IES01 series DC-DC power supply offers efficient voltage isolation for distributed architectures such as analog, digital, data, and relay circuits. It features an unregulated 6V output from a 5V input, with a ±10% input voltage range. The compact SMD8 DIP package includes industry-standard pinout, 1.5kV or 3kV DC isolation, and supports full load operation from -40°C to +105°C. Equipped with short circuit protection, UL62368-1 safety approval, and a 3-year warranty, it ensures reliable performance in demanding industrial environments.
XP POWER IES0105S06 DC-DC Power Module Specifications:
- Input Voltage: 26.4V to 48V DC, with ±10% tolerance
- Output Voltage: 3.3V, 5V, 6V, 9V, 12V, 15V, 24V (unregulated)
- Maximum Output Current: 270mA at 3.3V or 5V, up to 241mA at higher voltages
- Isolation: 1500V or 3000V DC (optional upgrade)
- Dimensions: 0.52 x 0.335 x 0.285 inches (13.2 x 8.5 x 7.25 mm)
- Operating Temperature: -40°C to +105°C, full load at +100°C
- Efficiency: Up to 85%, depending on model
- Short Circuit Protection: Continuous with auto recovery
- Safety Certifications: UL62368-1, CE, UKCA
- Case Material: Flame-retardant black plastic UL94V-0
- Input/Output Capacitors: 10uF to 270uF, with ceramic or electrolytic types
- Switching Frequency: Approx. 270 kHz
- Water Resistance: Non-soaking water wash
- Weight: 0.003 lbs (1.4 g)
Buy the XP Power IESO1 – Reliable DC-DC Power Supply for Industrial Applications
Purchase the XP Power IESO1 series DC-DC power supplies online today and benefit from high efficiency, wide temperature operation, and robust short circuit protection, suitable for demanding industrial environments. With UL safety approval and a three-year warranty, these modules ensure reliable voltage isolation for analog, digital, and data circuits in distributed systems. Their compact size and industry-standard pinout make integration straightforward, providing a trusted power solution for a variety of industrial, instrumentation, and automation applications.
Buy XP Power IESO1 power supplies now and experience unmatched reliability and performance in your industrial systems.
Frequently Asked Questions
Where can I buy XP POWER IES0105S06?
You can click on the BUY or RFQ button to purchase IES0105S06 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IES0105S06?
You can download the IES0105S06 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IES0105S06?
XP POWER
