XP POWER ITU0324D05 Industrial DC-DC Converter
The XP Power ITU series is a compact 3W DC-DC converter offering a cost-effective solution for applications requiring wide input voltage ranges and high efficiency. It features regulated outputs from 3.3V to 30VDC, with a robust DIP8 package providing 1.6kVDC input/output isolation and a 84% efficiency. The module supports remote on/off, short circuit protection, and operates from -40°C to +80°C, with full power up to +70°C. Designed for industrial use, it ensures high reliability with a MTBF over 820,000 hours and complies with EMC standards for low emissions.
XP POWER ITU0324D05 Industrial DC-DC Converter Specifications:
- Power: 3 Watts
- Input Voltage Range: 4.5 to 18V, 9 to 36V, 18 to 75VDC
- Output Voltage: 3.3V to 30VDC (regulated)
- Input/Output Isolation: 1.6kVDC
- Efficiency: Up to 84%
- Temperature Range: -40°C to +80°C (full power up to +70°C)
- Case Size: 0.55 x 0.55 x 0.32 inches (14.0 x 14.0 x 8.1 mm)
- Protection: Short circuit, remote on/off
- MTBF: >820,000 hours (MIL-HDBK-217F)
- Compliance: EN55032 (emissions), CE, UKCA
- Materials: Non-conductive black plastic case
- Ripple & Noise: Approximate 100mV pk-pk
- Transient Response: Recovery within 500μs for 25% load step
- Surge Immunity: 100ms surge voltage, EN61000-4-5
- Independently certified safety standards

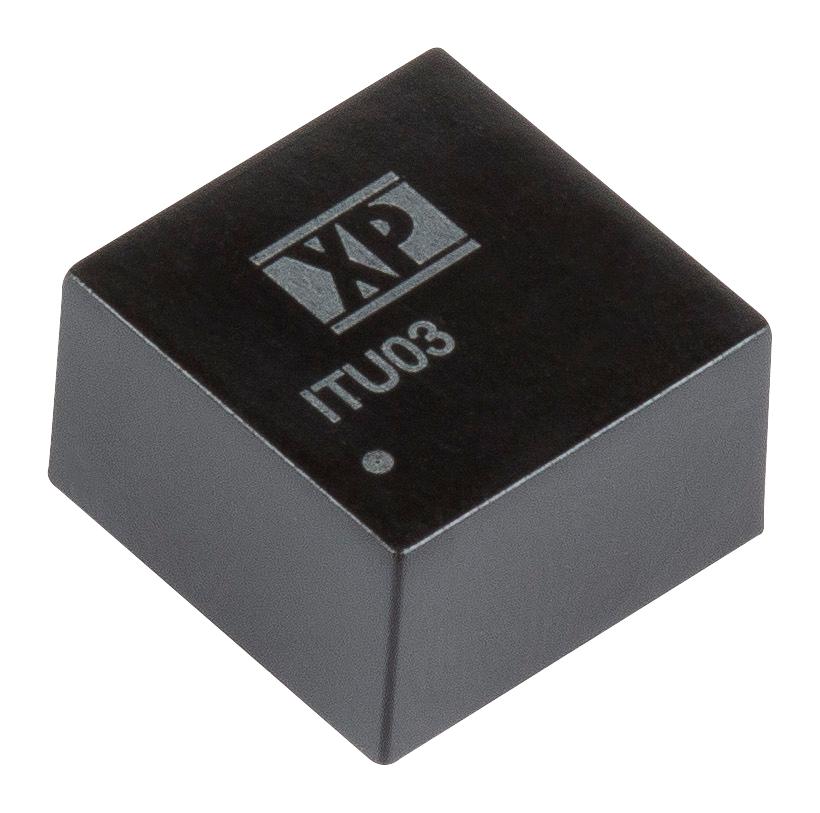

Buy the XP Power Series ITU DC-DC Converter: ITU0324D05
Purchase the XP Power ITU0324D05 online today to ensure a reliable power conversion solution. With a compact design, wide input range, and high efficiency, this 3W converter is perfect for industrial and embedded applications. Enjoy benefits like remote on/off, short circuit protection, and extended operating temperature range. Ordering online guarantees quick delivery, excellent support, and assurance of genuine product quality. Upgrade your system with this durable, high-performance converter for consistent power management in demanding environments.
Buy XP Power ITU0324D05 now and experience unmatched reliability and high efficiency in rugged industrial applications.
Frequently Asked Questions
Where can I buy XP POWER ITU0324D05?
You can click on the BUY or RFQ button to purchase ITU0324D05 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ITU0324D05?
You can download the ITU0324D05 datasheet or visit the XP POWER website for support.
Who is the manufacturer of ITU0324D05?
XP POWER
