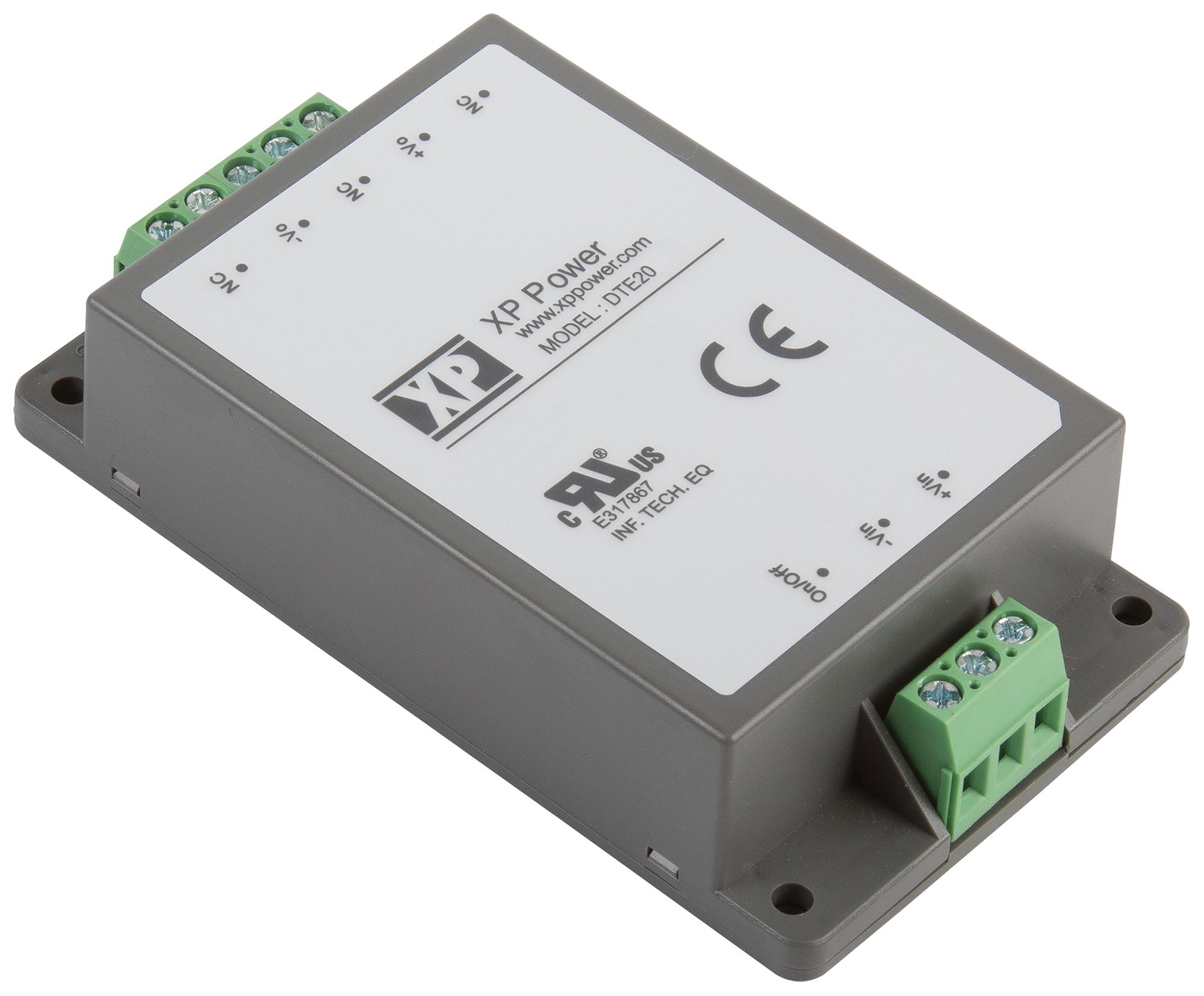

XP POWER DTE2048S24 DC-DC Converter
The DTE20 series is a 20W fully encapsulated, chassis-mount DC-DC converter with a wide 4:1 input voltage range from 24VDC to 48VDC. It features short circuit protection with trip and restart functions, overload protection, and provides an isolation voltage of 2500VDC for excellent load separation. Certified to IEC 60950-1, UL 60950-1, and other safety standards, it operates efficiently with up to 91% efficiency across a wide temperature range of -40°C to 95°C. The converter supports remote on/off control, built-in ‘power good’ indicator, and complies with EN55022 Conducted Level A emissions. Its rugged design makes it suitable for industrial and commercial power management applications.
XP POWER DTE2048S24 DC-DC Converter Specifications:
- Input Voltage Range: 24VDC to 48VDC with 4:1 ratio
- Output Power: 20 Watts
- Output Voltage: 24V or 48V
- Output Current: 0.835 A at 24V, 0.375 A at 48V
- Efficiency: Up to 91%
- Isolation Voltage: 2.5kVDC
- Operating Temperature: -40°C to +95°C
- Storage Temperature: -50°C to +125°C
- Humidity: 5-95% RH non-condensing
- Dimensions: 3.78 x 2.13 x 0.92 inches (96.0 x 54.0 x 23.3 mm)
- Protection: Short circuit, overload, input undervoltage
- Compliance: IEC 60950-1, UL 60950-1, EN55022 class A
- Remote on/off control included
- Full power operation up to 80°C
Buy the XP Power Series DTE20 48V DC-DC Converter: DTE2048S24
Purchase the XP Power DTE20 Series DC-DC converter online today and ensure your industrial power systems operate reliably and efficiently. With a durable fully encapsulated design, wide input voltage range from 24V to 48VDC, and a high efficiency of up to 91%, this 20W power module provides excellent load regulation, remote on/off control, and robust safety features including 2.5kVDC isolation. Certified to international safety standards IEC 60950-1 and UL 60950-1, and compliant with EN55022 EMI regulations, it is suitable for demanding industrial and commercial applications ensuring dependable performance in harsh environments.
Order your XP Power Series DTE20 48V DC-DC Converter today and give your industrial projects reliable power conversion with proven safety and efficiency.
