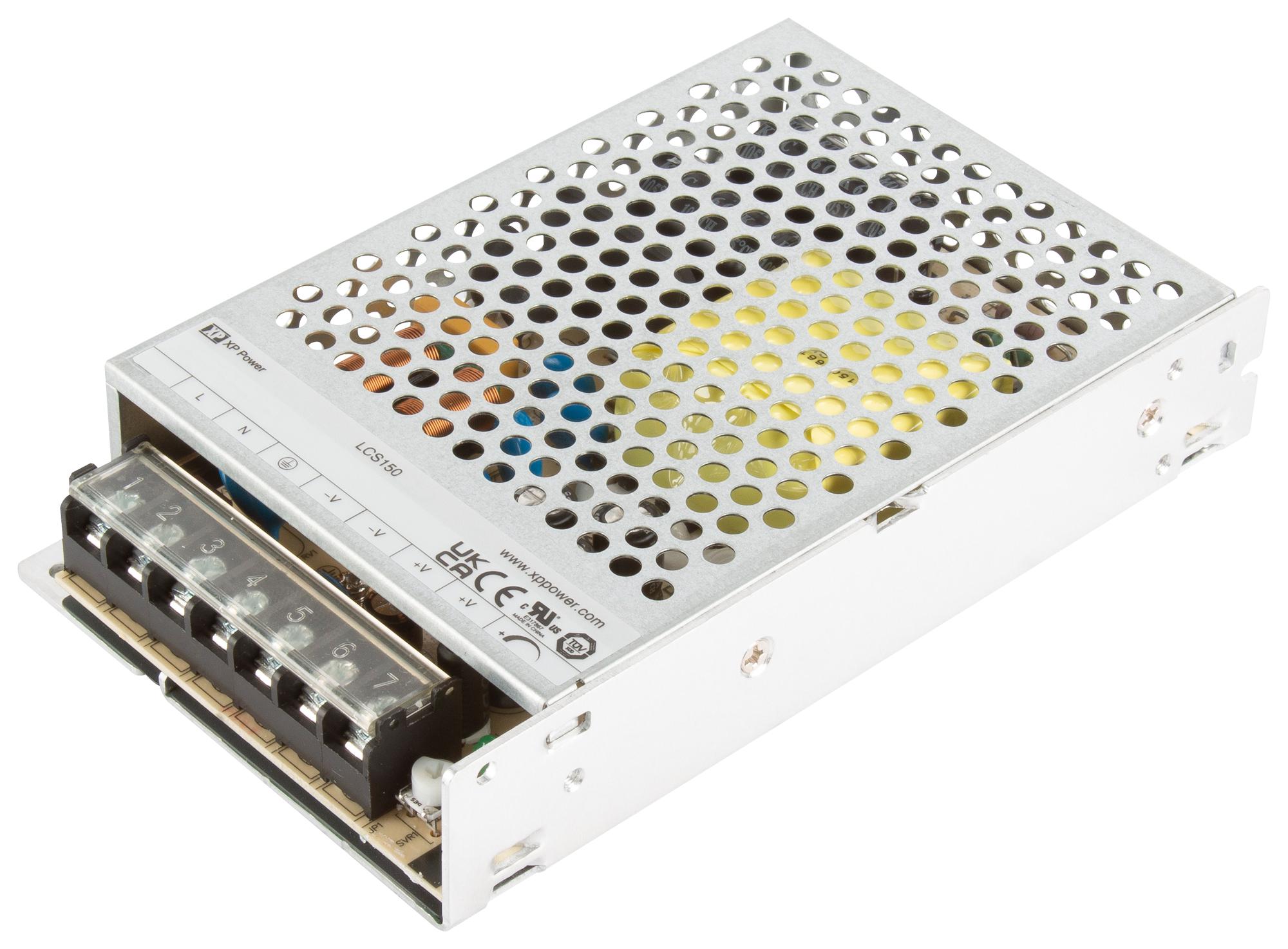

XP POWER LCS150US24 Power Supply
The LCS series of regulated output convection-cooled AC-DC power supplies offers a cost-effective solution for industrial electronics and technological applications. These 150W power supplies feature adjustable output voltage, an indicator LED for power status, low standby power consumption, and comprehensive protection including short circuit, overcurrent, and overvoltage protections. They are suitable for auxiliary power sources, security systems, lighting control, smart home and office systems, as well as ticketing and vending applications. The units are convection-cooled, approved for ITE, industrial, and household use, and include an integrated connector cover. They comply with Class B conducted and radiated emissions standards, operate within an input voltage range of 85-264VAC, and withstand a 300VAC surge for 5 seconds. Their operating temperature range spans from -30°C to +70°C, and they come with a 3-year warranty.
XP POWER LCS150US24 Power Supply Specifications:
- Output Power: 150W
- Input Voltage Range: 85-264VAC
- Surge Withstand Voltage: 300VAC for 5 seconds
- Output Voltages: from 12V to 48VDC
- Efficiency: up to 89%
- Operating Temperature: -30°C to +70°C
- Dimensions: 6.26 x 3.82 x 1.18 inches (159.0 x 97.0 x 30.0 mm)
- Ripple & Noise: max 200mV pk-pk
- Protection: Short circuit, overvoltage, overload
- Certifications: ITE, industrial & household approvals, Class B emissions
- Cooling: Convection-cooled
- Warranty: 3 years
Buy the XP Power LCS150US24 – Reliable AC-DC Power Supply for Industrial Applications
Order the XP Power LCS150US24 online today to ensure your industrial or household systems operate seamlessly with this efficient, convection-cooled power supply. Featuring adjustable voltage, robust protection features, and energy-efficient performance, it’s perfect for security, lighting, control systems, and vending applications. Enjoy a hassle-free purchase with a 3-year warranty, and benefit from fast delivery, expert support, and all-inclusive specifications that guarantee reliable operation across a wide temperature range. Upgrade your systems now with ease and confidence.
Buy XP Power LCS150US24 now and experience reliable 150W convection-cooled power supply with advanced protections for industrial and household use.
Frequently Asked Questions
Where can I buy XP POWER LCS150US24?
You can click on the BUY or RFQ button to purchase LCS150US24 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part LCS150US24?
You can download the LCS150US24 datasheet or visit the XP POWER website for support.
Who is the manufacturer of LCS150US24?
XP POWER
