XP POWER QHL300300S24 DC-DC Converter
The QHL300 series provides a compact 300W DC-DC converter in an industry-standard half-brick package. These modules allow for efficient construction of distributed power systems, including AC front ends, PFC front ends, and battery applications. Features include a regulated single output, 3kV AC isolation, output trim adjustment from -20% to +10%, remote on/off control, overtemperature protection, and an operating temperature range of -40°C to +100°C. The unit dimensions are 2.4 inches x 2.28 inches x 0.5 inches (61.0mm x 57.9mm x 12.7mm).
XP POWER QHL300300S24 DC-DC Converter Specifications:
- Input Voltage Range: 180 - 425 VDC
- Input Current: 19 A at 400VDC full load
- Output Power: 300 Watts
- Output Voltage Options: 5V, 12V, 24V, 28V, 48V
- Output Trim: -20% to +10%
- Isolation: 3kVAC input to output
- Operating Temperature: -40°C to +100°C
- Dimensions: 2.4 x 2.28 x 0.5 inches (61.0 x 57.9 x 12.7 mm)
- Mounting Holes: M3 x 0.5, 4 places
- Efficiency: Up to 90%
- Overtemperature and Overvoltage Protection present
- Remote On/Off control compatible
- Ripple & noise: 150mV to 280mV depending on model
- Case Material: Plastic with aluminum base plate
- Switching Frequency: ~300 kHz
- Ingress Protection: Not specified but suitable for DIN Rail mounting
- Warranty: 3 years

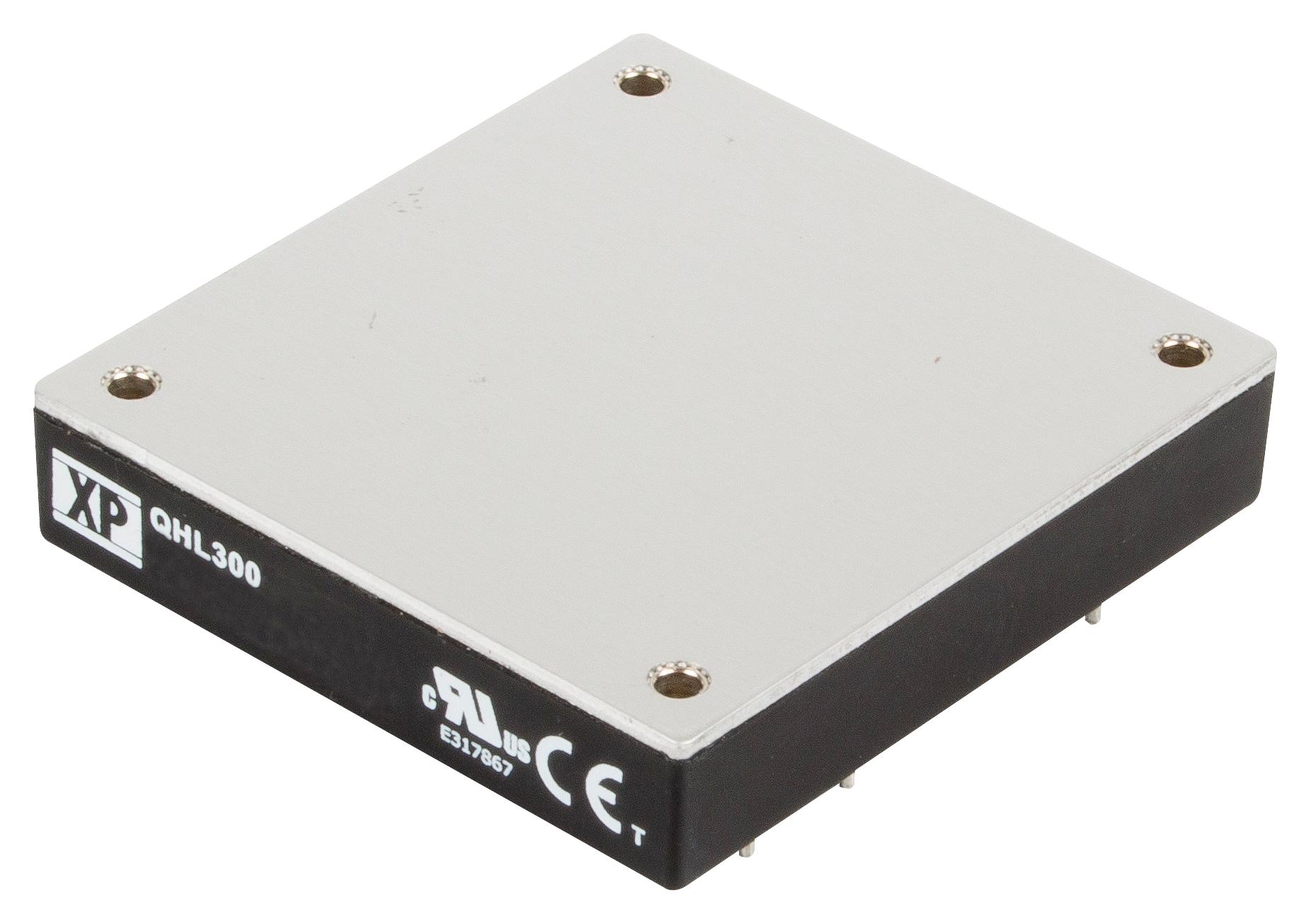

Buy the Buy XP Power QHL300 Series Part Number QHL300300S24 Online
Discover the XP Power QHL300 series, a reliable 300W DC-DC converter designed for industrial applications. Its compact half-brick form factor, 3kV isolation, adjustable output voltage from -20% to +10%, and remote on/off feature make it ideal for distributed power architectures, including AC front ends, PFC modules, and battery systems. It operates efficiently from -40°C to +100°C, ensuring durability across varied environments. Purchase online today to integrate this versatile power solution into your system with confidence, backed by a 3-year warranty.
Get XP Power QHL300300S24 today—built for precision and long-lasting durability in distributed power systems.
Frequently Asked Questions
Where can I buy XP POWER QHL300300S24?
You can click on the BUY or RFQ button to purchase QHL300300S24 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part QHL300300S24?
You can download the QHL300300S24 datasheet or visit the XP POWER website for support.
Who is the manufacturer of QHL300300S24?
XP POWER
