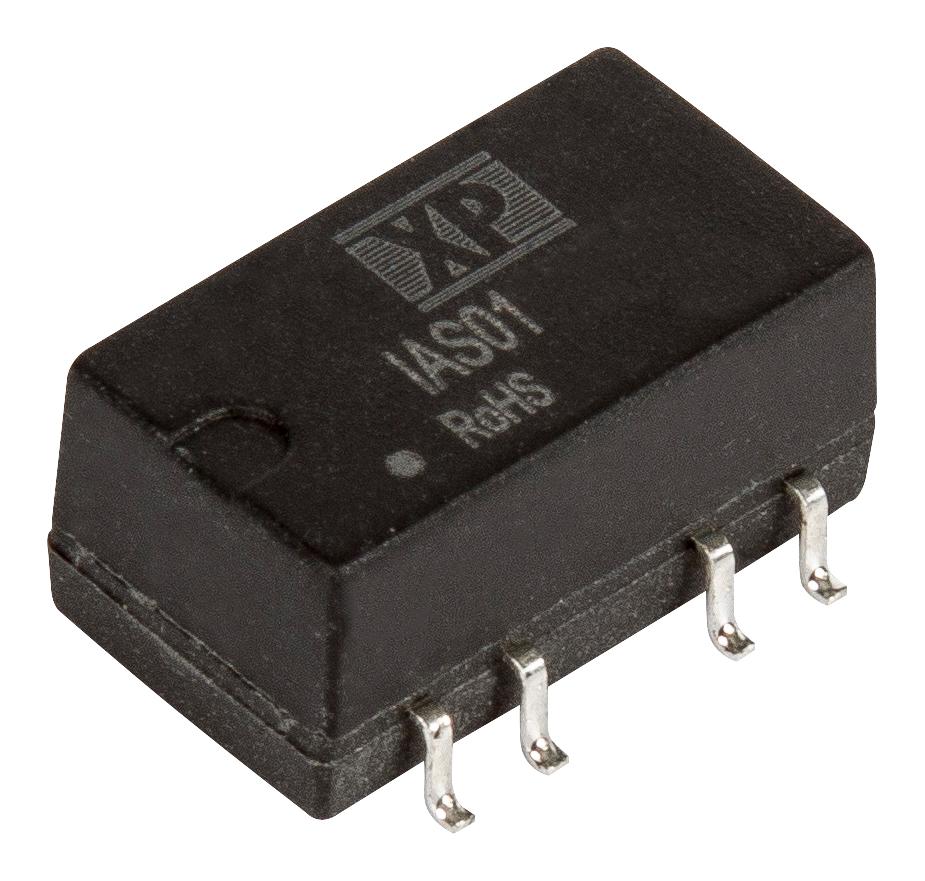

XP POWER IAS0112D09 Dual Output DC-DC Power Supply
The IAS01 series DC-DC power supply provides an ideal solution for isolating voltage rails in distributed power architectures, suitable for industrial electronics, instrumentation, and technology applications. It features unregulated dual outputs of ±9V with a 12V input and ±10% input voltage range. Packaged in an SMD10 DIP format with industry-standard pinout, it offers continuous short circuit protection, UL62368-1 safety approval, and operates from -40°C to +105°C. Full load capability up to +100°C is maintained, with a 3-year warranty ensuring reliability and durability in critical systems.
XP POWER IAS0112D09 Dual Output DC-DC Power Supply Specifications:
- Input Voltage: 12V (±10%) input range
- Output Voltage: ±9V unregulated dual outputs
- Package: SMD10 DIP, industry standard pinout
- Isolation: 1.5kVDC, optional 3kVDC
- Operating Temperature: -40°C to +105°C, full load to +100°C
- Short Circuit Protection: Continuous with auto recovery
- Efficiency: Approximately 78-83%
- Switching Frequency: 260-278 kHz
- Isolation Resistance: >3500 MΩ
- Physical Dimensions: 0.600 x 0.335 x 0.285 inches (15.24 x 8.50 x 7.25 mm)
- Safety Approvals: UL62368-1, CE, UKCA
- Operating Humidity: Non-condensing 95% RH
- Case Material: Flame retardant UL94V-0 plastic
- Weight: 1.45 grams
Buy the Buy XP Power IAS01 Series Part Number IAS0112D09 Online
Order the XP Power IAS0112D09 dual output isolated power supply online today. Designed for industrial electronics and instrumentation, it features unregulated ±9V outputs, UL safety approval, and operates reliably from -40°C to +105°C. Its compact SMD10 DIP package with industry-standard pinout ensures easy integration into complex systems. Equipped with continuous short circuit protection and a 3-year warranty, this power supply guarantees durability and safety for critical applications. Enhance your project efficiency with this reliable, high-quality power solution available for quick online purchase.
Get XP Power IAS0112D09 today—built for precision and long-lasting durability in industrial and instrumentation applications.
Frequently Asked Questions
Where can I buy XP POWER IAS0112D09?
You can click on the BUY or RFQ button to purchase IAS0112D09 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part IAS0112D09?
You can download the IAS0112D09 datasheet or visit the XP POWER website for support.
Who is the manufacturer of IAS0112D09?
XP POWER
