XP POWER RDL100110S15 Railway Power Supply
The RDL100 offers a cost-effective power supply solution designed specifically for railway environments with harsh conditions. It features a standard half-brick form factor, ensuring easy integration. The unit provides a single output with a wide 3:1 input voltage range, suitable for 110 VDC nominal rail applications. It complies with industry standards such as EN50155, EN50121-3-2, and EN45545-2 for fire and smoke safety. Operating temperature ranges from -40°C to +100°C, with an output trim adjustment of ±10%. The power supply includes remote on/off control and a trim function for versatile operation.
XP POWER RDL100110S15 Railway Power Supply Specifications:
- Input Voltage Range: Wide 3:1, covering 110 VDC nominal for rail applications
- Output Power: 100 Watts
- Output Voltage: Single output, models include 12V, 15V, 24V
- Maximum Output Current: 8.30 A for 12V, 7.04 A for 15V, and 4.17 A for 24V
- Efficiency: Up to 87.5%
- Operating Temperature Range: -40°C to +100°C
- Input to Output Isolation: 60 s reinforced insulation, 600 V
- Enclosure: Industry standard half brick format, dimensions 2.4 x 2.28 x 0.5 inches (61.0 x 57.9 x 12.7 mm)
- Mounting Holes: Four for secure installation
- Features: Output trim ±10%, remote on/off, complies with EN50155, EN50121-3-2, EN45545-2 Fire & Smoke standards
- Ripple & Noise: 150-240 mV depending on model
- Failsafe Protection: Overvoltage and thermal protection
- Certifications: UL, EN compliance for railway and industrial standards
- Input Fusing: Recommended 4 A time delay fuse, surge protection via TVS diode

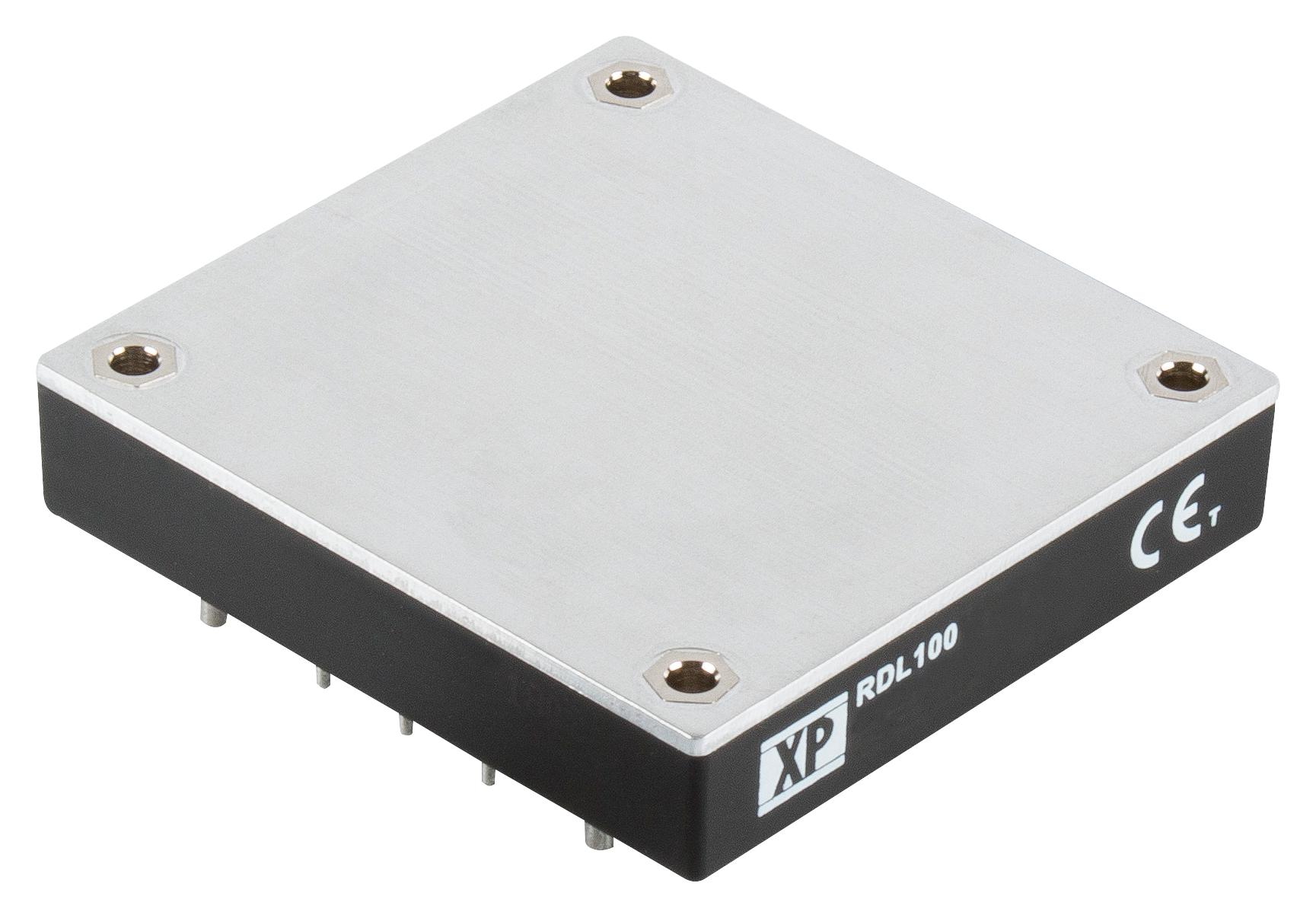

Buy the XP Power Series RDL100 Power Supply: RDL100110S15
Secure your railway and harsh environment projects by purchasing the XP Power RDL100 series power supply online. This 100-watt module offers wide input range, high efficiency, and robust safety standards, including EN50155 and EN45545-2 compliance. Its compact half brick design simplifies installation in limited spaces and features a remote on/off switch, output trim adjustment, and high temperature operation from -40°C to +100°C. Ideal for industrial, transportation, and automation environments requiring reliable, high-performance power conversion.
Buy XP Power RDL100110S15 power supply now and experience unmatched reliability and performance in demanding railway applications.
Frequently Asked Questions
Where can I buy XP POWER RDL100110S15?
You can click on the BUY or RFQ button to purchase RDL100110S15 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part RDL100110S15?
You can download the RDL100110S15 datasheet or visit the XP POWER website for support.
Who is the manufacturer of RDL100110S15?
XP POWER
