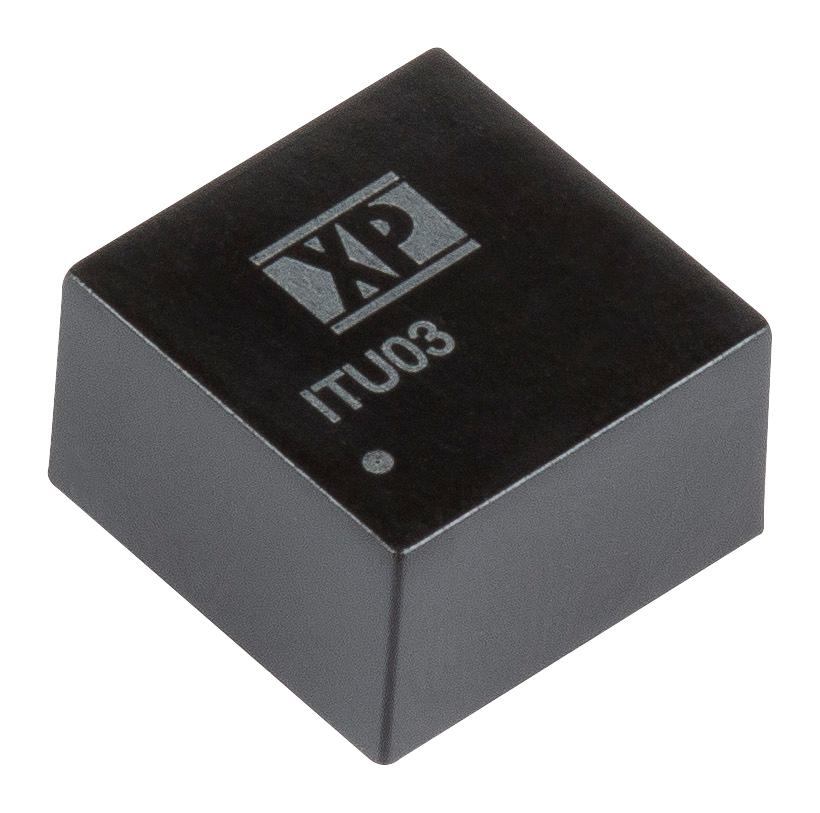

XP POWER ITU0324S3V3 DC-DC Converter
The ITU series offers a compact 3W DC-DC converter with a wide input voltage range from 4.5V to 75V and regulated outputs from 3.3V to 30V. Encapsulated in a robust DIP8 package, it supports remote On/Off, short circuit protection, and operates in extreme temperatures from -40°C to +80°C. It achieves up to 84% efficiency, features 1.6kVDC isolation, and includes certifications like EN55032, making it suitable for industrial automation, control systems, and instrumentation requiring reliable power conversion in constrained spaces.
XP POWER ITU0324S3V3 DC-DC Converter Specifications:
- Input Voltage Range: 4.5V to 75VDC with surge protection up to 100ms
- Output Voltage: 3.3V to 30VDC, regulated with ±1% accuracy
- Output Power: 3 Watts, supports multiple outputs
- Efficiency: Up to 84%, typical around 81-83%
- Isolation: 1.6kVDC between input and output
- Operating Temperature: -40°C to +80°C, full power up to +70°C
- Dimensions: 0.55 x 0.55 x 0.32 inches (14.0 x 14.0 x 8.1mm)
- Protection: Short circuit, thermal shutdown, remote On/Off
- Certification: EN55032, CE, UKCA
- Case Material: Non-conductive black plastic
- MTBF: Over 820,000 hours, MIL-HDBK-217F
- Transient response: Recovery within 500μs under 25% load step
- Ripple & Noise: Approximate, within specified limits
- Compliance: EMI, conducted emissions standard EN55032 Class A
Buy the XP Power ITU0324S3V3 – Reliable DC-DC Converter for Industrial Applications
Discover the high-performance XP Power DC-DC converter designed for demanding industrial environments. With a compact DIP8 package, wide input voltage range, and regulated outputs from 3.3V to 30V, it ensures reliable power delivery. Its high efficiency of up to 84%, robust isolation of 1.6kVDC, and operation across -40°C to +80°C make it ideal for automation, control systems, and instrumentation. Enjoy long MTBF, full protection features, and seamless integration with our easy online purchase options for quick deployment and maintenance.
Buy XP Power ITU0324S3V3 now and experience unmatched reliability and performance in industrial power conversion projects.
Frequently Asked Questions
Where can I buy XP POWER ITU0324S3V3?
You can click on the BUY or RFQ button to purchase ITU0324S3V3 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ITU0324S3V3?
You can download the ITU0324S3V3 datasheet or visit the XP POWER website for support.
Who is the manufacturer of ITU0324S3V3?
XP POWER
