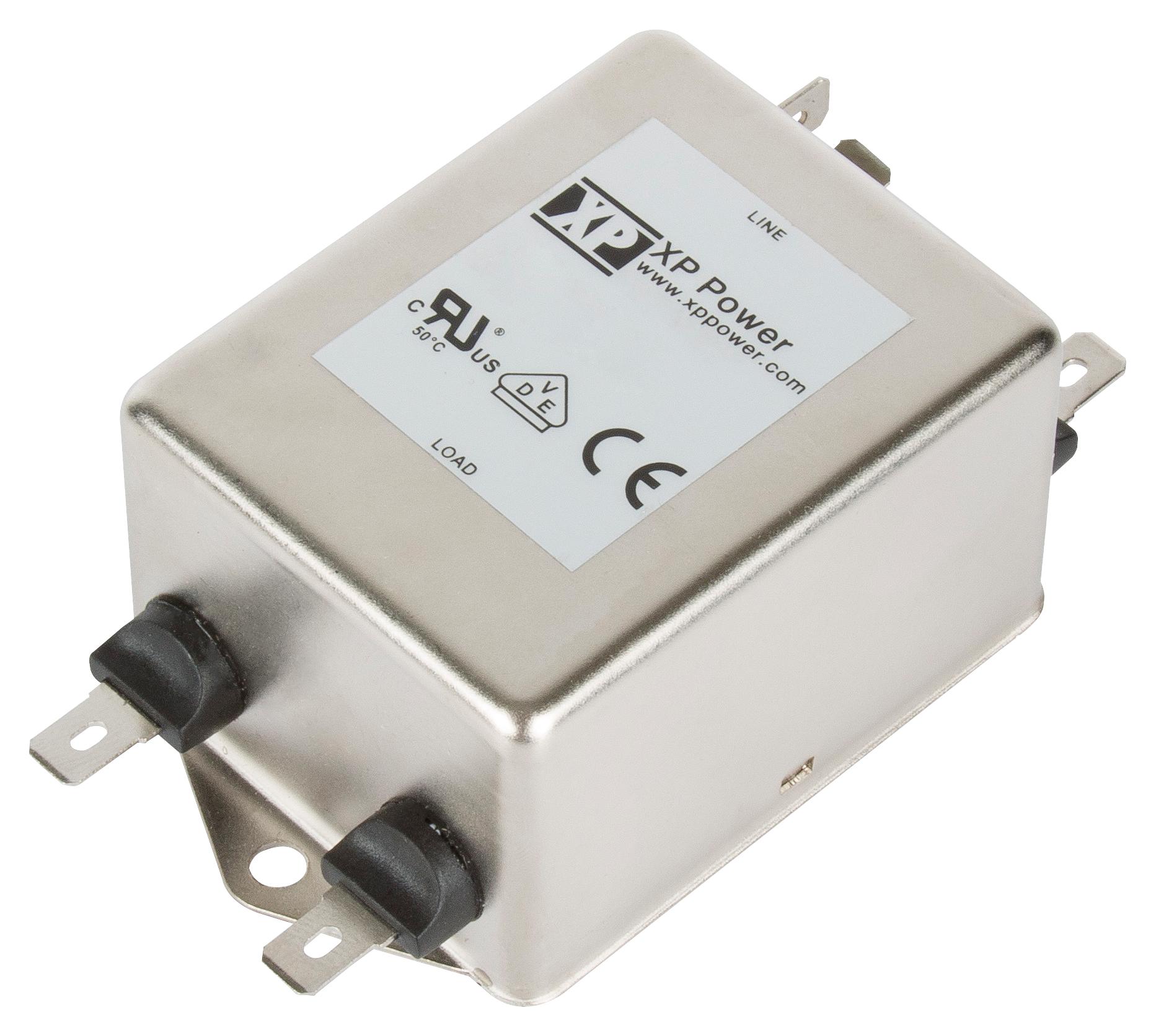

XP POWER FIHAA06C1F EMI Filter
The FIHA high attenuation dual-stage filters are housed in a compact, chassis-mounting metal case designed for ITE applications. They feature dual-stage filtering with a shielded metal body and are equipped with 6.3 x 0.8mm Faston terminals for input and output connections. These filters should be installed as close as possible to the mains entry point to minimize radiated emissions. Suitable for class I appliances, all models include a bleed resistor to safely discharge the filter capacitors when power is disconnected. They comply with safety standards EN60939-2 for passive filters and ANSI/UL1283 for EMI filters, and operate across a wide temperature range from -40°C to +110°C, with full power operation up to +50°C. Available ratings include 1A, 3A, 6A, 10A, 15A, and 20A.
XP POWER FIHAA06C1F EMI Filter Specifications:
- Rated Voltage: 250 VAG
- Input Frequency: 400 Hz
- Rated Current: 6A (model FIHAA06C1F)
- Leakage Current: 0.3mA at 15VAG/250VAG/60Hz
- Earth Leakage Current: 0.6mA
- MTBF: 22,000 hours MIL-HBDK 217F at 40°C
- Flammability Rating: UL94 V-2
- Temperature Range: -40°C to +110°C (full power up to +50°C)
- Protection Class: Suitable for protection Class I appliances
- Dielectric Strength: 1500 VAG
- Terminals: Faston 6.3 x 0.8mm straight
- Capacitance: 0.3pF
- Inductance: 2x 1.4mH (for 6A rating)
- Weight: 125g (for 6A model)
Buy the XP Power Series EMI Filter: FIHAA06C1F
Purchase the XP Power FIHAA06C1F EMI filter online today to ensure superior electromagnetic interference suppression in your electronic systems. Designed for easy mounting in chassis applications, this dual-stage filter offers high attenuation, a shielded metal body, and Faston terminals for quick connection. With ratings up to 6A and broad temperature tolerance, it’s ideal for maintaining compliance with safety standards like EN60939-2 and ANSI/UL1283. Improve your equipment’s EMI performance with this compact, reliable filter designed for demanding environments. Order now for fast delivery and seamless integration.
Buy XP Power FIHAA06C1F now and experience unmatched reliability and performance in EMI filtering for industrial and equipment solutions.
Frequently Asked Questions
Where can I buy XP POWER FIHAA06C1F?
You can click on the BUY or RFQ button to purchase FIHAA06C1F from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part FIHAA06C1F?
You can download the FIHAA06C1F datasheet or visit the XP POWER website for support.
Who is the manufacturer of FIHAA06C1F?
XP POWER
