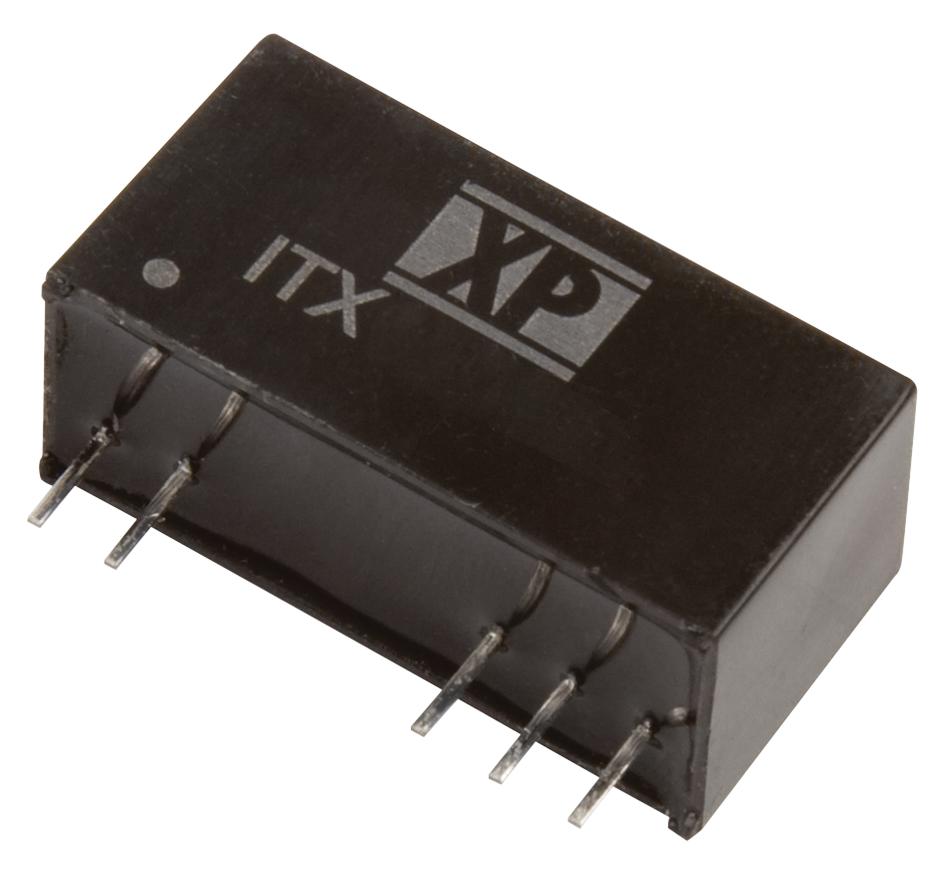

XP POWER ITX1212S DC-DC Converter
The ITX series is an isolated 6W DC-DC converter featuring a fully regulated output with options for single or dual outputs. It supports a 2:1 input voltage range, offers 1500VDC isolation, and is housed in a SIP8 plastic case. The operating temperature range is from -40°C to 90°C, making it suitable for demanding industrial applications such as sensing and instrumentation. With high efficiency, remote control options, and optional high isolation versions, this converter ensures reliable performance in harsh environments, ideal for industrial automation and control systems.
XP POWER ITX1212S DC-DC Converter Specifications:
- Power: 6 Watts
- Input Voltage Range: 9-36 VDC
- Output Voltage: 3.3V, 5V, 12V, 15V, 24V, 48V (optional)
- Output Current: up to 1300 mA
- Isolation Voltage: 1500 VDC (optional 3000 VDC with suffix -H)
- Operating Temperature: -40°C to +90°C
- Housing: SIP8 plastic case
- Dimensions: 0.86 x 0.44 x 0.36 inches (21.85 x 11.1 x 9.2 mm)
- Efficiency: Up to 77%
- Remote Control: Available with suffix -R
- Surge & Ripple: 30 mA pk-pk reflected ripple; 75 mV pk-pk noise
- Switching Frequency: 15 MHz (oscillates)
- Environmental: Non-condensing humidity up to 95%, natural convection cooling
- Standards: UL60950-1, UL62368-1, CAN/CSA 22.2 No. 60950-1
Buy the XP Power ITX1212S – Reliable DC-DC Converter for Industrial Applications
Secure your industrial power conversion needs with the XP Power ITX1212S DC-DC converter. This compact, 6-watt device offers full regulation, 2:1 input voltage range, and 1500VDC isolation for robust performance in harsh environments. Its SIP8 plastic case ensures durability while operating efficiently from -40°C to 90°C. Ideal for sensing, instrumentation, and automation, it provides reliable power with optional high isolation and remote control features. Purchase online today for seamless integration into your industrial systems.
Buy XP Power ITX1212S now and experience unmatched reliability and high-performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy XP POWER ITX1212S?
You can click on the BUY or RFQ button to purchase ITX1212S from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ITX1212S?
You can download the ITX1212S datasheet or visit the XP POWER website for support.
Who is the manufacturer of ITX1212S?
XP POWER
