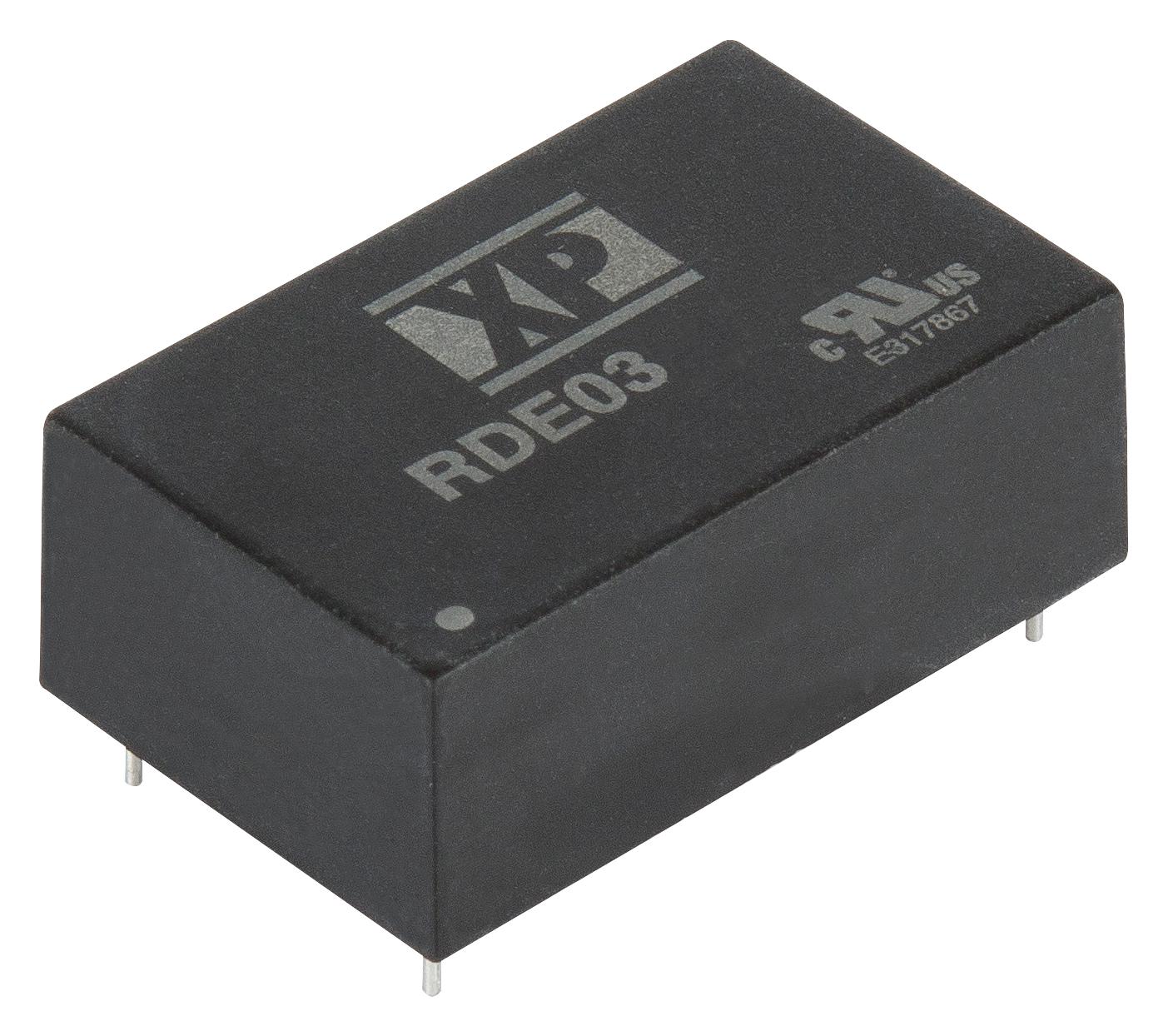

XP POWER RDE0324D12 Railway DC-DC Converter
The RDE03 series provides a compact DC-DC converter solution designed for railway applications. It features regulated single and dual outputs, a wide 4:1 input voltage range supporting 72 VDC and 110 VDC systems, and reinforced insulation with 3000 VAC isolation. The converter operates reliably from -40°C to +105°C and delivers full power up to 80°C. It complies with standards EN50155 and IEC60571, meets EMC standard EN50121-3-2, and does not require an external filter, making it ideal for demanding railway environments.
XP POWER RDE0324D12 Railway DC-DC Converter Specifications:
- Input Voltage Range: 18-75 VDC (48 V nominal), 40-160 VDC (72/110 V nominal)
- Output Voltage: 5V, 12V, 15V, 18V, 30V with regulated outputs
- Output Current: Up to 600 mA depending on model
- Isolation: 3000 VAC reinforced
- Operating Temperature: -40°C to +105°C, full power at 80°C
- Efficiency: Up to 85%
- Input Surge: 100 VDC (24V nominal), 170 VDC (72/110V nominal)
- Ripple & Noise: 50-75 mV max
- Case Material: Non-conductive UL94V-0 plastic
- Dimensions: 1.25 x 0.8 x 0.47 inches (31.8 x 20.3 x 12.0 mm)
- Standards: EN50155, IEC60571, EN50121-3-2
- Protection: Overload, short circuit, undervoltage lockout
- Isolation Resistance: 10^9Ω at 500 VDC
- Switching Frequency: 170/285 kHz
- Moisture: 5%RH, non-condensing
Buy the XP Power RDE0324D12 – Reliable Railway Power Converter for Industrial Applications
Purchase the XP Power RDE0324D12 railway dc-dc converter online today and ensure reliable power conversion for demanding railway systems. This compact, high-efficiency module offers reinforced isolation, wide input range, and full compliance with industry standards like EN50155 and IEC60571. Designed to operate from -40°C to +105°C, it delivers stable regulated outputs without external filters. Perfect for critical industrial and railway environments, the RDE0324D12 guarantees durability, safety, and peak performance, making it an essential choice for engineers and procurement professionals seeking quality and dependability.
Buy XP Power RDE0324D12 now and experience unmatched reliability and performance in railway and industrial power applications.
Frequently Asked Questions
Where can I buy XP POWER RDE0324D12?
You can click on the BUY or RFQ button to purchase RDE0324D12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part RDE0324D12?
You can download the RDE0324D12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of RDE0324D12?
XP POWER
