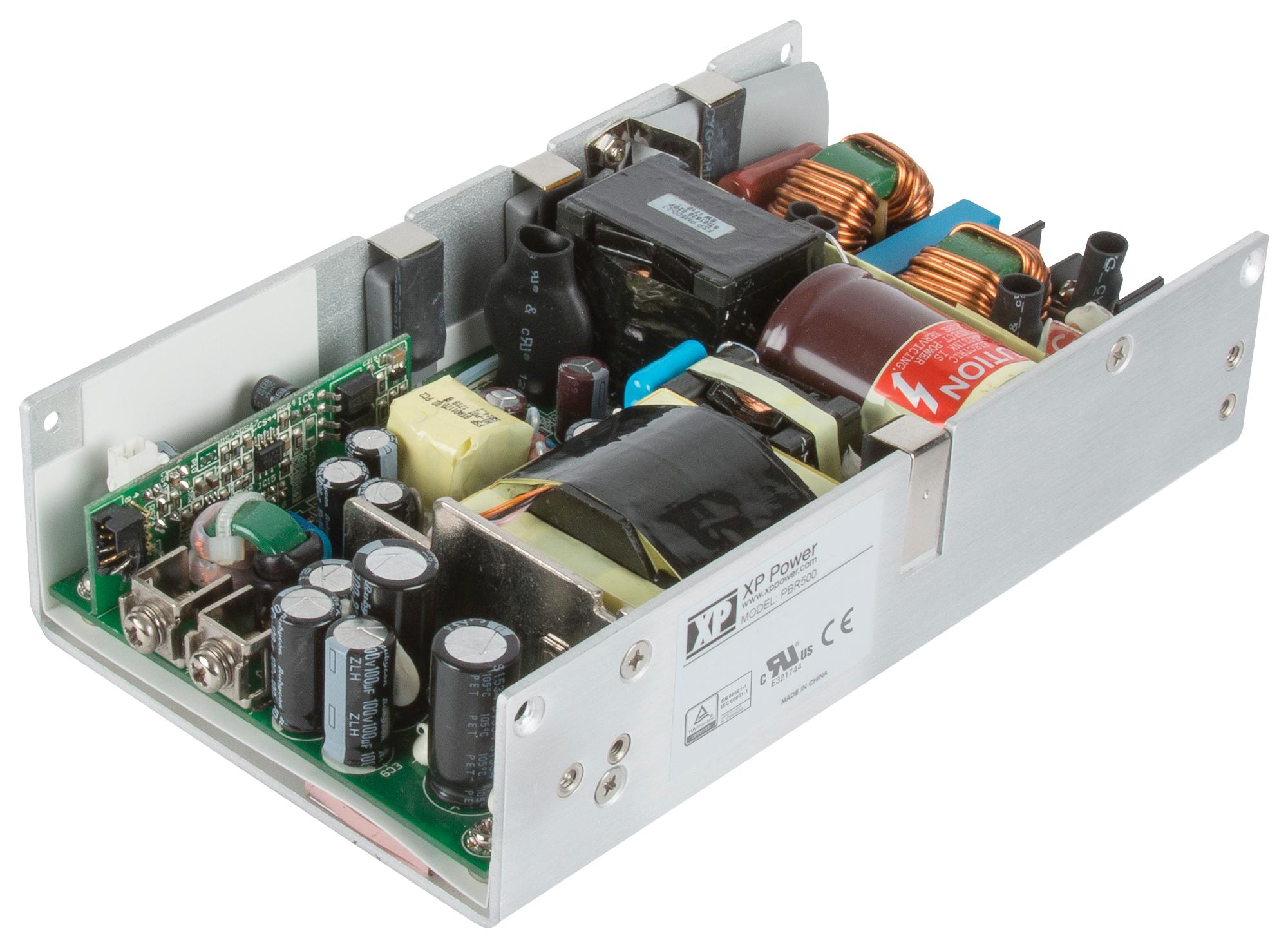

XP POWER PBR500PS48B Power Supply Unit
The PBR500 series of AC to DC switching power supplies features a U-channel design for mechanical support and effective heat dissipation. These supplies are suitable for both industrial and medical applications, including those requiring BF-rated insulation, and can operate at altitudes up to 5,000 meters. They support forced and natural cooling, provide 5V standby and 12V fan outputs, and include features such as AC OK indicators, inhibit, and remote sensing. Compliant with Class B conducted and radiated emission standards, the units measure 7.0 inches by 4.00 inches by 1.70 inches (177.8mm x 101.6mm x 44.5mm). They are ideal for use in medical equipment and industrial systems.
XP POWER PBR500PS48B Power Supply Unit Specifications:
- Input Voltage: 80-264 VAC, Derate to 90% at 85 VAC and 80% at 80 VAC
- Input Frequency: 47-63 Hz
- Input Current: 5.27 A at 116/230 VAC, 60/50 Hz
- Earth Leakage Current: 200-250 A at 264 VAC, 63 Hz
- Output Voltage: 12V to 57V depending on model
- Output Power: 350W (convection cooled), 450-500W (forced cooled)
- Ripple & Noise: Max 120-280 mV pk-pk at 20 MHz bandwidth
- Overvoltage Protection: 112-140%, Latching
- Overcurrent Protection: 115-140%, Trip & restart
- Operating Temperature: -10°C to +70°C (derates at higher temps)
- Efficiency: Approximately 90% at full load
- Dimensions: 7.0 x 4.00 x 1.70 inches (177.8 x 101.6 x 44.5 mm)
- Weight: Approx 1.0 - 1.14 kg
- Certifications: CE, UL60601-1, CSA 622.2, EN62368-1
- Additional features: Built-in fan, remote sense, inhibit and Power OK signals
Buy the XP Power PBR500 – Reliable Power Supply for Industrial Applications
Secure your operational efficiency today by purchasing the PBR500 series power supply online. Designed for demanding industrial and medical applications, these units offer high power output, excellent thermal management, and reliability. With features like remote sensing, inhibit, and Power OK signals, they ensure stable operation and easy integration. The compact U-channel design provides optimal heat sinking and mechanical support, making installation straightforward. Don’t miss out—order now and ensure continuous power in your critical systems with trusted quality from XP Power.
Buy XP Power PBR500 now and experience unmatched reliability and high performance in industrial and medical systems.
Frequently Asked Questions
Where can I buy XP POWER PBR500PS48B?
You can click on the BUY or RFQ button to purchase PBR500PS48B from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part PBR500PS48B?
You can download the PBR500PS48B datasheet or visit the XP POWER website for support.
Who is the manufacturer of PBR500PS48B?
XP POWER
