XP POWER JCA1012D03 Industrial Power Supply
The JCA10 series power supply modules feature compact 1.0 x 0.8-inch metal packages, providing reliable single and dual outputs with wide 2:1 input ranges and high efficiency. Designed with UL, CB, and TUV approvals, these models offer 1500 VDC isolation, -40°C to +100°C operating temperature, and a switching frequency of 300 kHz. Suitable for industrial applications, they include features like auto-recovery short circuit protection, overvoltage protection, and input Pi filters conforming to EN55022 Level A. Ideal for demanding environments, these power supplies ensure stable operation with low ripple and noise within a rugged, convection-cooled case.
XP POWER JCA1012D03 Industrial Power Supply Specifications:
- Input Voltage Range: 4.5-9.0 VDC, 9-18 VDC, 18-36 VDC, 36-75 VDC
- Input Current: 80 mA at 5V input, 30 mA at other models
- Ripple & Noise: 50 mV pk-pk, 20 MHz bandwidth
- Efficiency: Up to 85-90%
- Isolation: 1500 VDC input to output, 500 VDC input/output to case
- Operating Temperature: -40 °C to +100 °C
- Start Up Delay: 30 ms maximum
- Start Up Rise Time: 3.5 ms typical
- Switching Frequency: 300 kHz
- Power Density: 31.25 W/in²
- MTBF: Over 950,000 hours at 25°C
- Environmental: Convection cooled, humidity up to 95% RH non-condensing
- Safety & EMC: Complies with IEC62368-1, EN62368-1, UL62368-1, and EN55022 Level A/B
- Protection: Continuous short circuit, overcurrent at 150%, overvoltage at 150%

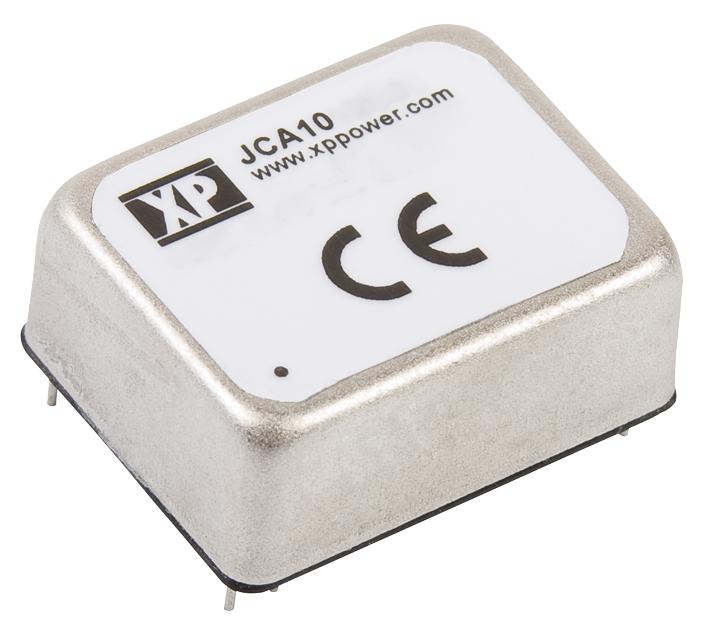

Buy the Buy Industrial Power Supply Part Number JCA1012D03 Online
Secure your JCA1012D03 power supply online today and ensure continuous, reliable power for your industrial control systems. Designed for high performance, these compact modules feature wide input ranges, high efficiency, and robust protections, making them ideal for automation, instrumentation, and harsh environments. With UL, TUV approvals and multiple safety features, they guarantee operational stability and safety. Purchase now to benefit from fast delivery and exceptional support, ensuring seamless integration into your industrial setups and boosting productivity.
Buy JCA1012D03 power supply now and experience unmatched reliability and performance for demanding industrial applications.
Frequently Asked Questions
Where can I buy XP POWER JCA1012D03?
You can click on the BUY or RFQ button to purchase JCA1012D03 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part JCA1012D03?
You can download the JCA1012D03 datasheet or visit the XP POWER website for support.
Who is the manufacturer of JCA1012D03?
XP POWER
