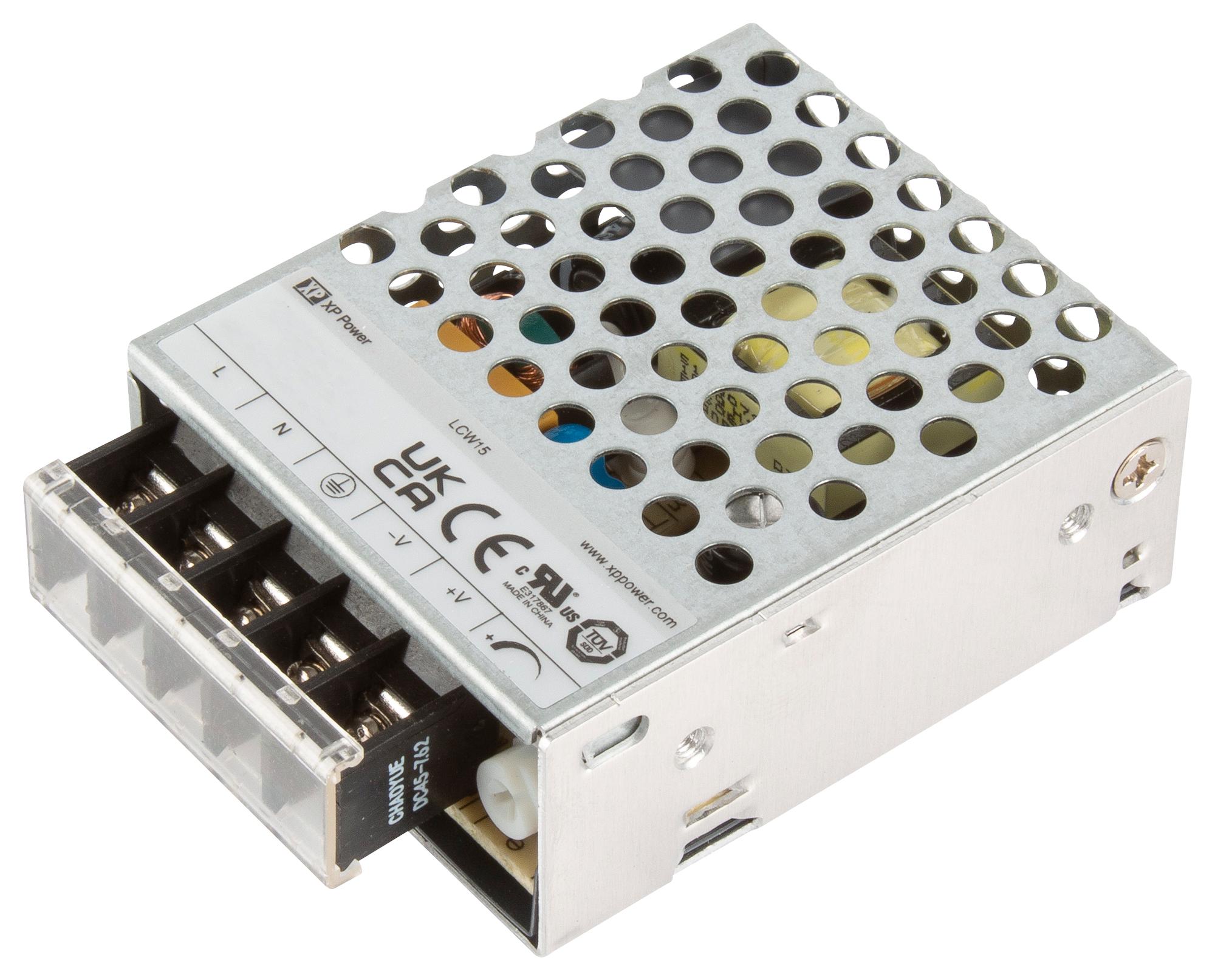

XP POWER LCW15US12 regulated AC DC power supply
The LCW15 series regulated AC to DC power supplies are convection-cooled units designed to deliver 15W of power. They feature a wide input voltage range of 85-305VAC, output voltage adjustment with ±10% trim, and a switching frequency of 65 kHz. The power supplies include integrated connector covers, conformal coating options, and are certified for ITE and industrial applications with UL62368-1, EN62368-1, CE, and UKCA approvals. They offer high efficiency of 82%, low standby power consumption, and protection features such as short circuit, overcurrent, overload, and overvoltage protections. The units operate within a temperature range of -30°C to +70°C, and include a vented aluminum chassis with galvanized steel cover. Additional features include Class B emissions, operating at a switching frequency of 65 kHz, and a three-year warranty.
XP POWER LCW15US12 regulated AC DC power supply Specifications:
- Power Output: 15W
- Input Voltage Range: 85-305VAC
- Output Voltage Adjustment: ±10%
- Efficiency: 82%
- Switching Frequency: 65 kHz
- Operating Temperature: -30°C to +70°C
- Protection: Short circuit, overcurrent, overload, overvoltage
- Certification: UL62368-1, EN62368-1, CE, UKCA
- Dimensions: 2.56" x 2.17" x 0.98" (65.0mm x 55.0mm x 25.0mm)
- Weight: Approx. 90 grams
- Cooling: Natural convection
- Enclosure: Vented aluminum chassis with galvanized steel cover
- Environmental Ratings: Humidity 5-90% RH non-condensing
- Isolation: Input to output 4000VAC
- Warranty: 3 years
Buy the Buy XP Power LCW15US12 Part Number LCW15US12 Online
Secure the XP Power LCW15US12 online today to benefit from a dependable 15W convection-cooled power supply ideal for industrial electronics. Featuring wide input voltage compatibility from 85V to 305VAC, adjustable output, and high efficiency of 82%, it ensures optimal power delivery. Its rugged aluminum chassis and galvanised steel cover provide durability, while protection features safeguard against short circuits, overcurrent, and overvoltage. Perfect for smart home, security, and automation systems, this unit is backed by a 3-year warranty for peace of mind.
Buy XP Power LCW15US12 now and experience unmatched reliability and performance with high efficiency power conversion for industrial and IoT applications.
Frequently Asked Questions
Where can I buy XP POWER LCW15US12?
You can click on the BUY or RFQ button to purchase LCW15US12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part LCW15US12?
You can download the LCW15US12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of LCW15US12?
XP POWER
