XP POWER ITU0324D12 industrial DC-DC Converter

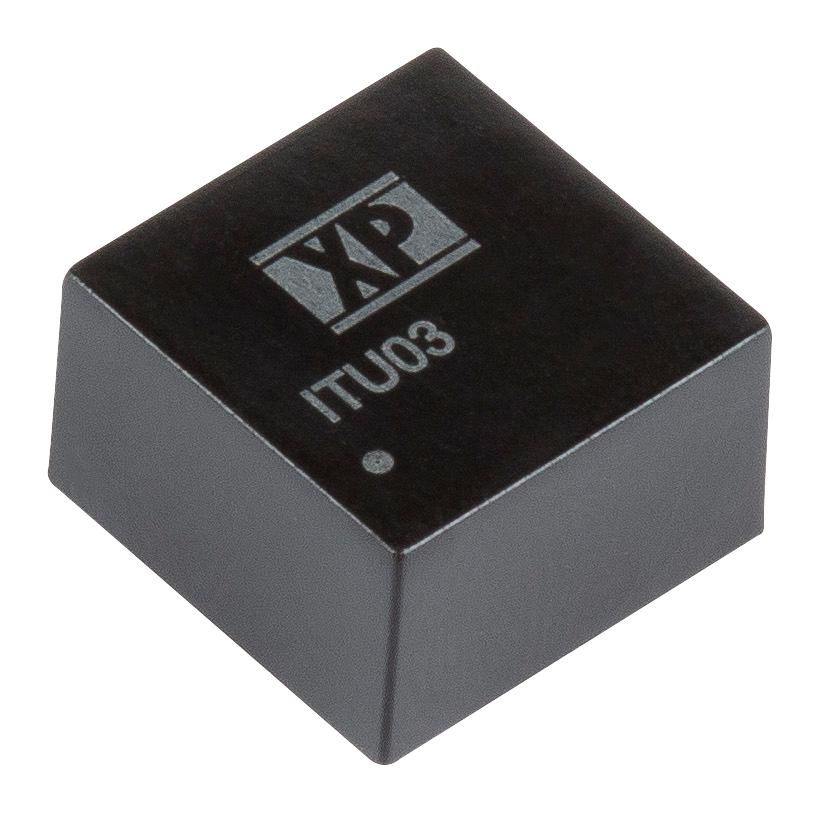

The ITU series is a compact 3W DC-DC converter module designed for industrial applications, offering regulated outputs from 3.3V up to 30V and a wide input range of 4.5 to 75VDC. It features efficient performance with up to 84% efficiency, 1.6kVDC input/output isolation, remote on/off, and short circuit protection. Encapsulated in a durable DIP8 package, it operates reliably from -40°C to +80°C, includes transient response capability, and has a long MTBF exceeding 820,000 hours. Suitable for industrial automation, control systems, and power supply applications, with certifications for safety and EMC compliance.
XP POWER ITU0324D12 industrial DC-DC Converter Specifications:
- Input Voltage Range: 4.5 to 75VDC with surges up to 100ms
- Output Voltage: 3.3V, 5V, 12V, 15V, 24V, 30V options
- Output Current: up to 700mA depending on model
- Input/Output Isolation: 1.6kVDC
- Efficiency: up to 84%
- Operating Temperature: -40°C to +80°C
- Dimensions: 0.55 x 0.55 x 0.32 inches (14.00 x 14.00 x 8.1 mm)
- Case Material: Non-conductive black plastic
- MTBF: >820,000 hours per MIL-HDBK-217F
- Short Circuit Protection: Yes, auto recovery
- Remote On/Off Control: Yes, via pin connection
- Compliance: EN55032, CE, UKCA
- Input Surge Voltage: specified with typical transient limits
- Ripple & Noise: within specified mV pk-pk
- Safety Standards: Meets applicable directives
Buy the XP Power ITU0324U– Reliable Industrial Power Conversion for Control Systems
Purchase the XP Power ITU0324 DC-DC converter today for reliable power regulation in industrial environments. Featuring wide input voltage range, high efficiency up to 84%, and robust construction, it ensures stable operation from -40°C to +80°C. Perfect for automation, control systems, and power supplies, with certifications for safety and EMC compliance. Available for quick online ordering, this compact DIP8 package offers remote on/off, short circuit protection, and long MTBF exceeding 820,000 hours. Enhance your industrial setup with this dependable power module now.
Get XP Power ITU0324 today—built for industrial reliability and long-lasting durability.
Frequently Asked Questions
Where can I buy XP POWER ITU0324D12?
You can click on the BUY or RFQ button to purchase ITU0324D12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ITU0324D12?
You can download the ITU0324D12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of ITU0324D12?
XP POWER
