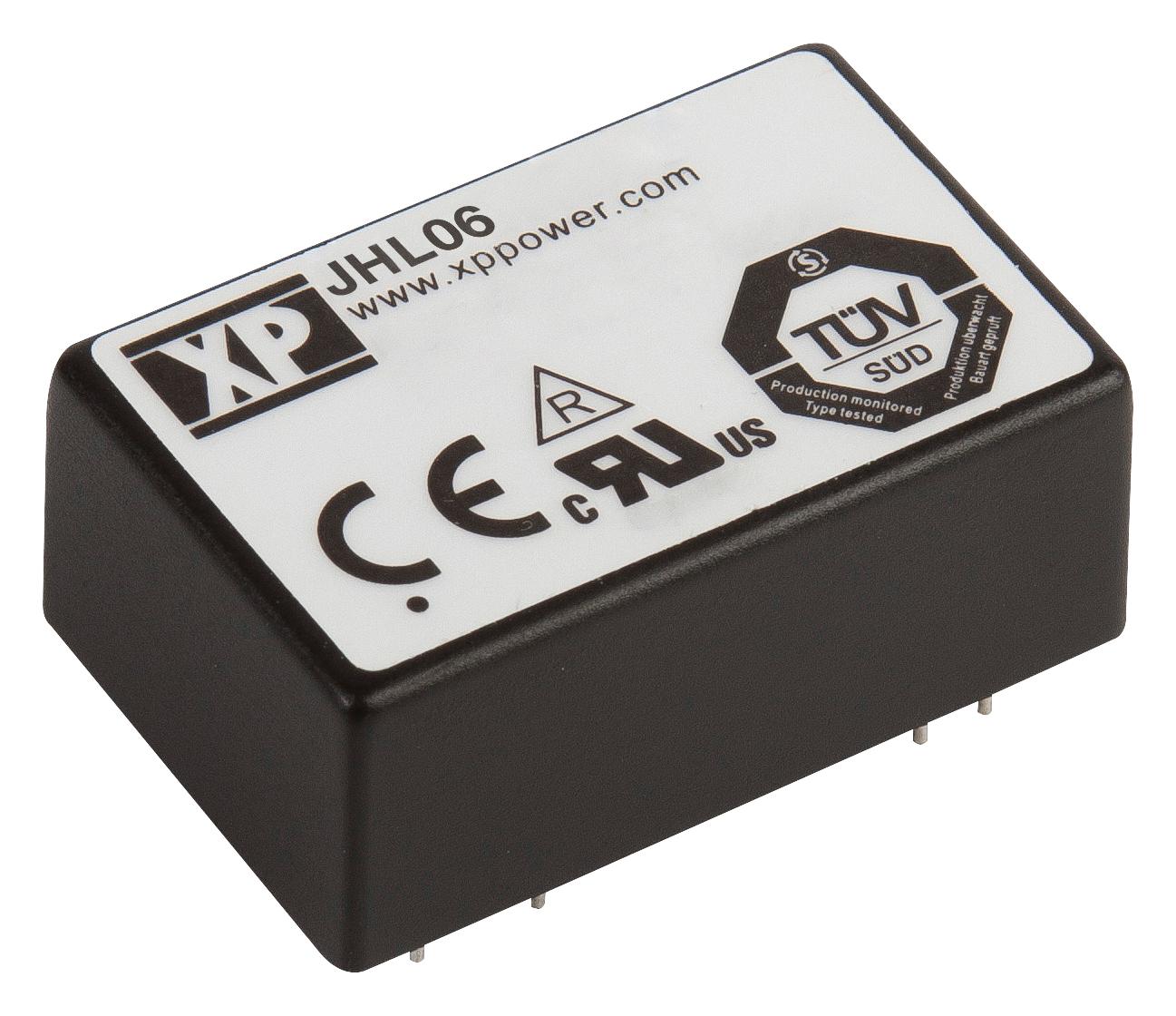

XP POWER JHL0624D15 Medical DC-DC Converter
The JHL06 series DC-DC converters are compact and highly reliable power modules designed for medical applications, providing 6W power output with excellent insulation and safety features. They support input voltages from 10V to 17V or 20V to 30VDC and offer adjustable outputs of 5V, 12V, or 15VDC in single or dual configurations. Certified for IEC 60601-1 and ANSI/AMMI ES60601-1 standards, these converters feature 4000VAC reinforced insulation, 2 x MOPP safety, and very low patient leakage current below 2µA. They meet EN55011 Level A EMC standards, ensuring EMI compliance in medical environments, with robust mechanical design and broad temperature and vibration tolerance for reliable operation.
XP POWER JHL0624D15 Medical DC-DC Converter Specifications:
- Power Output: 6 Watts
- Input Voltage Range: 10-17VDC or 20-30VDC
- Output Voltages: 5V, 12V, 15VDC (adjustable ±10%)
- Input Current Max: 640mA at 5V, 605mA at 10-17V, 605mA at 20-30V
- Isolation Voltage: 4000VAC double/reinforced at 1 minute, 5000VAC for 10ms
- Leakage Current: <2µA
- Efficiency: Up to 85%
- Dimensions: 1.25 x 0.80 x 0.40 inches (31.15 x 20.32 x 10.20 mm)
- Operating Temperature: -20°C to +80°C
- Humidity: Up to 90% RH non-condensing
- Safety Standards: IEC 60601-1, ANSI/AMMI ES60601-1, EN60601-1
- EMC Standards: EN55011 Level A
- Vibration & Shock: Meets EN60068-2-6 & EN60068-2-27
- Cooling: Natural convection
- Switching Frequency: 250 kHz
- Weight: Approx. 20 g
Buy the XP Power Series DC-DC Converter: JHL06 6W
Purchase the XP Power JHL06 series DC-DC converters online today to ensure safe, reliable power conversion for medical applications. With certified safety standards IEC 60601-1 and ANSI/AMMI ES60601-1, reinforced insulation of 4000VAC, low patient leakage current below 2µA, and high efficiency up to 85%, these compact modules deliver exceptional performance in constrained spaces. Designed for operation in sensitive medical environments, the JHL06 series offers adjustable voltage outputs, durability against vibration and shock, and maximum safety compliance—making them the ideal choice for healthcare device manufacturers seeking dependable, high-quality power solutions.
Buy XP Power JHL06 6W medical-grade DC-DC converter now and experience unmatched reliability and performance in critical medical devices.
Frequently Asked Questions
Where can I buy XP POWER JHL0624D15?
You can click on the BUY or RFQ button to purchase JHL0624D15 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part JHL0624D15?
You can download the JHL0624D15 datasheet or visit the XP POWER website for support.
Who is the manufacturer of JHL0624D15?
XP POWER
