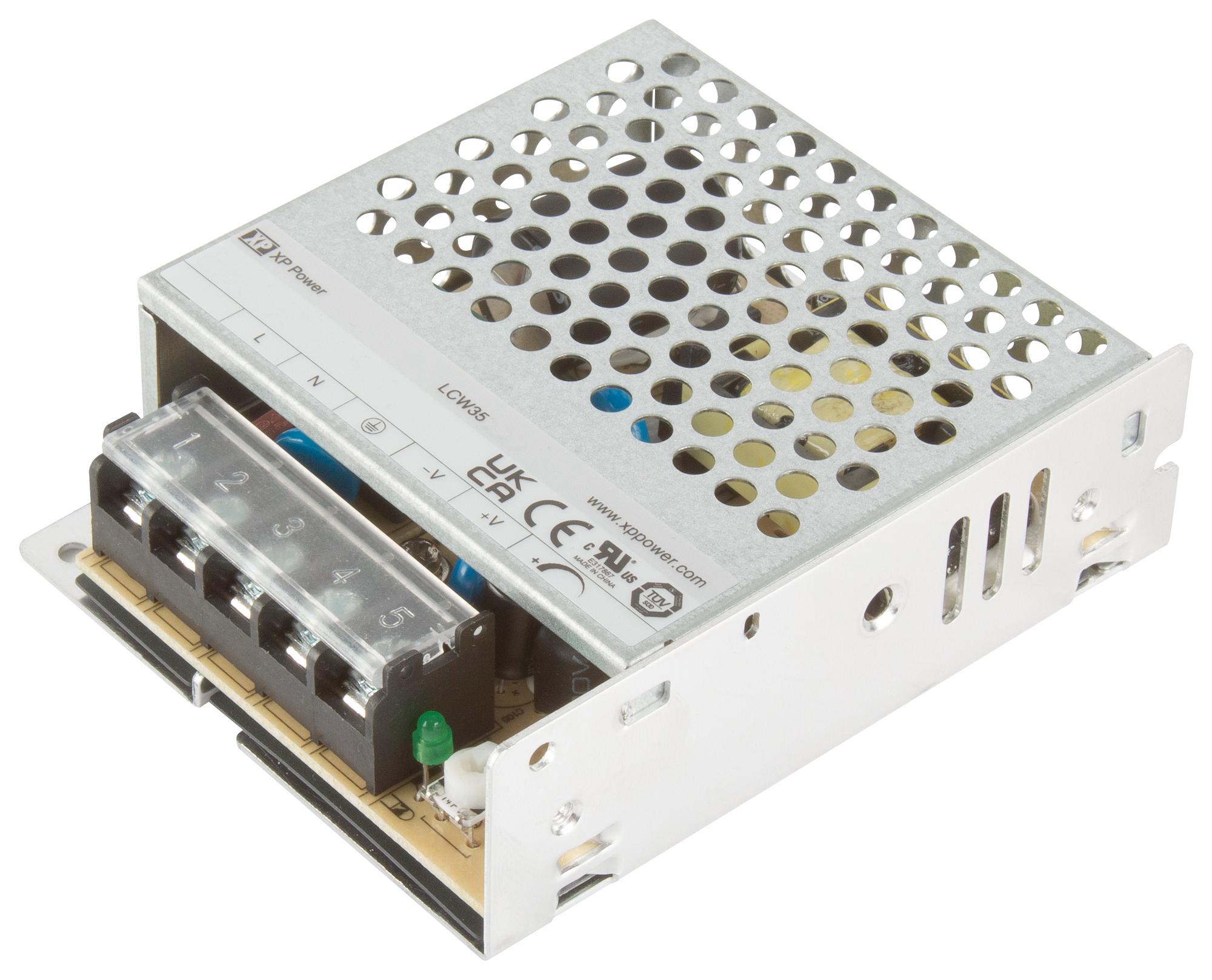

XP POWER LCW35US12 Convection-Cooled Power Supply
The LCW35 series regulated convection-cooled AC to DC power supplies deliver a reliable and efficient power source for industrial electronics, household, and automation systems. With a wide input voltage of 85-305VAC, adjustable output voltage, and an efficiency of up to 88%, these 35W supplies include protections for short circuit, overvoltage, overload, and overcurrent. Their robust aluminum chassis, vented steel cover, and optional conformal coating ensure durability in demanding environments. Suitable for security, lighting, smart home, and vending applications, they operate between -30°C and +70°C with a 3-year warranty, ensuring safety and performance.
XP POWER LCW35US12 Convection-Cooled Power Supply Specifications:
- Input Voltage Range: 85-305VAC
- Input Frequency: 50/60Hz
- Efficiency: up to 88%
- Output Power: 35W
- Output Voltage Adjustment: ±10%
- Output Voltage Options: 5V, 12V, 15V, 24V
- Ripple & Noise (pk-to-pk): 80-150mV depending on model
- Protection: Short circuit, overvoltage, overload, overcurrent
- Operating Temperature: -30°C to +70°C
- Dimensions: approximately 99mm x 82mm x 30mm
- Weight: approximately 0.374kg
- Cooling Method: Natural convection
- Certifications: UL62368-1, EN62368-1, EN60335, EN61558, CE, UKCA
Buy the XP Power LCW35 – Reliable AC-DC Power Supply for Industrial Applications
Purchase the XP Power LCW35 convection-cooled power supply online today for a dependable solution in industrial, security, and smart home applications. With wide input voltage range, high efficiency, comprehensive protections, and a compact design, it ensures safety and durability in demanding environments. Ideal for automation, vending, lighting control, and household electronics, this 35W power supply offers excellent performance, conformal coating options, and a 3-year warranty, making it a trusted choice for engineers and technicians worldwide.
Buy XP Power LCW35 now and experience unmatched reliability and performance in industrial electronics and household systems.
Frequently Asked Questions
Where can I buy XP POWER LCW35US12?
You can click on the BUY or RFQ button to purchase LCW35US12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part LCW35US12?
You can download the LCW35US12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of LCW35US12?
XP POWER
