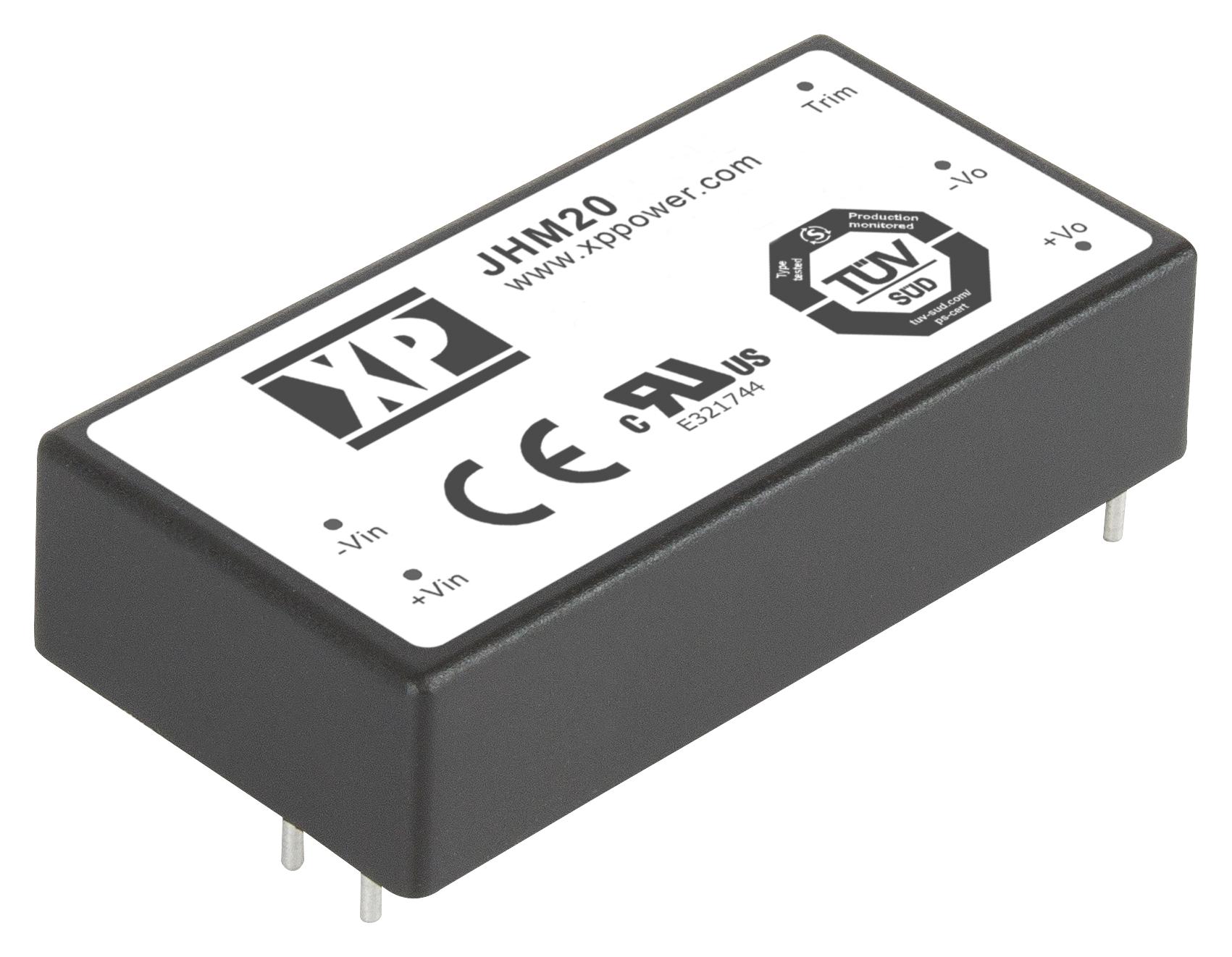

XP POWER JHM2012S15 DC-DC Converter
The JHM20 series DC-DC modules provide a compact, reliable power solution designed for medical applications, meeting IEC60601-1 standards. They offer regulated single and dual outputs from 5V to 30V DC, with adjustable single outputs by ±10%. Featuring a 2:1 input voltage range, these modules are housed in a 2x1 inch footprint for easy PCB integration. They include reinforced 4kVAC isolation, 2 x MOPP at 250VAC, low leakage current of 2.5µA, and support full power output up to +60°C. Certified for medical safety, they ensure long-lasting performance and compliance.
XP POWER JHM2012S15 DC-DC Converter Specifications:
- Input Voltage Range: 9-75 VDC (2:1 ratio)
- Output Voltage: 5V to 30VDC, adjustable ±10%
- Output Current: 3500 mA at 5V, 1750 mA at 12V, 1500 mA at 15V, 1200 mA at 24V
- Efficiency: Up to 88%
- Isolation: Reinforced 4kVAC for 1 min, 2 x MOPP at 250VAC
- Leakage Current: 2.5µA at patient side
- Operating Temperature: -40°C to +80°C, full power up to +60°C
- Dimensions: 2.00 x 1.00 x 0.40 inches (50.8 x 25.4 x 10.2 mm)
- Weight: approximately 0.066 lbs (30 g)
- Certifications: IEC60601-1 3rd Ed., EN55011 Class A, UL, CSA, TUV
- Soldering Profile: Sn/Cu/Ni with peak temperature 260°C
- Input Surge: up to 100 VAC for 3 seconds
- Ripple & Noise: 1% pk-pk over 20 MHz bandwidth
- Switching Frequency: 250 kHz
Buy the Buy XP Power JHM20 Series DC-DC Converter Part Number JHM2012S15 Online
Purchase the XP Power JHM20 series DC-DC converter online today for a compact, medical-grade power solution with reinforced isolation, adjustable outputs, and IEC60601-1 certification. Engineered for high reliability in healthcare environments, this converter offers regulated single and dual outputs from 5V to 30V DC, with a 2:1 input voltage range, low patient leakage current, and proven safety standards. Its small footprint and robust design ensure effortless integration into medical devices, providing dependable performance and peace of mind for critical applications.
Get XP Power JHM2012S15 today—designed for medical-grade reliability, compact size, and optimal performance in healthcare applications.
Frequently Asked Questions
Where can I buy XP POWER JHM2012S15?
You can click on the BUY or RFQ button to purchase JHM2012S15 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part JHM2012S15?
You can download the JHM2012S15 datasheet or visit the XP POWER website for support.
Who is the manufacturer of JHM2012S15?
XP POWER
